XT40 - WINCH CHROMÉ ÉLECTRIQUE 2 VIT - 24 V

Ref XT40EH24#PCH

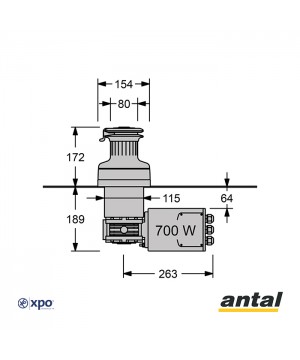

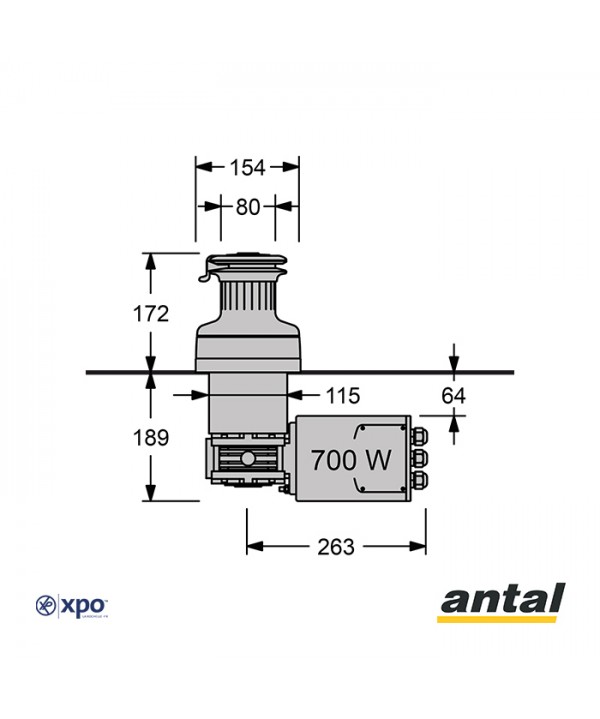

XT40EH24#PCH -Winch électrique Self-tailing - Finition chromée - 2 vitesses - Taille 40 - Puissance 700W - Moteur Horizontal 24Volts

Quantité

favorite Ajouter à ma liste d'envies

Vous devez être connecté à votre compte client

HORIZONTAL DRIVE - MOTOR 700W,12/24/48V → XT40EH, XT44EH, XT48EH

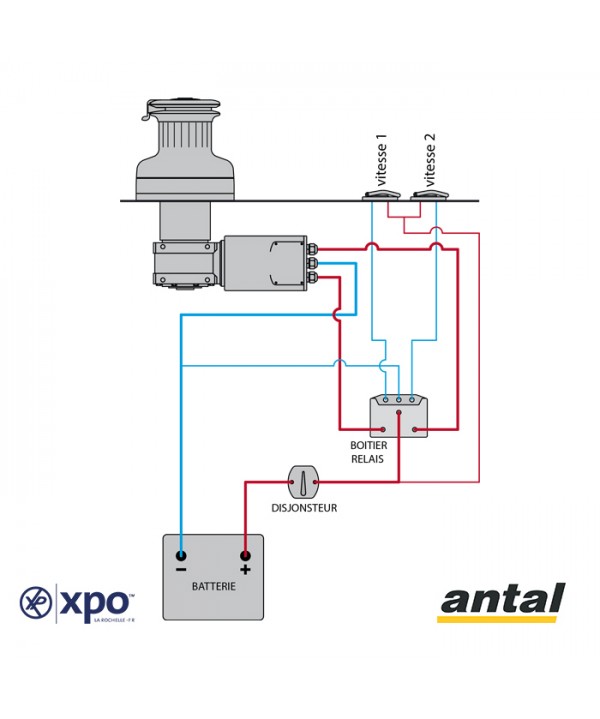

The three MOD. XT40, XT44 and XT48 are powered with a 700 Watt motor, available in 12, 24 and 48 Volt versions. Two switches, one control box and one breaker complete the system.

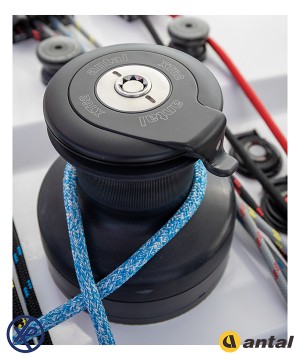

All Antal winch models, from MOD. XT40 to MOD.XT76.3, maxi MOD. XT80.3 and MOD. XT90.3 can be fitted with an electric motor. All electric winches are available with a chromed drum, now also black aluminium drums with a reinforced crown gear (high resistance alloy or A316 S.Steel) are available.
HORIZONTAL AND VERTICAL MOTORS: all the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE: simply insert the handle to disconnect the gearbox-motor unit.
GREATER SAFETY: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle.
GREATER EFFICIENCY: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
SPEED: Electric winches maintain two speeds both in manual use (inverting the direction of rotation of the handle) and in electric use (pressing one of the two control buttons).
It is of fundamental importance to be able to choose the most suitable speed for the manoeuvre that you want to perform; this allows fast recovery of the first part of the manoeuvre and more careful regulationin the final stage. In electric winches the speeds are higher than in manual use.
The recovery speed, indicated in the tables, is measured without a load; in the presence of the maximum load, a speed reduction of up to 30% must be considered.

ELECTRIC WINCHES: FORCE, ABSORPTION AND SPEED

The force of the winch (pulling load), the current absorption (Amp) of the motor and the line recovery speed are related as shown in the diagrams obtained experimentally with load and recovery tests.
These diagrams are available for each model and clearly show the values of the maximum force with the fast and slow gears, the corresponding speed, and maximum electric absorption.

XT40EH24#PCH

Fiche technique

Type accastillage
Winch motorisé
Taille Winch
40
Nbre Vitesses
2
Energie
Electrique
Voltage
12v
Vitesse 1 m/min
12.0
SWL - Charge de travail ( Kg )
800
Orientation moteur
Horizontal
Puissance (Watts)
700
Vitesse 2 m/min
4.5
Finition poupée
Chromée
