Reference 010.14

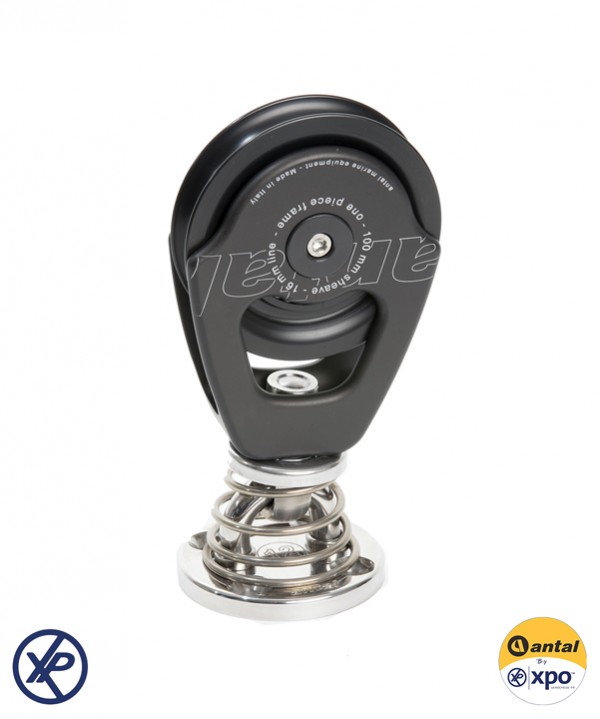

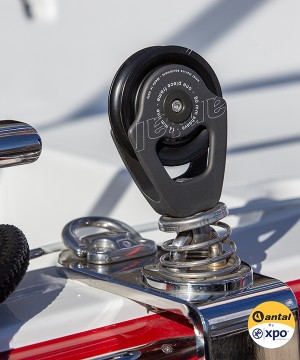

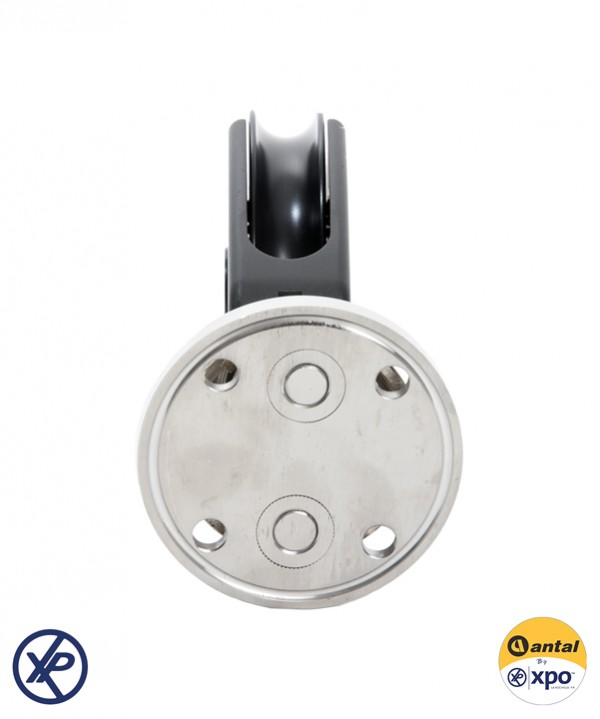

010.14 - simple block on padeye turntable - Type OPF Ø100 - Rope Ø16mm - SWL=3500Kg
One Piece Frame block by Antal, the block without pins or screws, it is a light and strong solution: Simply a hard black anodized and teflon coated aluminium frame in one piece.
A complete range from 50 to 140 mm sheaves in single, double, triple, fiddle, and deck versions, for webbing or shackle connection.
Sizes are based on the range of HR shackles available and on their safe working load (SWL).
Data sheet
010.14 - simple block on padeye turntable - Type OPF Ø100 - Rope Ø16mm - SWL=3500Kg
010.08#J11 - Special 10mm standard head for 190mm car - Ø100 - Rope Ø16mm - SWL=3500Kg
010.01#SHKL - simple block - shackle on swivel - Ø100 - Rope Ø16mm - SWL=3500Kg
010.07#J2 - Special 10mm std-up head for 260mm trolley - Ø100 - Rope Ø16mm - SWL=3500Kg
010.03#SHK - Double block fixe - Manille fixe - Ø100 - Rope Ø16mm - SWL=3500Kg
010.09 - simple block WEB - Type OPF Ø100 - Rope Ø16mm - SWL=3500Kg
010.08#WB - Fiddle block becket - Web - Ø100 - Rope Ø16mm - SWL=3500Kg
010.02#SSHK - simple block becket - snap hook on swivel - Ø100 - Rope Ø16mm - SWL=3500Kg
010.07#J11 - Special 10mm std-up head for 190mm car - Ø100 - Rope Ø16mm - SWL=3500Kg
010.15 - simple block on padeye turntable - screw-on - Type OPF Ø100 - Rope Ø16mm - SWL=3500Kg
010.01#J2 - Special 10mm std-up head for 260mm trolley - Ø100 - Rope Ø16mm - SWL=3500Kg
010.08#J2 - Special 10mm std-up head for 260mm trolley - Ø100 - Rope Ø16mm - SWL=3500Kg
010.07#SSHK - Fiddle block - snap hook on swivel - Ø100 - Rope Ø16mm - SWL=3500Kg
010.02#SHKL - simple block becket - shackle on swivel - Ø100 - Rope Ø16mm - SWL=3500Kg
010.01#SSHK - simple block - snap hook on swivel - Ø100 - Rope Ø16mm - SWL=3500Kg
010.07#SHKL - Fiddle block - shackle on swivel - Ø100 - Rope Ø16mm - SWL=3500Kg
010.02#J11 - Special 10mm std-up head for 190mm trolley - Ø100 - Rope Ø16mm - SWL=3500Kg
