Reference A20401C

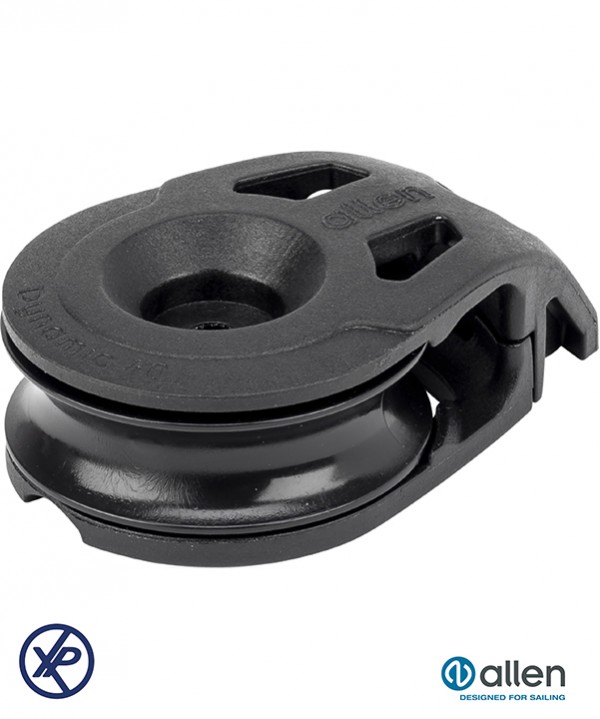

A20401C - DYNAMIC single cheek block - Ø40mm - SWL=225kg
A20401C – 40mm Dynamic Cheek Block | High-Performance Turning Block for Keelboats & Dinghies
The A20401C 40mm Dynamic Cheek Block is built from high-strength, lightweight glass-loaded nylon and combines Allen's renowned dynamic bearing technology to deliver a high-performance block perfectly suited for keelboats and dinghies.
Ideal for use on main, jib and spinnaker sheets on dinghies, as well as keelboat control lines, the A20401C is the perfect low-profile solution for flat surface mounting on any deck layout.
Patented Bearing System – Dynamic Block Technology Dynamic Blocks feature an exclusive patented bearing system using twin rows of stainless-steel ball bearings running on a stainless-steel rail. The ball bearings are caged for further friction reduction, delivering superior load-carrying capacity and outstanding longevity compared to conventional bearing systems on the market.
Cheek Mount – Secure, Snag-Free & Self-Draining The A20401C is designed to be mounted flat to any surface using two fixing screws. Its domed head profile minimises the risk of lines snagging around the block, while two small drainage holes at the central fixing point ensure water can freely escape through the block — keeping it clean and reliable in all conditions
Data sheet
Specific References
A20401C - DYNAMIC single cheek block - Ø40mm - SWL=225kg
A20403B-77 - DYNAMIC triple swivel block - Ø40mm - With A0077 clamp - 5mm shackle - SWL=675kg
A20401B - DYNAMIC single swivel block with becket - Ø40mm - 4mm shackle - SWL=225kg
A2040TII - Simple block DYNAMIC - Ø Sheave 40mm for soft link - MWL=180Kg
A20401BF-77 - DYNAMIC fiddle block with swivel becket - Ø40mm - With A007 clamp - 4mm shackle - SWL=225kg
A20402B - DYNAMIC double swivel becket block - Ø40mm - 5mm shackle - SWL=450kg
CA2040TIIHL - 40mm heavy-duty single block with textile attachment - MWL=340kg
A20401BFHK-77 - DYNAMIC fiddle block with swivel and becket - Ø40mm - With A0077 clamp - With hook - SWL=225kg
A20401S-2030 - DYNAMIC block - 2 linked fixed blocks - Ø40mm and Ø30mm - SWL=140kg
A20401SLZ - DYNAMIC single fixed block - Ø40mm - on shackle and spbecket - SWL=225kg
A20401BFHK - DYNAMIC fiddle block with swivel becket - Ø40mm - with hook - SWL=225kg
A20401HK - DYNAMIC single fixed block - Ø40mm - With hook - SWL=225kg
A20404 - DYNAMIC quadruple swivel block - Ø40mm - 5mm shackle - SWL=900kg
A20402 - DYNAMIC double swivel block - Ø40mm - 5mm shackle - SWL=450kg
