Reference 005.01#SSHK

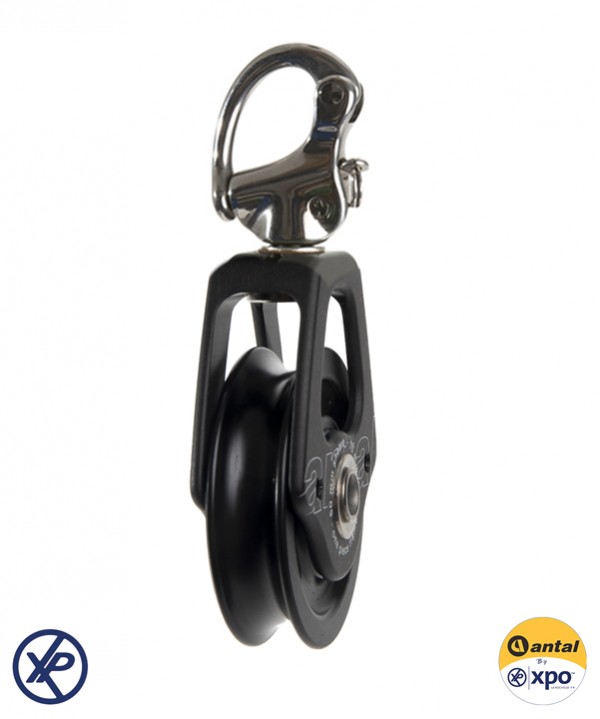

005.01#SSHK - Single block - with snap shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=600Kg
One Piece Frame block by Antal, the block without pins or screws, it is a light and strong solution: Simply a hard black anodized and teflon coated aluminium frame in one piece.
A complete range from 50 to 140 mm sheaves in single, double, triple, fiddle, and deck versions, for webbing or shackle connection.
Sizes are based on the range of HR shackles available and on their safe working load (SWL).

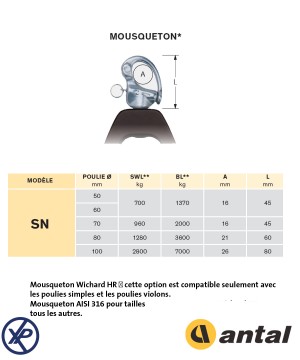

Data sheet
005.01#SSHK - Single block - with snap shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=600Kg
005.05#TC#SSHK - Triple block - with cleat and snap shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=800Kg
005.06#TC#SHKL - Triple block with becket - with wedge cleat and shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=800Kg
005.08#SSHK - Fiddle block with becket - with snap shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=600Kg
005.17 - Fixed lower vertical transmission - Type Opf Ø50x10mm - SWL=600Kg
005.10_C - Single strap block with becket and cleat - Type OPF Ø50 - Rope Ø10mm - SWL=600Kg
005.10 - Single strap block with becket- Type OPF Ø50 - Ø10mm rope - SWL=600Kg
005.02#SSHK - Single ringed block - with snap shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=600Kg
005.03#TC#SSHK - Double block - with cleat and snap shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=800Kg
005.13 - Single block on U-shaped chainplate - Type OPF Ø50 - Rope Ø10mm - SWL=600Kg
005.11 - Simple foot block - Type OPF Ø50 - Rope Ø10mm - SWL=600Kg
005.03#SSHK - Double block - with snap shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=800Kg
005.02#TC#SHKL - Single block with becket - with snap cleat and shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=600Kg
005.23_2A - OPF double halyard deflection blocks with becket - Ø50 fixed vertical
005.05#TC#SHKL - Triple block - with snap cleat and shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=800Kg
005.23_2 - OPF double halyard deflection blocks - Ø50 fixed vertical
005.04#SHKL - Double block with becket - with shackle on swivel - Type OPF Ø50 - Rope Ø10mm - SWL=800Kg
