Reference A2062

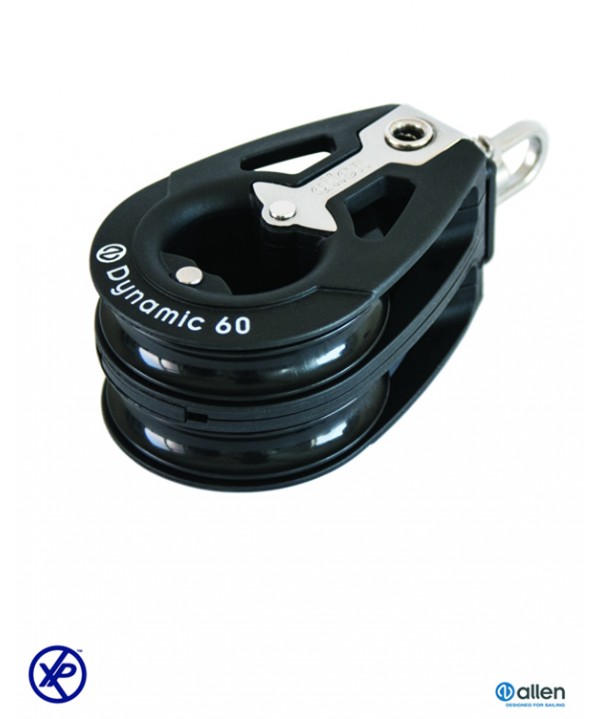

A2062 - DYNAMIC double block - Sheave Ø 60mm - MWL=600kg
The Allen A2062 60mm Dynamic Double Block is a high-performance ball bearing block engineered to eliminate friction and allow rope to run at maximum speed. Designed for keelboat and catamaran sailing, this double block covers the full spectrum of rigging applications — from jib sheet and mainsheet systems to backstay tensioning and everything in between. The A2062 is the ideal choice for any purchase system requiring maximum mechanical advantage with minimal friction, delivering smooth, fast and reliable rope travel under load.
At the heart of the A2062 lies Allen's industry-leading twin-row stainless-steel ball bearing system, running on a stainless-steel rail. This patented design delivers exceptional load-carrying capacity and outstanding long-term durability, outperforming all conventional bearing systems currently available on the market — a decisive advantage when pushing hard in demanding offshore or inshore racing conditions.
The A2062 features a removable swivel lock moulding, offering two distinct modes of operation. When installed, the attachment shackle can be locked in precise 90-degree orientations for fixed-lead applications. When removed, the shackle spins freely for complete rotational versatility — making this block one of the most adaptable double blocks available for competitive sailing.
The large central hole ringot reduces the overall weight of the block while providing a secure, rope-friendly attachment point. Perfect as a tie-off point in cascade systems, purchase arrangements and multi-purchase tackles, the ringot ensures clean and friction-free rope management across even the most complex rigging configurations.
Built for speed, designed for versatility — the Allen A2062 60mm Dynamic Double Block is the definitive high-load purchase block for keelboat and catamaran sailors who demand peak performance from their deck hardware.
Data sheet
Specific References
A2062 - DYNAMIC double block - Sheave Ø 60mm - MWL=600kg
A2060TII - Simple block DYNAMIC - Ø Sheave 60mm for soft link - MWL=700Kg
A2064 - DYNAMIC triple block - 60mm diameter with becket - MWL=600kg
A2067 - DYNAMIC quadruple block - 60mm sheave diameter with becket - MWL=600kg
A2065 - DYNAMIC triple block - 60mm diameter with becket - MWL=600kg
A2063 - DYNAMIC double block - Sheave Ø 60mm with becket - MWL=600kg
A2060C - DYNAMIC single block - Sheave diameter 60mm with flat-to-bridge adapter - MWL=500kg
