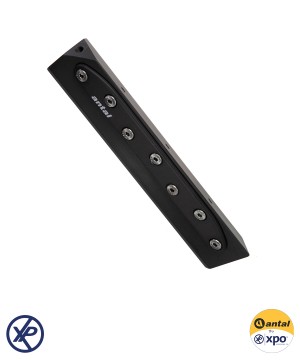

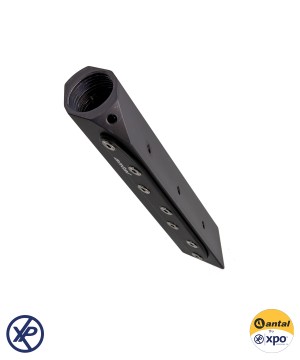

SBR ALUMINIUM BATTEN RECEPTACLE

Reference 609.326

609.326 - Aluminium SBR batten receptacle for round slats with a diameter of 36 - With or without cap (BM00) - for connection with threaded shafts from 10 to 16 mm - Size 250 x 105 mm - Ring D 36

€349.08
Prix public TTC conseillé

Tax included

selection

Quantity

Add to wishlist

You must be logged

ALUMINIUM SBR FOR ROUND BATTENS

Main body and side plates are aluminium made with 6 mm AISI316 screws, the S.Steel A316 cap for the batten car toggle connection is available with different threads.
These SBR receptacles are suitable for boats up to 100 ft.

Reference 609.326#BM00

Data sheet

Fitting type: Round batten receptacle
Weight ( g ): 1050
Longueur Boitier ( mm ): 250
Hauteur boitier ( mm ): 105
Materials: Aluminium
Diamètre latte ( mm ): 36
Type latte: Ronde

Specific References

ean13: 8026740028427

Download

609.326-00_Exploded_View.pdf

Download (582.26KB)

609.326-14_Exploded_View.pdf

Download (708.17KB)

609.326-16_Exploded_View.pdf

Download (708.81KB)

609.326-14.pdf

Download (342.87KB)

609.326-16.pdf

Download (371.9KB)
