Reference 514_E

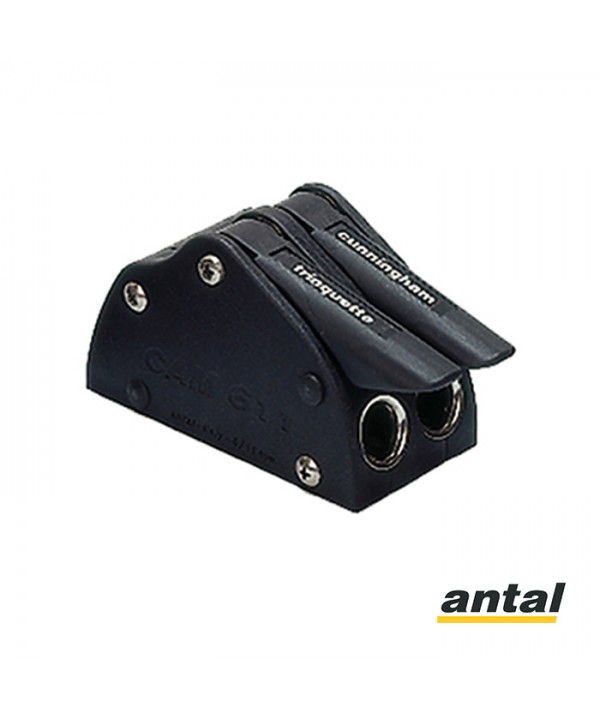

514_E - 69 Stickers for clutches - Anglais
V-GRIP SYSTEM CLUTCHES
Cam 611 for line 6 to 10 mm is available in single, double and triple, as well as horizontal.
Cam 611 has a box structure in UV-resistant resin with steel reinforcements, an extruded aluminium base, wear-resistant bronze cam mechanism, and stainless steel aligning bushing.
The clutch can be completely dismantled for simple maintenance. Line retrieval can be achieved with the lever closed, and the cam mechanism guarantees easy opening even under heavy load.
V-CAM 611 WITH V-CAM
V-Cam 611 is a new model with a V-Cam, for lines from 6 to 8 mm.
This new version supports much higher loads: 400 kg on the 6 mm line and 600 kg on the 8 mm.
V-CAM 611 SILVER
Both Cam 611 and V-Cam 611 clutches are now available in the silver series: with a new ergonomic, polished and silver anodized aluminium lever
Data sheet
514_E - 69 Stickers for clutches - Anglais
509.131 - V-CAM 814 Clutche - Triple - V-CAM shape - Rope Ø8-10mm - MWL=600 à 850Kg
513.130 - Clutche triple - Rope Ø6 à 10mm (fixing screws not included) - SWL=250 à 500Kg
543.130 - Triple clutche - Rope Ø6 à 10mm (fixing screws not included) - SWL= 250 à 500Kg - Ergonomic handle in polished and silver anodised aluminium.
513.130 - Clutche triple - Rope Ø6 à 10mm (fixing screws not included) - SWL=250 à 500Kg
513.210 - Clutche horizontal - Rope Ø6 à 10mm (fixing screws not included) - SWL=250 à 500Kg
513.110 - Clutche simple - Rope Ø6 à 10mm (fixing screws not included) - SWL=250 à 500Kg
543.110 - Simple clutche - Rope Ø6 à 10mm (fixing screws not included) - SWL= 250 à 500Kg - Ergonomic handle in polished and silver anodised aluminium.
543.210 - Double clutche - Rope Ø6 à 10mm (fixing screws not included) - SWL= 250 à 500Kg - Ergonomic handle in polished and silver anodised aluminium.
513.120 - Clutche SILVER double - Rope Ø6 à 10mm (fixing screws not included) - SWL=250 à 500Kg
543.120 - Double clutche - Rope Ø6 à 10mm (vis de fixation non incluses ) - SWL= 250 à 500Kg - Ergonomic handle in polished and silver anodised aluminium.
