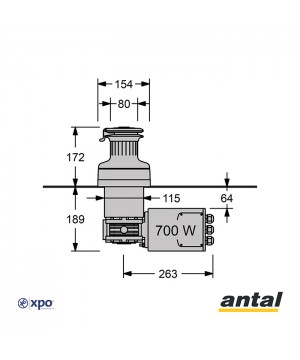

XT40 - 2-SPEED ELECTRIC ALUMINIUM WINCH - 24 V

Reference XT40EH24#PAL

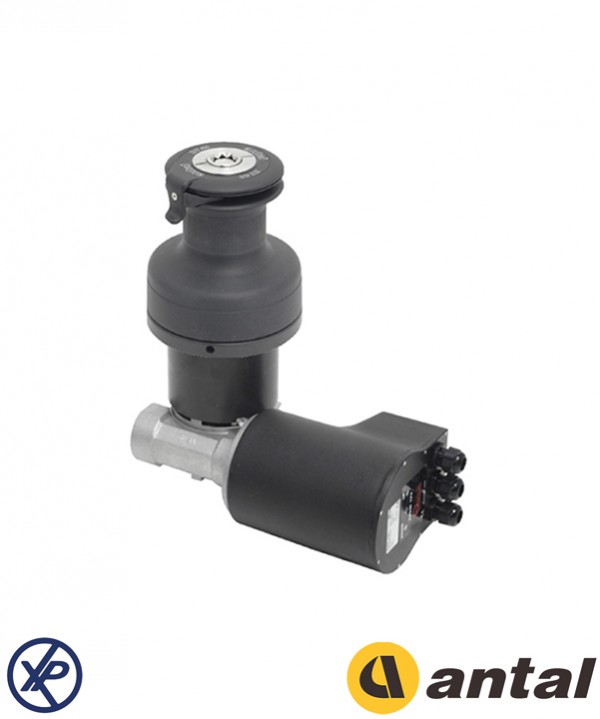

XT40EH24#PAL - Self-tailing electric winch - Black anodised aluminium - 2 speeds - Size 40 - Power 700W - Horizontal 24-volt motor

€4,314.00
Prix public TTC conseillé
Tax included
Quantity

favorite Add to wishlist

You must be logged

HORIZONTAL DRIVE - MOTOR 700W,12/24/48V → XT40EH, XT44EH, XT48EH

The three MOD. XT40, XT44 and XT48 are powered with a 700 Watt motor, available in 12, 24 and 48 Volt versions. Two switches, one control box and one breaker complete the system.


All Antal winch models, from MOD. XT40 to MOD.XT76.3, maxi MOD. XT80.3 and MOD. XT90.3 can be fitted with an electric motor. All electric winches are available with a chromed drum, now also black aluminium drums with a reinforced crown gear (high resistance alloy or A316 S.Steel) are available.
HORIZONTAL AND VERTICAL MOTORS: all the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE: simply insert the handle to disconnect the gearbox-motor unit.
GREATER SAFETY: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle.
GREATER EFFICIENCY: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
SPEED: Electric winches maintain two speeds both in manual use (inverting the direction of rotation of the handle) and in electric use (pressing one of the two control buttons).
It is of fundamental importance to be able to choose the most suitable speed for the manoeuvre that you want to perform; this allows fast recovery of the first part of the manoeuvre and more careful regulationin the final stage. In electric winches the speeds are higher than in manual use.
The recovery speed, indicated in the tables, is measured without a load; in the presence of the maximum load, a speed reduction of up to 30% must be considered.

ELECTRIC WINCHES: FORCE, ABSORPTION AND SPEED

The force of the winch (pulling load), the current absorption (Amp) of the motor and the line recovery speed are related as shown in the diagrams obtained experimentally with load and recovery tests.
These diagrams are available for each model and clearly show the values of the maximum force with the fast and slow gears, the corresponding speed, and maximum electric absorption.

XT40EH24#PAL

Data sheet

Fitting type
Winch motorisé
Winch size
40
Nbr of speeds
2
Energy
Electrical
Tension
12v
Line speed 1 m/min
12.0
Safe Working Load ( Kg )
800
Engine orientation
Horizontal
Power (Watts)
700
Line speed 2 m/min
4.5
Drum finishing
Black anodised aluminium
Weight (Kg)
16.2
