GENOA CAR 32x6

Reference 625.492

625.492 - PLUS genoa traveller for T-track 32x6 - Block Ø75mm - With Ø11mm locking piston - SWL 3800Kg.

€404.28
Prix public TTC conseillé

Tax included

Quantity

Add to wishlist

You must be logged

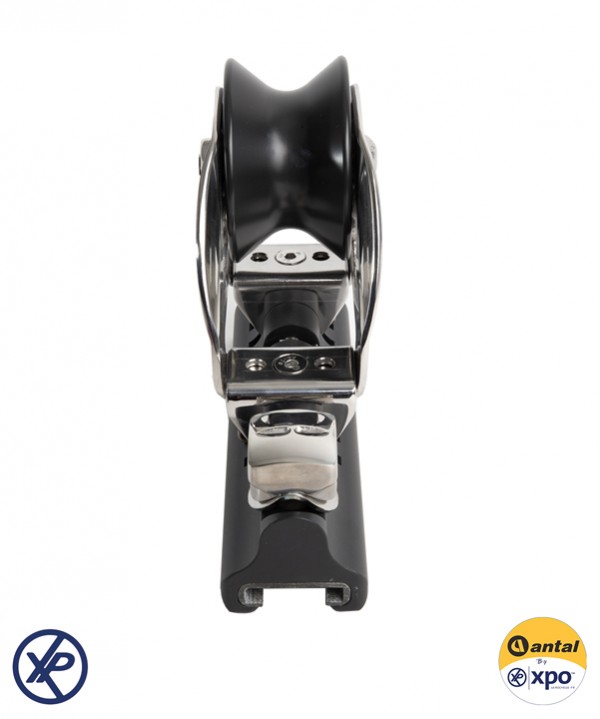

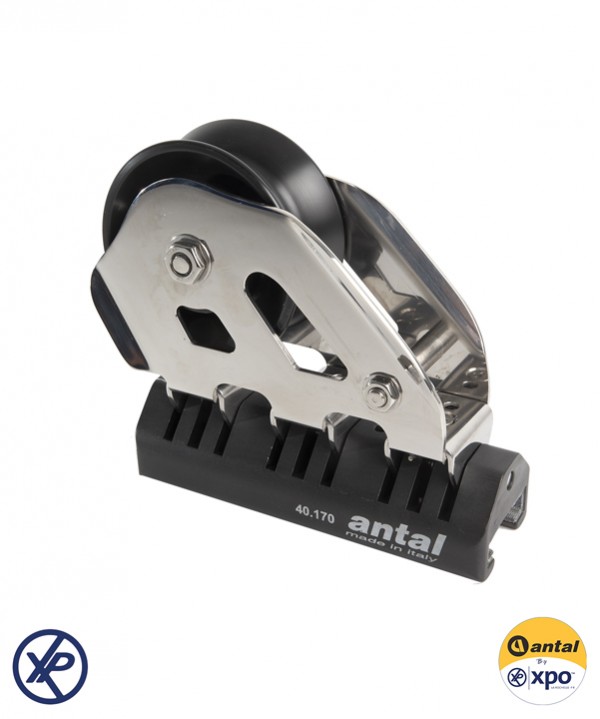

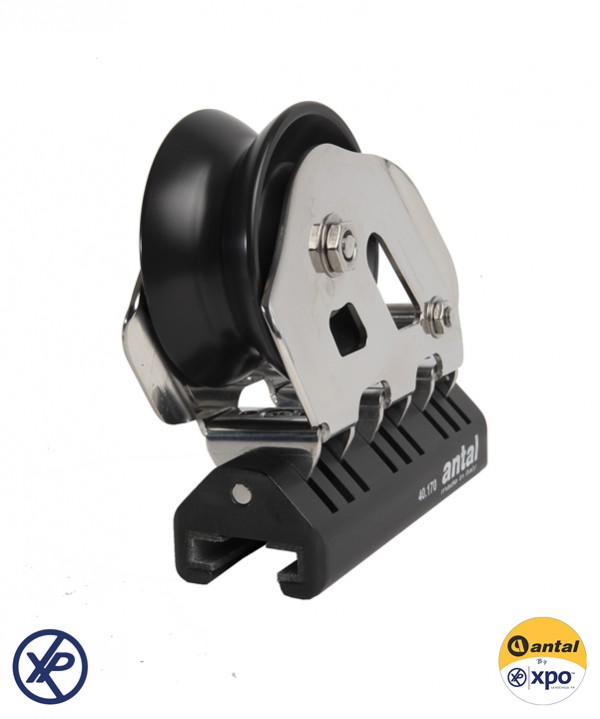

625.492 GENOA CAR 32x6 PLUS

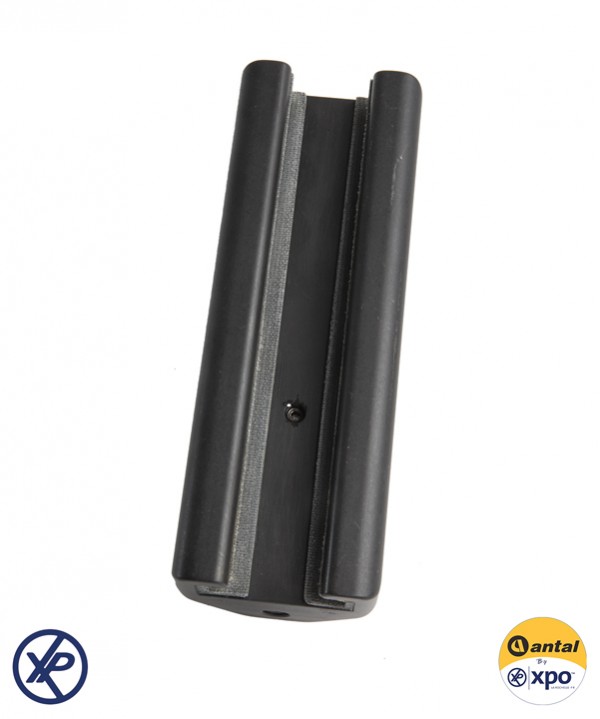

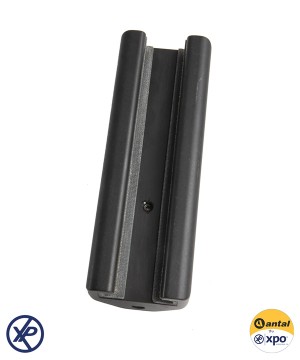

The "plus" genoa car runs on HS fibre sliding inserts on 32x6 T-Track.
It is fitted with a stop-pin done for 11 mm holes (smaller diameter are available on request).
WEIGHT – 1.34 kg
SWL – 3800 kg

Reference 625.492

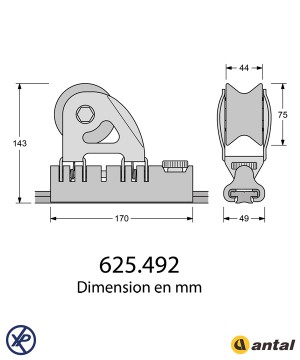

Data sheet

Fitting type: Genoa car
Width (mm): 49
Length ( mm ): 170
Track type: Rail en T
Sheave diameter ( mm ): 75
Height (mm): 143
Rail size: 32x6
Diamètre piston ( mm ): 11
Safe Working Load ( Kg ): 3800
Spécifité: Avec piston de blocage, Patin fibre HS

Download

625.492.pdf

Download (135.08KB)

625.492.dwg

Download (350.53KB)

625.492.stp

Download (1.46MB)

625.492_Exploded-View.pdf

Download (544.99KB)
