30MM ALLEN BLOCK - DOUBLE DECK PASSAGE
A2132HL - DYNAMIC double block - Ø sheave through-hole 30mm - high load with stainless steel sheave
A2034HL

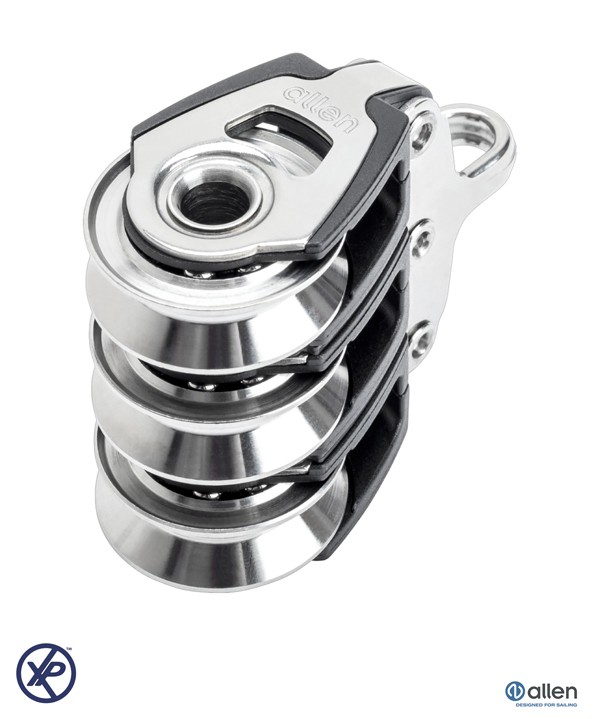

30mm High Load Triple Dynamic Block.
High load blocks feature a stainless-steel sheave. This upgrade offers even faster rolling speeds, higher working loads and lower friction when compared to the standard acetal sheave.
The stainless-steel sheave allows the block to be paired with both rope and wire.
Ideal for use in higher loaded applications in dinghies, windsurfing, kitesurfing and anything else that runs smaller diameter lines.
Bearings – Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
Ultra-Strap – Our patented Ultra-Strap is used in our 20, 30 & 40mm Dynamic blocks. The Ultra-Strap is unique when compared to other designs because of its coining process. This process strengthens the strap, making it more reliable and hard-wearing as well as making it much more rope friendly than other designs. The Ultra-Strap was the first marine industry block designed to work specifically with a rope attachment.
Becket – Our 20 & 30mm blocks offer a large central rivet which not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
Data sheet
Specific References
A2034HL - 30mm triple block for heavy loads - MWL=650Kg
A2132HL - DYNAMIC double block - Ø sheave through-hole 30mm - high load with stainless steel sheave
A2030TIIHL - Simple block 30mm for soft link with high load sheave - MWL=300Kg
A9030 - Block with Ø30mm titanium sheave and ceramic bearing - MWL=500 Kg - Weight =28 g
A2036MHL - 30mm single block for heavy loads, flat deck - MWL=300Kg - Resin side plates
A2040XHL - Single block, 40 mm, very high load, textile attachment - MWL=650 kg
A2020HLSHK - 20mm high load single block with stainless steel sheave and swivel hook - MWL=250kg
A2030HLF-873 - 30mm single block with T-connection - high load - stainless steel sheave - MWL=300Kg
A20401CHL - 40mm flat deck high-strength Allen block - MWL=360 - Ørope 10mm
A2031XHL-873 - 30mm single block - High load - with clevis and T-connection for halyard - MWL=450Kg
A2020TI3HL - KITE-SURF and paragliding block simple 20mm for soft link with high load sheave - MWL=250Kg
A2023XHL - 20mm double block with ringot, very high load capacity, textile attachment - MWL=400Kg
A2030XHL - 30mm single block for very high loads with textile attachment - MWL=400Kg
A2021HL - DYNAMIC single block - Ø 20mm multifunction high load sheave - MWL=350Kg
A2024AHL - 20mm triple block for heavy loads, articulated - MWL=400Kg
