Reference XT66#PBN

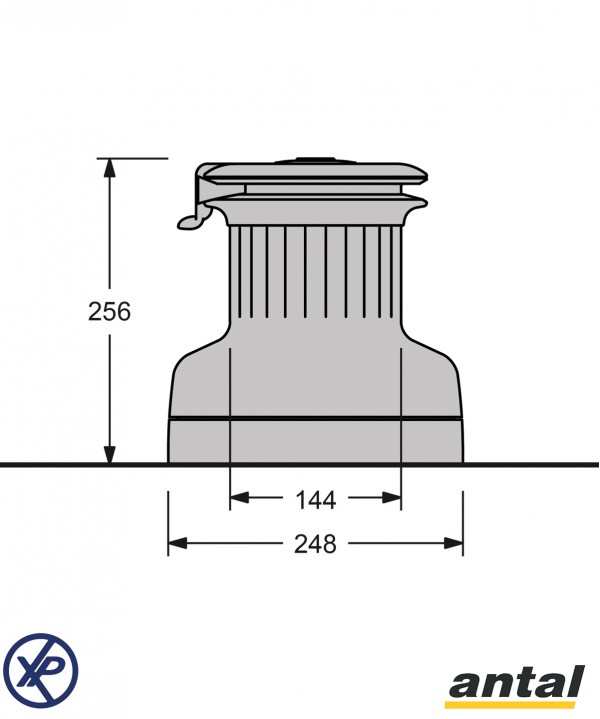

XT66#PBN - Polished natural bronze self-tailing winch with 2 reduction gears - Rope Ø10-18mm - Power 18.0/65.6
TWO REDUCED SPEED WINCHES: XT66, XT76
Large drum winches for 15-18m boats. All the gears are fitted with roller bearings and the drum works on a very wide diameter roller-ball bearings.
WINCH XT SELF-TAILING ANTAL
HARD BLACK ALUMINIUM (AL): The aluminium drum is hard black anodized and teflon coated,scratch-proof and very hard-wearing.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome RACE (R): racing series obtained by lightening the previous series AL.
CLASSIC (CHC and BNC): fully chromed or with natural bronze finish (page 30). Moreover an electric and hydraulic powered series are also available.Antal winches have a three-year warranty.
SIMPLE OPENING: just unscrew the upper ring to immediately dismantle the winch for an easy of cleaning and maintenance.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new Self-Tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
KNURLING: the drum vertical knurling offers maximum horizontal friction allowing the rope "slide" upwards. Differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
CNC BASE: machined by CNC (computer numericcontrol machines) is lighter and stronger than normal castings; aluminium made, hard black anodized and teflon coated. Easy removal from the winch makes maintenance a simple affair.
Data sheet
XT66#PBN - Polished natural bronze self-tailing winch with 2 reduction gears - Rope Ø10-18mm - Power 18.0/65.6
2031_WBN - Simple handle 250 mm - Bronze naturel - À billes and verrouillage and poignée bois
2121 - Simple handle -speedYLOCK- 250mm - Black anodised forged aluminium arm - Ball bearing and locking
2122 - BALL-GRIP handle -speedYLOCK- 250mm - Black anodised forged aluminium arm - Ball bearing and locking
2123 - double handle -speedYLOCK- 250mm - Black anodised forged aluminium arm - Ball bearing and locking
XT30.2#PCH - Chrome-plated self-tailing winch, 1 direct speed and 1 reduced speed - Rope Ø6-10mm - Power 7.0/28
XT52#PCH - Chrome self-tailing winch with 2 reduced speeds - Rope Ø8-14mm - Power 15.9/52.8
XT30#PCH - Chrome self-tailing winch, 1 speed - Rope Ø6-10mm - Power 28
XT40#PAL - Black anodised aluminium self-tailing winch, 2 reduced speeds - Rope Ø6-12mm - Power 12.8/40
XT62.3#PAL - Black anodised aluminium self-tailing winch with 3 reduced speeds - Rope Ø8-16mm - Power 6.7/17.6/61.1
XT66#PCH - Chrome self-tailing winch with 2 reduced speeds - Rope Ø10-18mm - Power 18.0/65.6
XT44#PBN - Polished natural bronze self-tailing winch with 2 reduced speeds - Rope Ø8-14mm - Power 20/43
XT40#PCH - Chrome-plated self-tailing winch with 2 reduced speeds - Rope Ø6-12mm - Power 12.8/40
XT62#PAL - Black anodised aluminium self-tailing winch with 2 reduced speeds - Rope Ø8-16mm - Power 17.8/62.1
XT62#PBN - Natural polished bronze self-tailing winch with 2 reduction gears - Rope Ø8-16mm - Power 17.8/62.1
XT40#PBN - Polished natural bronze self-tailing winch with 2 reduced speeds - Rope Ø6-12mm - Power 12.8/40
XT52#PBN - Polished natural bronze self-tailing winch with 2 reduced speeds - Rope Ø8-14mm - Power 15.9/52.8
XT80.3#PAL - Black anodised aluminium self-tailing winch with 3 reduced speeds - Rope Ø10-18mm - Power 10/28/75
XT76#PCH - Chrome self-tailing winch with 2 reduced speeds - Rope Ø10-18mm - Power 28/75
XT30.2#PBN - Polished natural bronze self-tailing winch, 1 direct speed and 1 reduced speed - Rope Ø6-10mm - Power 7.0/28
XT16.2#PAL - Black anodised aluminium self-tailing winch, 1 direct speed and 1 reduced speed - Rope Ø6-10mm - Power 7.0/14
