13MM NYLON SAILING RING
Reference A0056

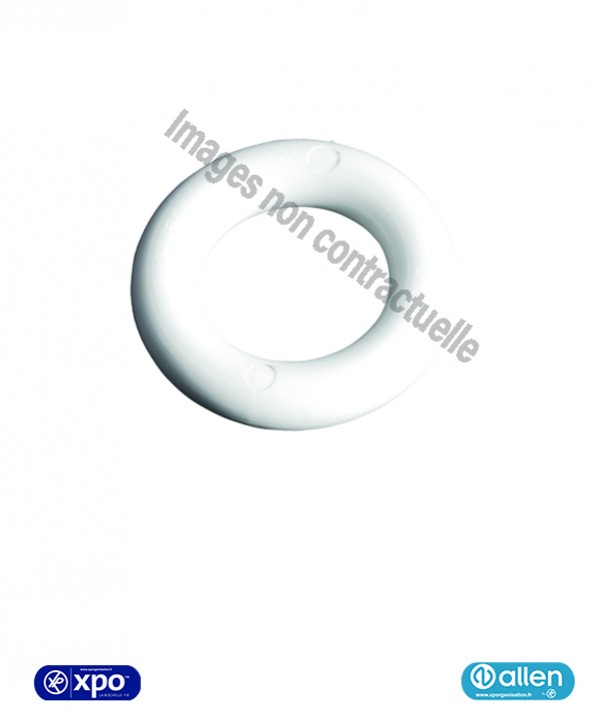

A0056 - Nylon sail ring - Inner diameter 13 mm - Breaking load 50 kg
Clamcleat A0056: Nylon Sail Ring Ø13mm - 50kg Breaking Load
The Clamcleat A0056 is an ultra-lightweight guiding and fastening solution, designed for nautical applications where heavy loads are not required. Made from high-strength nylon, this ring is a standard for dinghy sailing and rigging finishes.
Properties and Materials
Extreme Lightweight: Its nylon structure allows for integrated lead points without adding weight to the sails or control systems.
Breaking Load: Tested to a 50 kg breaking load, it provides optimal safety for small technical lines and shock cords.
Maintenance-Free: Completely immune to salt and UV rays, this ring won't rust, corrode, or stain sail fabrics over time.
Common Applications
Sailmaking: Used as a lightweight reinforcement eye or attachment point for reefing lines and elastic cords.
Line Guiding: Ideal for organizing small-diameter control lines in the cockpit or on deck.
Versatility: Also suitable for industrial or outdoor applications requiring a robust yet lightweight suspension ring.
Technical Specifications
Part Number: A0056
Internal Diameter: 13 mm
Breaking Load: 50 kg (110 lbs)
Material: UV-resistant high-grade Nylon
Note: For high-friction applications under heavy tension, we recommend using titanium or hard-anodized aluminum rings.
Data sheet
- Fitting type
- Sail ring
- Weight ( g )
- 0.3
- External diameter (mm)
- 22
- BL - Breaking Load ( Kg )
- 50
- Interior diameter (mm)
- 13
Specific References
- EAN13
- 5055276500223
Download
A0056 - Nylon sail ring - Inner diameter 13 mm - Breaking load 50 kg
