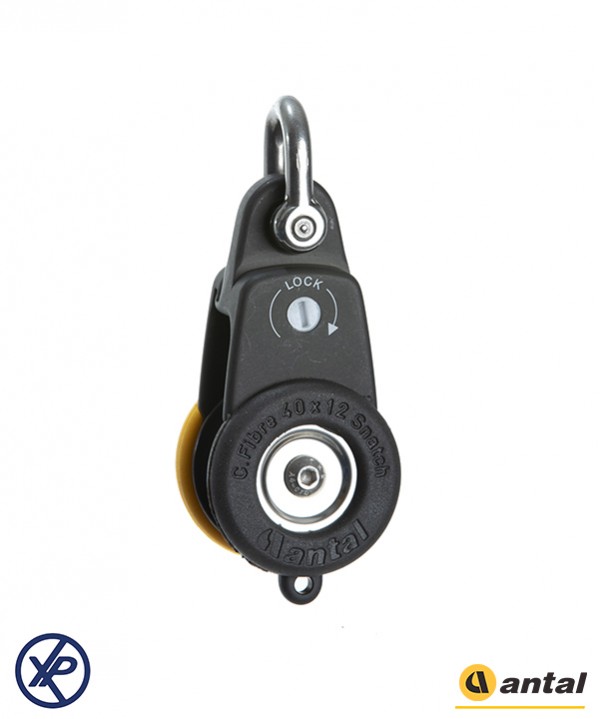

SNATCH BLOCK Ø40 - FIXED WITH SHACKLE

Reference 9040#SHK

9040#SHK - Fixed head snatch block with shackle - Ø 40mm - SWL=700kg.

€195.96
Prix public TTC conseillé
Tax included
Quantity

favorite Add to wishlist

You must be logged

SNATCH LOOP (Ø40 ET 60 mm)

The pulley cheek pivots around the sheave axis, allowing the pulley to open; a ball safety device prevents the pulley from opening on its own, and a screw allows the pressure to be adjusted.
A small ring allows the pulley to be suspended.




MATERIALS – The pulley is made of resin with a composite fibre ring and side ball bearings. The pulley sides are made of black hard anodised aluminium treated with Teflon and have rubber side guards (the yellow rubber is on the moving part of the pulley).



9040#SHK

Data sheet

Fitting type
Snatch block
Rope diameter ( mm )
12
Nber of sheaves
1
Weight ( g )
143
Sheave diameter ( mm )
40
Block specificity
Fixed head and shackle
Block type
Opening, Simple
Bearing type
Composite fibre
Safe Working Load ( Kg )
700
Type and number of balls
Delrin
Sheave material
Resin
Block material
Aluminium
