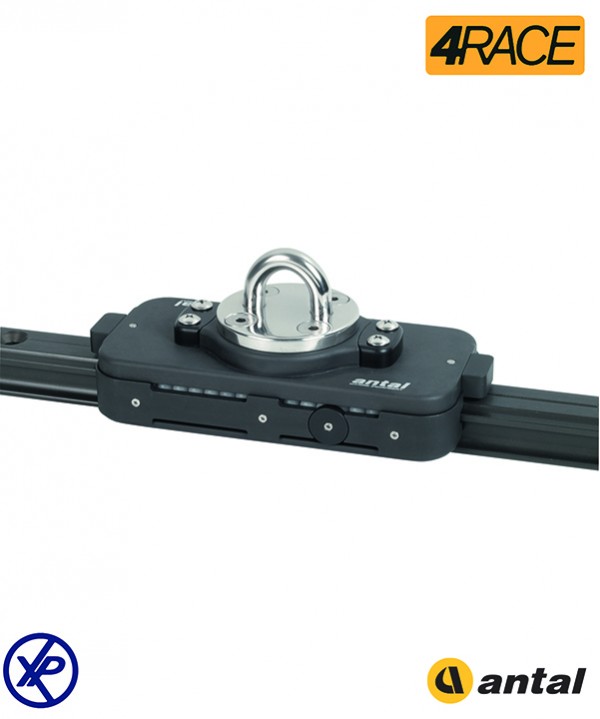

GV 4RACE MAXI 47 TRAVELER

Reference 614.239

614.239 - 4Race traveller for 47x32 track - Length: 434mm - 162 Delrin balls + 162 Torlon balls - SWL=7200kg

€3,288.00
Prix public TTC conseillé

Tax included

Quantity

Add to wishlist

You must be logged

MAINSHEET SYSTEM, MAXI 47 TRACK – SIZE 430 TRAVELLER

2x120 or 3x120 mm blocks (OPF series) are fitted with a padeye and spring on the car for the mainsheet; one or two 75 mm sheaves for the car control. Car control 2:1 and 3:1 are shown below.
SWL – 7200 kg

Reference 614.239

Data sheet

Fitting type: Mainsail car
Track type: 4RACE
Specificity: Padeye

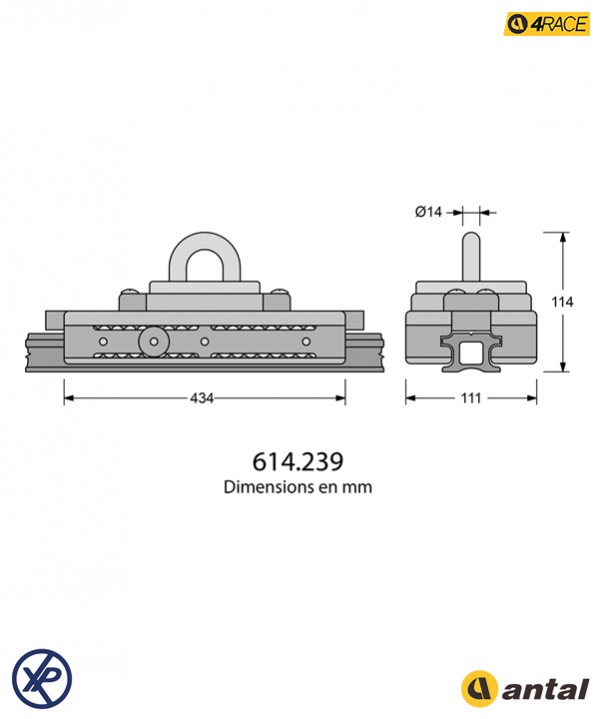

Track size: 47x31.5
Traveler Size ( mm ): 434
Largeur chariot ( mm ): 111
Safe Working Load ( Kg ): 7200
Type and number of balls: 162 Delrin + 162 Torlon
Poulie ( mm ): Non fournie

Download

614.239.stp

Download (962.88KB)

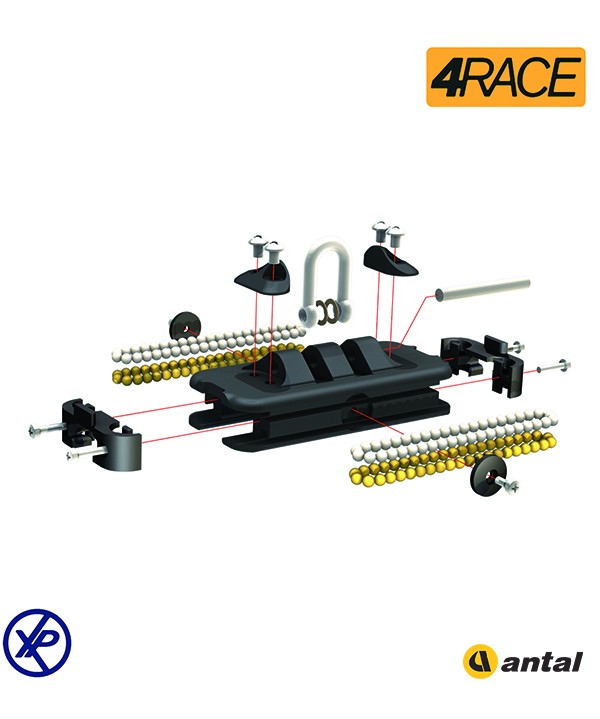

430-systeme_exploded.pdf

Download (591.96KB)

614.239.pdf

Download (131.61KB)

614.239.dwg

Download (214.23KB)
