Reference A0040-12

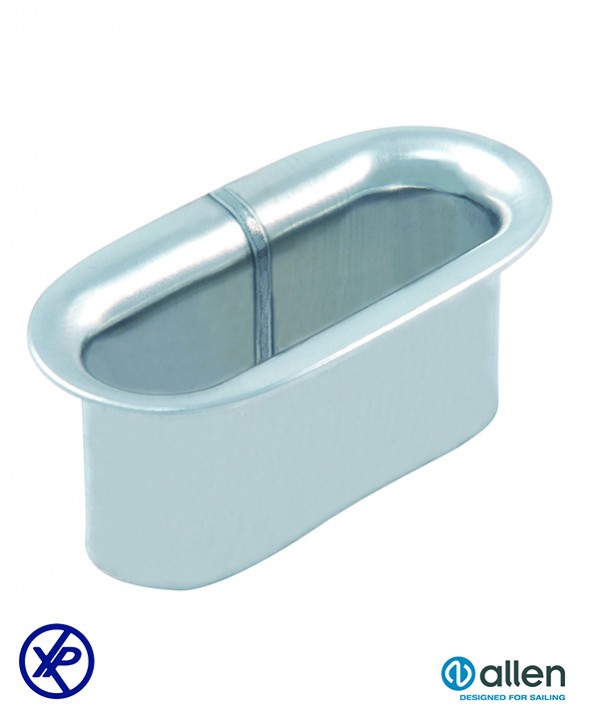

A0040-12 - Inox through deck bush - inner diameter 13x35mm - outer diameter 21X43mm - Depth 13mm
Through Deck Bush With Flang
Flanged nylon deck bush.
Also known as a through deck fairlead or bush, rope guide and thru-deck bush.
Flanged deck bushes feature a wider surface area for more protection and two fixing holes. This style of bush allows for a simple installation which only requires two screws and no messy bonding agent or silicone.
Typically used to guide a rope or wire through a surface whilst protecting both the rope and the surface from wear.
To install, simply drill a hole to match the external diameter of the bush and then push the bush into the hole. Use two screws or bolts to hold this style of bush in place.
Injection moulded for a lightweight and economical product. However, we suggest using one of the other material options if you plan to have a fast-running control line as nylon is not as hard-wearing.
Data sheet
Specific References
A0040-12 - Inox through deck bush - inner diameter 13x35mm - outer diameter 21X43mm - Depth 13mm
SD08 - Low friction deflector fairlead S-DRIVE - For mast & deck - Thickness 8mm - SWL=1000 Kg
A8039 - Aluminium through deck bush - inner diameter 8mm - outer diameter 13mm - Depth 9mm - 2 external screws
A8439-9#Ti - TITANIUM through deck bush - Internal diameter 8 mm - Depth 9-14 mm - External diameter 13 mm
A8439-7#Ti - TITANIUM through deck bush - Internal diameter 8 mm - Depth 07-09 mm - External diameter 13 mm
A8539-29 - Passe-pont Fileté en aluminium - Øintérieur 12mm - Øextérieur 16mm - Profondeur 29-34mm
A8539-9#Ti - TITANIUM threaded through-bolt - Internal diameter 12 mm - External diameter 16 mm - Depth 9-14 mm
A8439-17 - Passe-pont Fileté en aluminium - Profondeur 17-22mm - Øintérieur 8mm - Øextérieur13mm
A8439-13#Ti - TITANIUM Threaded Through-Bolt - Internal diameter 8 mm - Depth 13-18 mm - External diameter 13 mm
A8539-35#Ti - TITANIUM threaded through-bolt - Internal diameter 12 mm - External diameter 16 mm - Depth 25-30 mm
A8539-7#Ti - TITANIUM threaded through-bolt - Internal diameter 12 mm - External diameter 16 mm - Depth 07-09 mm
A0539A - Aluminium through deck bush - inner diameter 13mm - outer diameter 16mm - Depth 8mm
A4139 - Acetal through deck bush - inner diameter 20mm - outer diameter 33mm - Depth 9mm with reinforcement - Stainless steel eye
A8539-13 - Aluminium threated through desck bush - inner diameter 12mm - outer diameter 16mm - Depth 35-40mm
