Reference 007.18

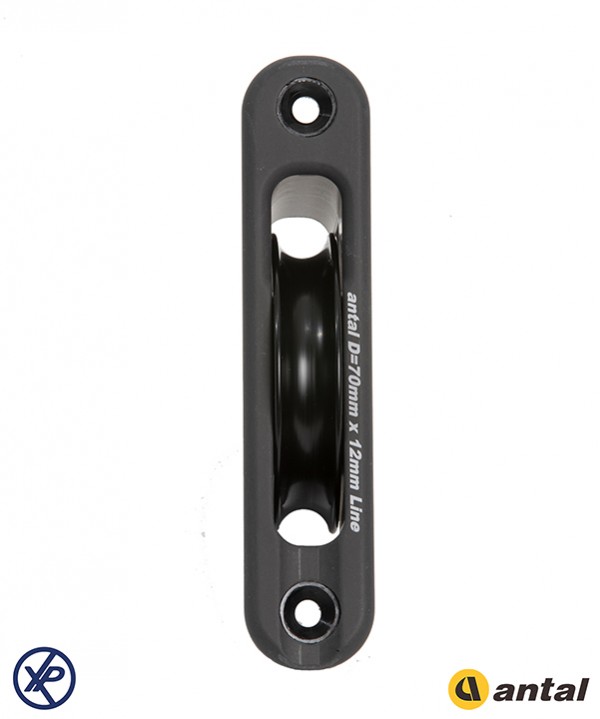

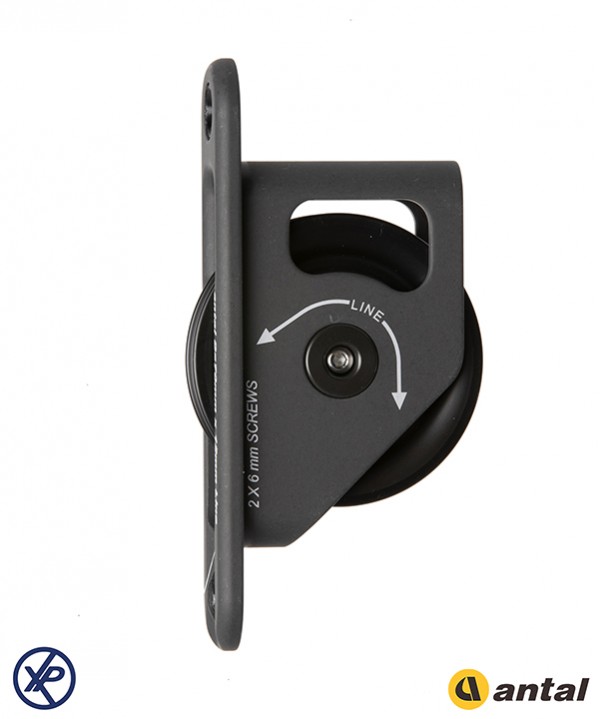

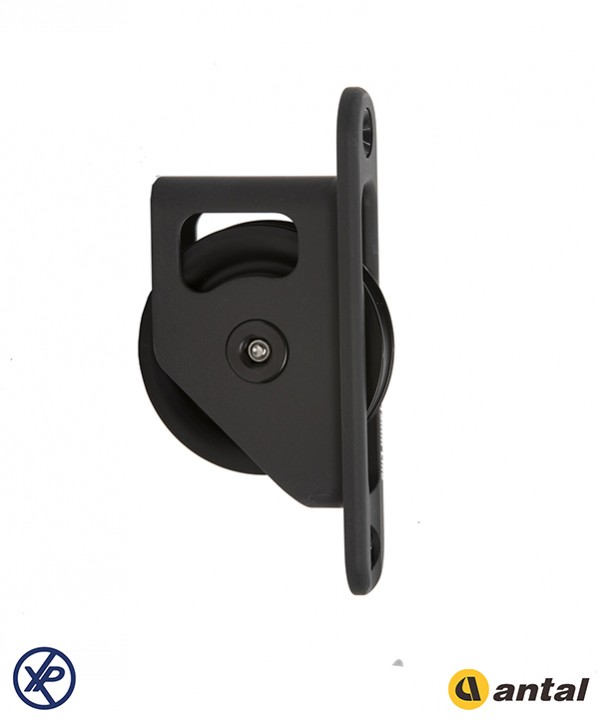

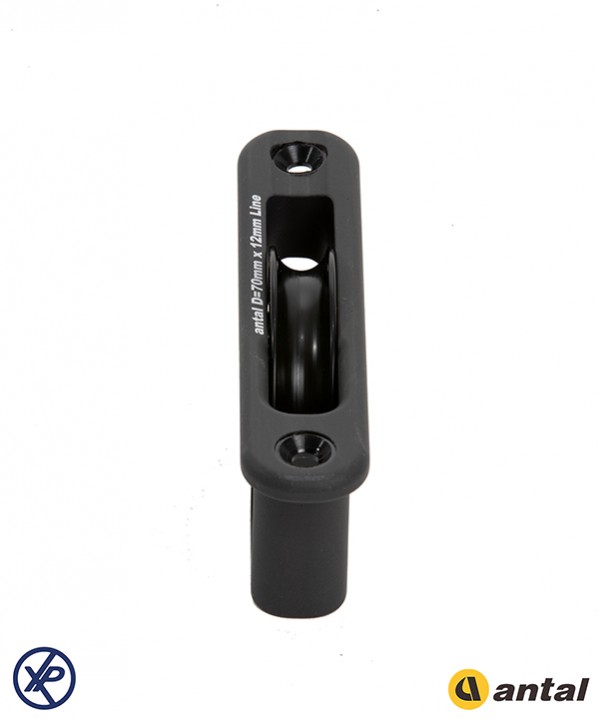

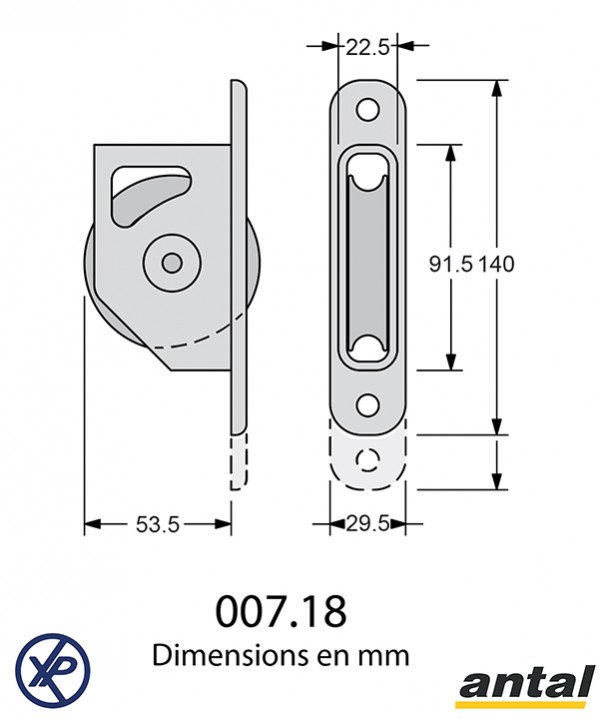

007.18 - Built-in block for mast or deck- halyard exit point - Poulie type OPF Ø70x12mm - SWL=1300Kg
12 different sizes with diameters from 40 to 140 mm for working loads (SWL) up to 9000 kg.
Hard black anodized aluminium frame with insulating washers for corrosion protection. Resin sheaves (aluminium sheaves for 100, 120 and 140 mm only) with Composite Fibre main bearing (not on size 40) and double side self-captive ball bearing
Data sheet
007.18 - Built-in block for mast or deck- halyard exit point - Poulie type OPF Ø70x12mm - SWL=1300Kg
A4438-5415-SP - Poulie à encastrer aluminium haute performance - Réa inox à friction 38x7mm- MWL:600
A4430-4716-AP - Poulie à encastrer aluminium haute performance - Réa acétal à friction 30x10mm- MWL:300
010.18_Z - Renforced built-in block for mast or deck- halyard exit point - Type OPF Ø100x16mm - SWL=4500Kg
A4420-4215-D - Poulie à encastrer aluminium haute performance - Réa acétal Dynamic à billes 20x8mm- MWL:250
A4438-5818-12-SS - Poulie à encastrer aluminium haute performance - Réa inox à billes 38x10mm- MWL:600
008.18 - Built-in block for mast or deck- halyard exit point - Poulie type OPF Ø80x14mm - SWL=2200Kg
