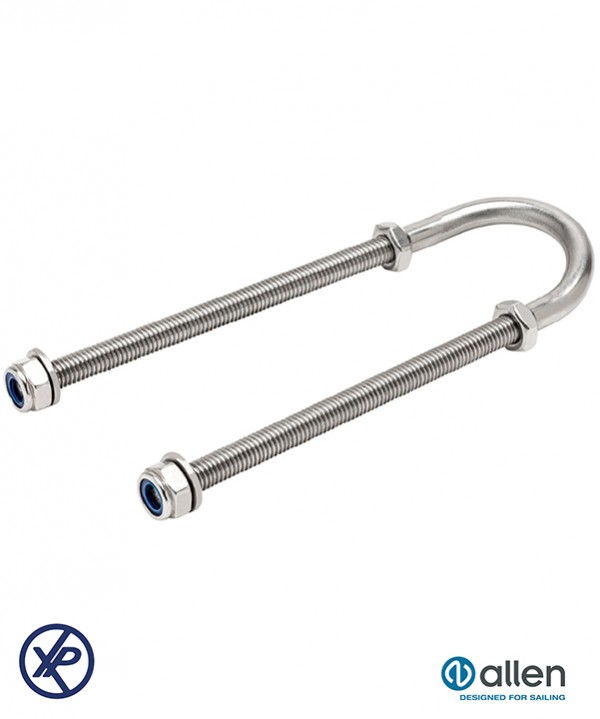

LONG U BOLT WITH NUT & WASHER
Reference A4671XT
A4671XT - U-bolt with bolt and nut - Eye diameter = 32 mm - Thread length = 96 mm
A4671XT-FT - Long Marine-Grade U-Bolt Set with Nuts and bolt 6mm
Enhance your boat’s rigging and deck fittings with this pair of long U-bolts, engineered for superior strength and versatility. Each U-bolt features a 6mm rod and 32mm internal width, with threaded ends for secure attachment. The set includes four nuts, washers, and a tang for each U-bolt, providing an additional attachment point for lines, hardware, or rigging.
Key Features:
Complete Set: Includes two U-bolts, four nuts, washers, and two tangs for versatile installation.
Marine-Grade Stainless Steel: Ensures exceptional resistance to corrosion, saltwater, and harsh marine environments.
Additional Attachment Point: The tang allows for extra securing options, ideal for complex rigging setups.
Easy Installation: Threaded ends and included hardware make for a quick, secure fit.
Perfect for sailors, fishermen, and boating professionals who require reliable, high-performance marine fittings.
Data sheet
- Fitting type
- Cadène en U
- Weight ( g )
- 57
- Fixing hole center ( mm )
- 38
- Interior diameter (mm)
- 32
- Hauteur totale ( mm )
- 120
- Diamètre axe ferrure ( mm )
- 6
- Longueur filetage ( mm )
- 96
Download
A4671XT - U-bolt with bolt and nut - Eye diameter = 32 mm - Thread length = 96 mm
