Reference 512.121

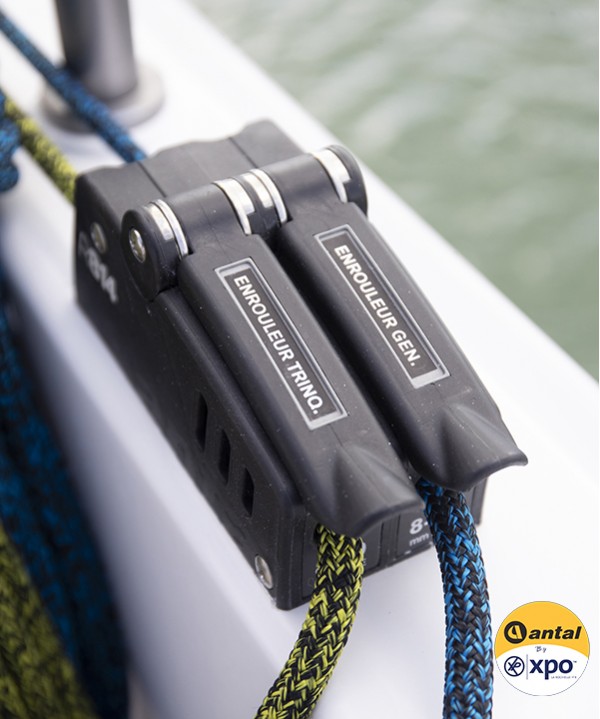

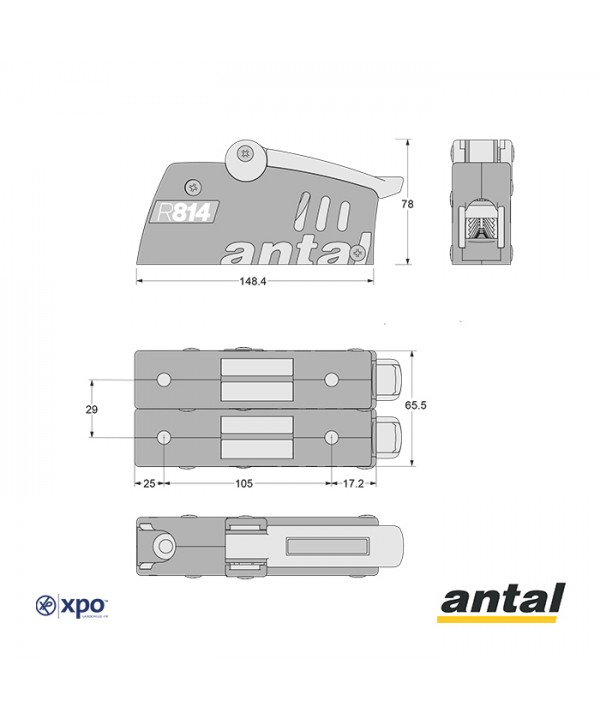

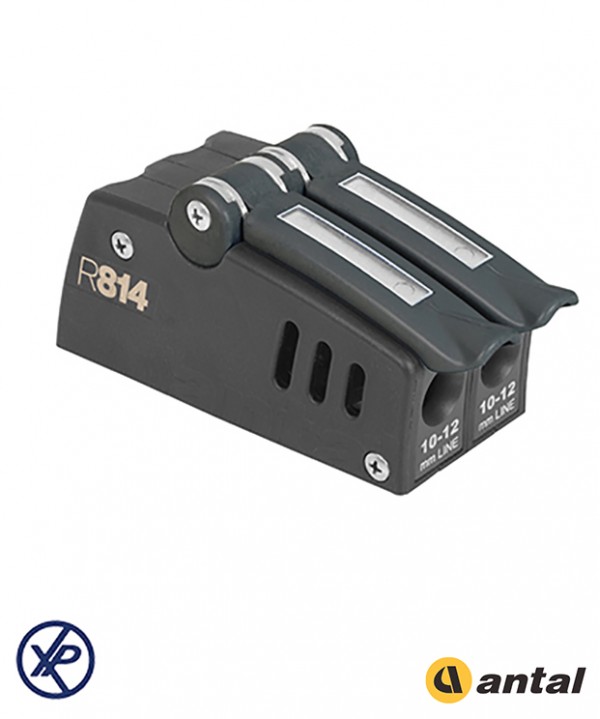

512.121 - V-CAM R814 Clutche - Double - V-Cam shape - Rope Ø8 à 10mm (fixing screws not included) supporting a load of 600 à 850Kg
Centralize two 8-10mm lines. The R814 technology offers superior power thanks to its XL cams.
The safe working load (MWL) is 850 kg per cam.
Data sheet
512.121 - V-CAM R814 Clutche - Double - V-Cam shape - Rope Ø8 à 10mm (fixing screws not included) supporting a load of 600 à 850Kg
