VERTICAL RETURN 120MM

Reference 012.16

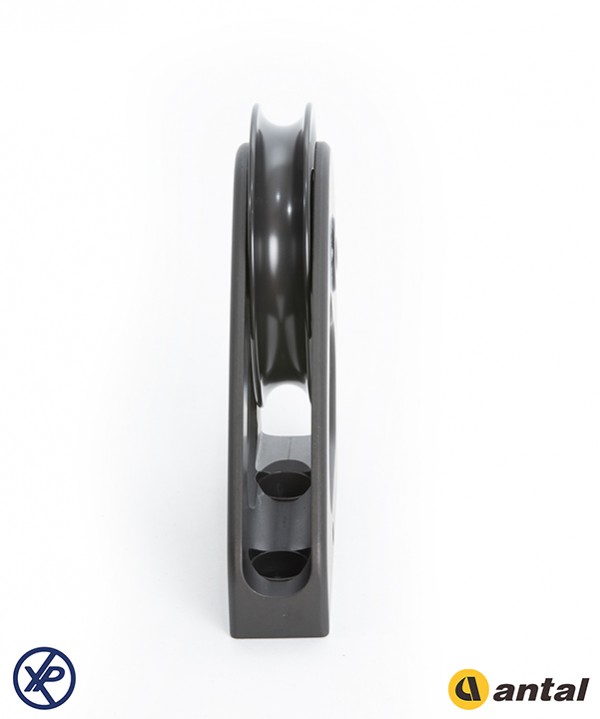

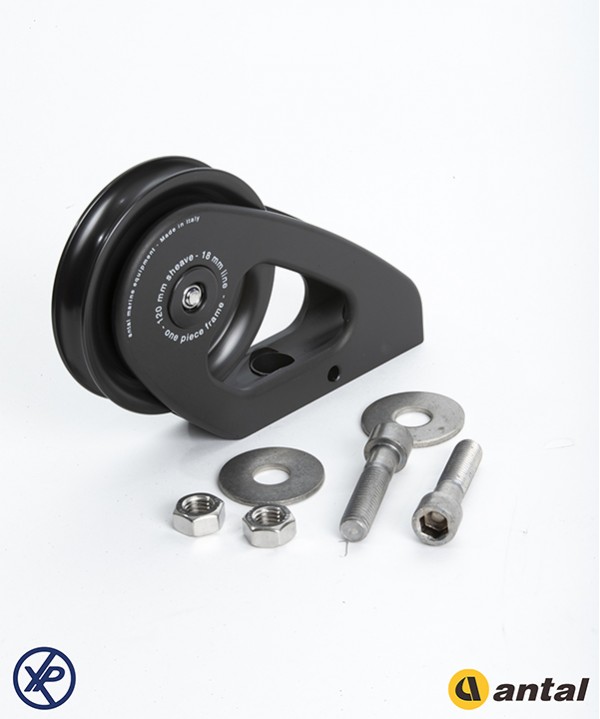

012.16 - Fixed vertical top return - type OPF Ø120x18mm - SWL=5000Kg

€479.52
Prix public TTC conseillé
Tax included
Quantity

favorite Add to wishlist

You must be logged

One Piece Frame block by Antal, the block without pins or screws, it is a light and strong solution: Simply a hard black anodized and teflon coated aluminium frame in one piece.


A complete range from 50 to 140 mm sheaves in single, double, triple, fiddle, and deck versions, for webbing or shackle connection.


Sizes are based on the range of HR shackles available and on their safe working load (SWL).

012.16

Data sheet

Fitting type
Renvoi vertical
Number and diameter of screws *mm
2*Ø14
Nber of sheaves
1
Weight ( g )
960
Sheave diameter ( mm )
120
Block type
Vertical over the top return
Sheave Type
Classic
Safe Working Load ( Kg )
5000
Length (mm)
210

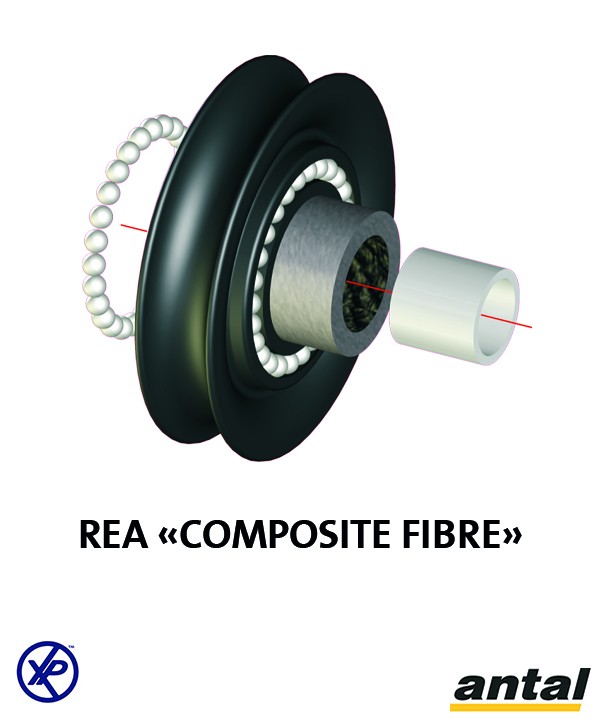

Side bearing
Billes de Delrin
Radial bearing
Composite Fibre
Width (mm)
37
Sheave material
Resin
Matériel Corp
Aluminium
Diamètre Cordage ( mm )
12
Hauteur (mm)
147
