• A2024F-Poulie dynamic
A2024F-Poulie dynamic

20MM BLOCK - TRIPLE

Reference A2024F

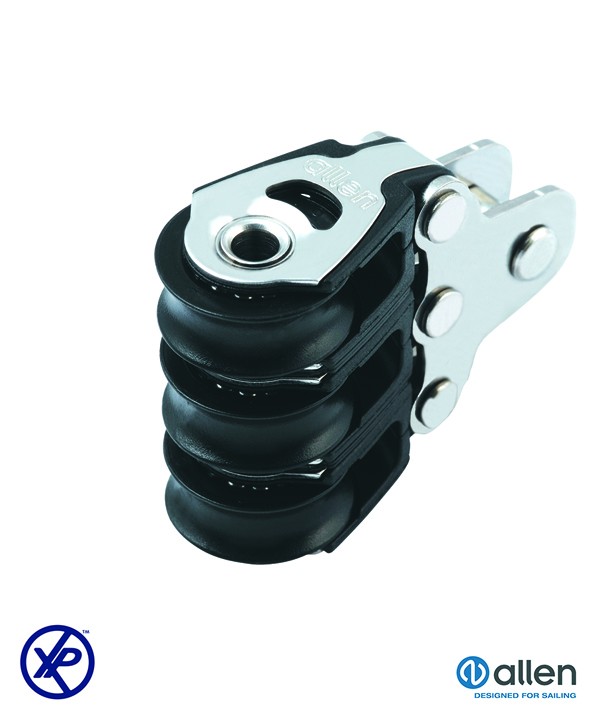

A2024F - DYNAMIC triple pulley - 20mm sheave diameter with shackle - MWL=320kg

€107.04
Prix public TTC conseillé
Tax included
Select
Quantity

favorite Add to wishlist

You must be logged

20mm Triple Dynamic Block With Fork — Easy & Secure Attachment

The A2024F is a high-performance triple sheave block designed for minimal friction and fast rolling speeds. Lightweight and strong, it is the perfect choice for dinghies, windsurfing, and kitesurfing applications.

Clevis Pin Fork Head

This block features a removable clevis pin and ring, making the attachment to deck fittings or tangs super easy and secure without the need for additional shackles.

Integrated Central Becket

The large central rivet not only saves weight but also provides a rope-friendly tie-off point. It is perfectly designed for secure line terminations in cascade systems.

Patented Dynamic Bearings

Equipped with twin rows of stainless-steel ball bearings on a stainless-steel rail for superior load-carrying ability and longevity compared to plastic-rail alternatives.


Frequently Asked Questions

1
What is the benefit of the fork head?
It allows for a direct, low-profile connection to hardware, eliminating the extra weight and rattling of a separate shackle.
2
Can the becket handle modern high-tech lines?
Absolutely. The central rivet is smooth and rope-friendly, preventing chafe even with high-performance dyneema lines.

A2024F#Cx0

Data sheet

Fitting type
Poulie dynamic
Rope diameter ( mm )
6
MWL - Max Working Load ( Kg )
320
Nber of sheaves
3
Weight ( g )
48
Length ( mm )
Longueur ( mm )
Sheave diameter ( mm )
20
Block specificity
Chape
Block type
Triple
Sheave Type
Resin
Diamètre axe de manille ( mm )
4
Fixing hole center ( mm )
-
Breaking Load ( Kg )
650

Specific References

ean13
5055276523031
