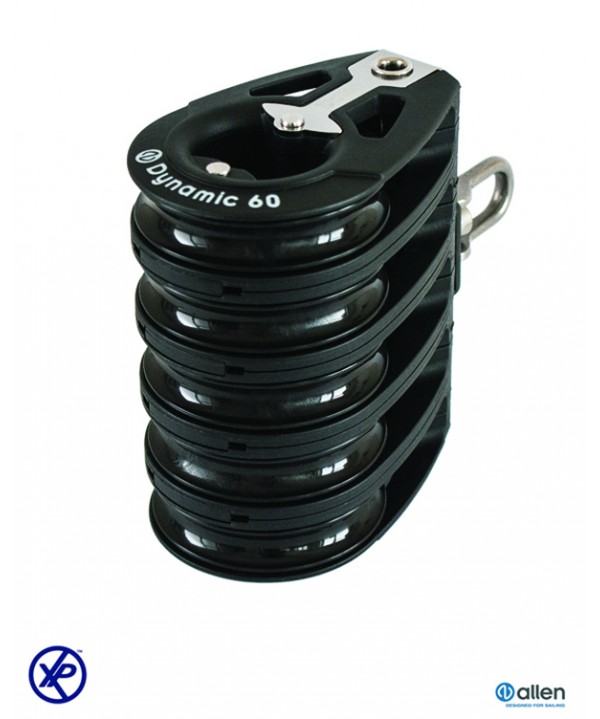

A2059 – 50mm Quint Dynamic Block | Low Friction Mainsheet Block for Sports Catamarans & Keelboats
The A2059 50mm Quint Dynamic Block is a high-performance ball bearing block specifically designed for low friction mainsheet systems on sports catamarans, while remaining perfectly suited for a wide range of other applications, including backstay tensioning on keelboats.
Patented Bearing System – Dynamic Block Technology Dynamic Blocks feature an exclusive patented bearing system using twin rows of stainless-steel ball bearings running on a stainless-steel rail. This delivers superior load-carrying capacity and outstanding longevity compared to conventional bearing systems on the market.
Swivel Lock – Flexible Orientation Control The A2059 comes with a removable swivel lock moulding. When installed, the shackle can be securely locked in 90-degree orientations. When removed, the attachment shackle spins freely for maximum rigging flexibility.
Becket – Lightweight & Rope-Friendly Attachment The large central becket hole reduces the overall weight of the block while providing a rope-friendly attachment point for easy and reliable rigging.
Data sheet
- Fitting type
- Poulie dynamic
- MWL - Max Working Load ( Kg )
- 470
- Weight ( g )
- 323
- Length ( mm )
- 100
- Sheave diameter ( mm )
- 50
- Block specificity
- Shackle on swivel
- Block type
- Quintuple
- Sheave Type
- Resin
- Diamètre axe de manille ( mm )
- 5
- Diamètre Cordage MAX ( mm )
- 10
- Breaking Load ( Kg )
- 950
- Boat
- Keelboat
- Type quillard
- J80
Specific References
- ean13
- 5055276512998
Download
A2059 - 50mm Quintuple block - MWL=950kg
