H130-Poulies forte charge
H130-Poulies forte charge H130-Poulies forte charge H130-Poulies forte charge

HIGH LOAD BLOCK 30MM

Reference H130

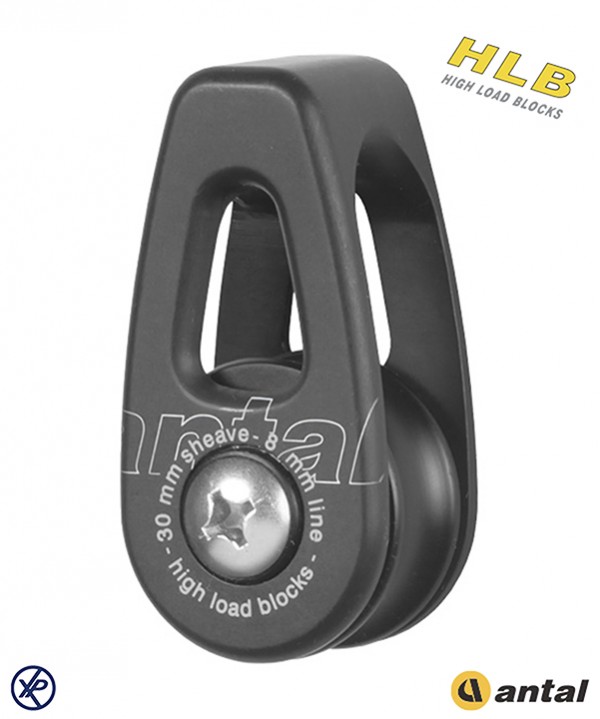

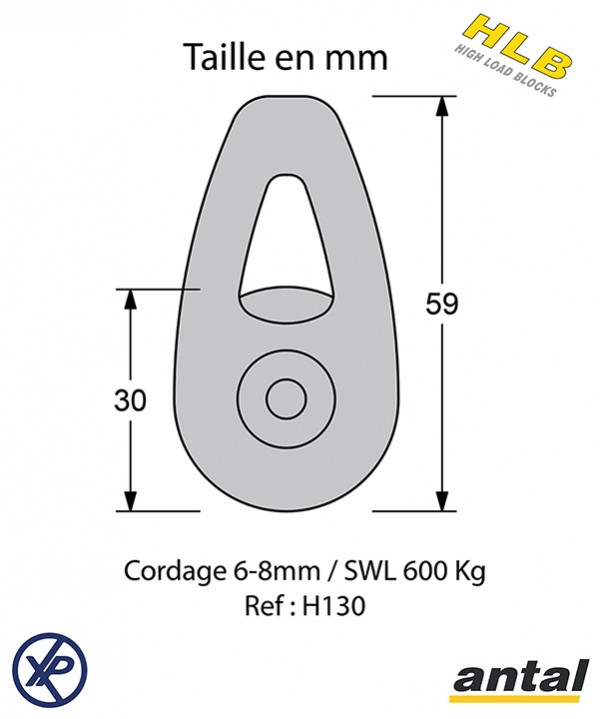

H130 - Single block for Heavy Loads Ø30mm - Rope Ø6-8mm - SWL=600kg

€111.96
Prix public TTC conseillé
Tax included
Quantity

favorite Add to wishlist

You must be logged



HIGH LOAD BLOCKS


These small and light blocks are the best solution for very high loads when sliding is not important.
The very small sheave is fitted with a Composite Fibre bushing. The one piece frame is made for line connection.

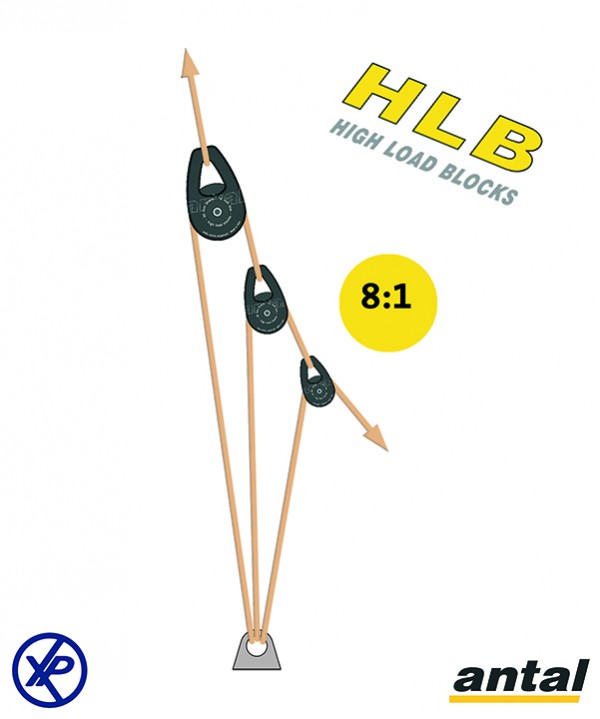

The 3 blocks (D = 30, 40 and 55 mm) give an 8 to 1 system. This system is specially designed for the backstay or the boom-vang

H130

Data sheet

Fitting type
Poulies forte charge
Rope diameter ( mm )
8
Weight ( g )
50
Sheave diameter ( mm )
30
Block specificity
Very high load
Safe Working Load ( Kg )
600
Materials
Aluminium
Side bearing
Billes de Delrin
Radial bearing
Composite Fibre
Block specifications
Pour palan
