Reference 615.223

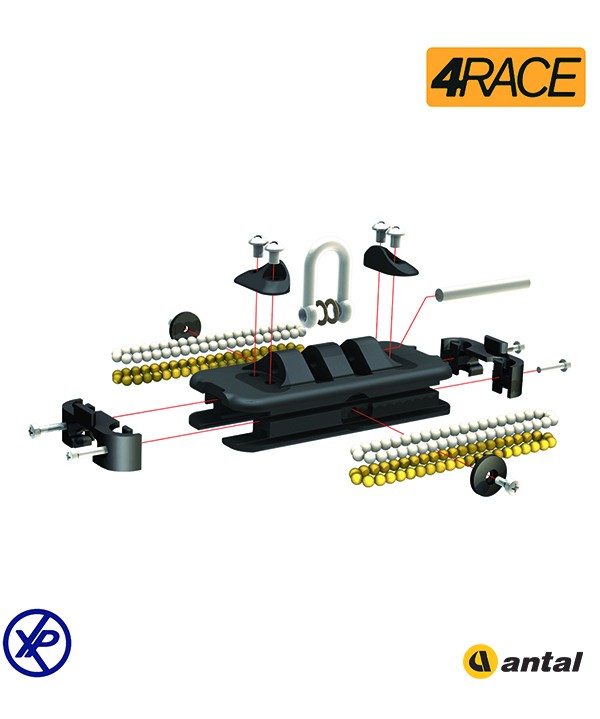

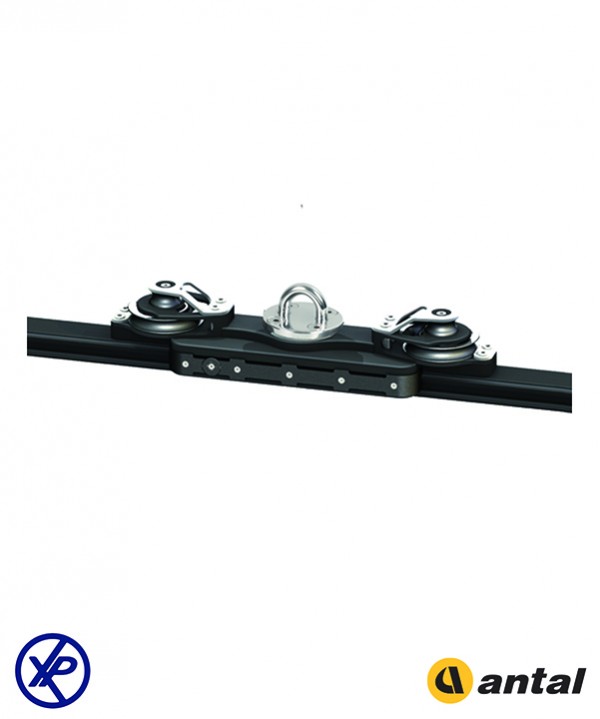

615.223 - 330mm traveller for mainsail sheet for 4RACE 67x32 track - 2 single return sheaves Ø100mm with fixed point - with pad eye - Traveller control 3:1 - SWL=5.8/7.2T
MAINSHEET SYSTEM, MAXI 47 TRACK – SIZE 330 TRAVELLER
1x140 or 2x120 mm blocks (OPF series) are fitted with a padeye and spring on the car for the mainsheet; one or two 75 mm sheaves for the car control. Car control 2:1 and 3:1 are shown below.
SWL – 5800 kg
Data sheet
615.223 - 330mm traveller for mainsail sheet for 4RACE 67x32 track - 2 single return sheaves Ø100mm with fixed point - with pad eye - Traveller control 3:1 - SWL=5.8/7.2T
601.124 - MAXI 67 rail extruded in black anodised light alloy - 67x31.5mm - Ø12mm screws - hole spacing 100mm - Weight: 2.4kg/m
691.663 - 67x32 rail end cap in black hard anodised aluminium - 2 return pulleys Ø100mm (OPF) - 1 fixed point and a shockproof rubber stop - 2 x Ø10mm screws - Weight: 1.50kg
615.222 - 330mm traveller for mainsail sheet for 4RACE 67x32 track - 2 single return sheaves Ø100mm - with pad eye - Traveller control 2:1 - SWL=5.8/7.2T
615.223_1424 - 330mm traveller for mainsail sheet for 4RACE 67x32 track - 2 single Ø100mm return sheaves with fixed point + 1 single OPF Ø140mm block - Traveller control 3:1 - SWL=5.8/7.2T
615.222_1424 - 330 mm traveller for mainsail sheet for 4RACE 67x32 track - 2 single return sheaves Ø100 mm + 1 single OPF block Ø140 mm - 2:1 traveller control - SWL=5.8/7.2 t
615.229 - 4Race traveller for 67x32 track - Length: 334mm - 124 Delrin balls + 124 Torlon balls - SWL=5800Kg
