Reference XT16#PCH

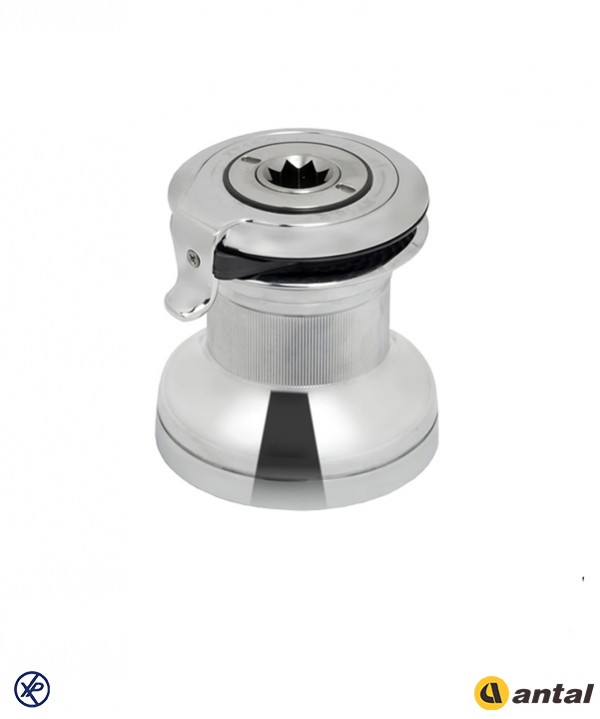

XT16#PCH - Chrome self-tailing winch, 1 speed - Rope Ø6-10mm - Power 14
NE REDUCED SPEED WINCH XT16, XT30
The two smallest models (XT16 and XT30) have a single reduced speed, giving a slow but powerful gear.
The handle turns freely the other way. Both available in chrome (CH) or hard black alloy (AL).
WINCH XT SELF-TAILING ANTAL
HARD BLACK ALUMINIUM (AL): The aluminium drum is hard black anodized and teflon coated,scratch-proof and very hard-wearing.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome RACE (R): racing series obtained by lightening the previous series AL.
CLASSIC (CHC and BNC): fully chromed or with natural bronze finish (page 30). Moreover an electric and hydraulic powered series are also available.Antal winches have a three-year warranty.
SIMPLE OPENING: just unscrew the upper ring to immediately dismantle the winch for an easy of cleaning and maintenance.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new Self-Tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
KNURLING: the drum vertical knurling offers maximum horizontal friction allowing the rope "slide" upwards. Differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
CNC BASE: machined by CNC (computer numericcontrol machines) is lighter and stronger than normal castings; aluminium made, hard black anodized and teflon coated. Easy removal from the winch makes maintenance a simple affair.

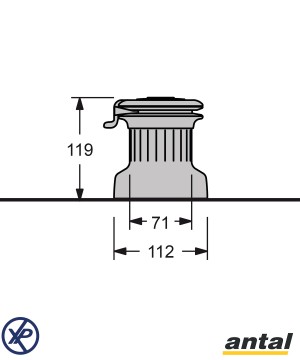

Data sheet
