Reference D540

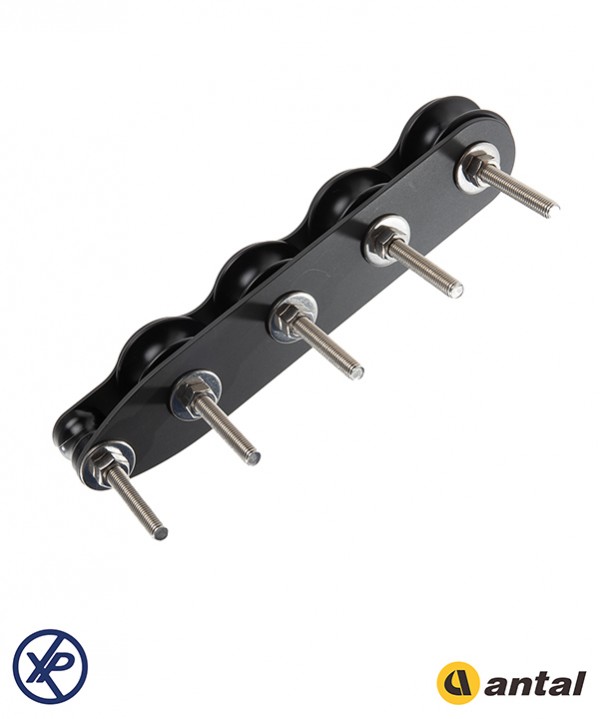

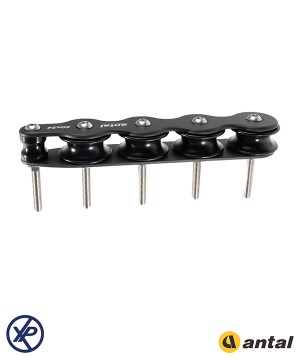

D540 - Organizer - 4 Sheaves Ø50 - SWL=1200Kg/Sheave - 5 screws M8- SWL BOÎTE 2400Kg
Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm. The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing.
The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main Composite Fibre bearing and 2 side ball bearings.
Mounting screws, nuts and washers are included.
These new organizers do not disassemble after tacking off the screws.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.

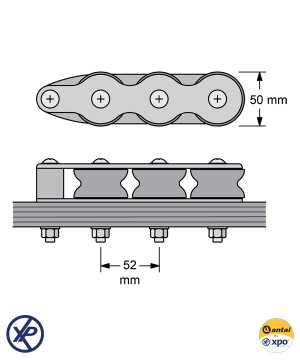

Data sheet
Specific References
D540 - Organizer - 4 Sheaves Ø50 - SWL=1200Kg/Sheave - 5 screws M8- SWL BOÎTE 2400Kg
D720 - Organizer - 2 Sheaves Ø70 - SWL=3 200Kg/Sheave - 3 screws M12- SWL BOÎTE 3200Kg
A2443P - 40mm triple deck organizer - black anodised aluminium
535.032 - Resin sheave box for V-grip - 5 sheaves - SWL=500Kg
524.052 - Aluminium sheave box for V-grip maxi - 4 sheaves - SWL=1000Kg
T660 - Organizer 6 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
T530 - Organizer 3 Sheaves "Tulip" Ø45 - SWL=1000Kg - Rope Ø12mm
D420 - Organizer - 2 Sheaves Ø40 - SWL=800Kg/Sheave - 3 screws M6- SWL BOÎTE 800Kg
T550 - Organizer 5 Sheaves "Tulip" Ø45 - SWL=1000Kg - Rope Ø12mm
D530 - Organizer - 3 Sheaves Ø50 - SWL=1200Kg/Sheave - 4 screws M8- SWL BOÎTE 1800Kg
D650 - Organizer - 5 Sheaves Ø60 - SWL=2200Kg/Sheave - 6 screws M10- SWL BOÎTE 5500Kg
D630 - Organizer - 3 Sheaves Ø60 - SWL=2200Kg/Sheave - 4 screws M10- SWL BOÎTE 3300Kg
526.042 - Aluminium sheave box for V-grip plus - 6 sheaves - SWL=1000Kg
A2423P - Triple 20mm deck organizer - black anodised aluminium
526.052 - Aluminium sheave box for V-grip maxi - 6 sheaves - SWL=1000Kg
D740 - Organizer - 4 Sheaves Ø70 - SWL=3 200Kg/Sheave - 5 screws M12- SWL BOÎTE 6400Kg
D550 - Organizer - 5 Sheaves Ø50 - SWL=1200Kg/Sheave - 6 screws M8- SWL BOÎTE 3000Kg
