Reference D650

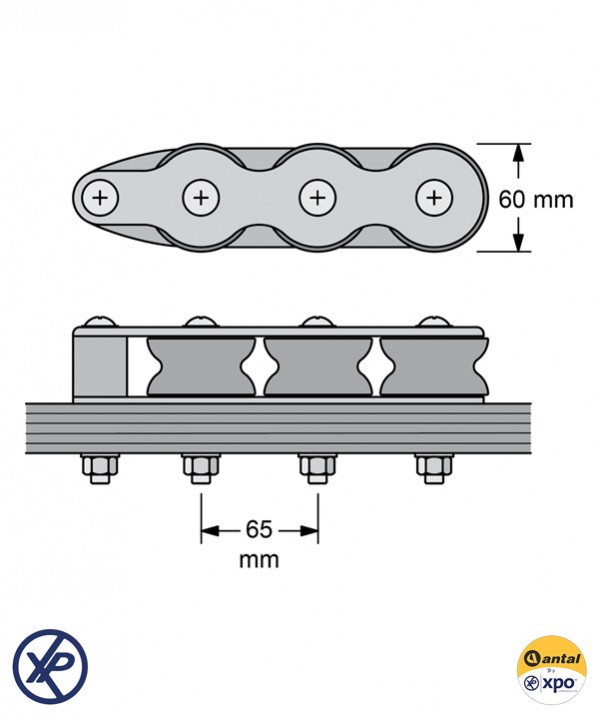

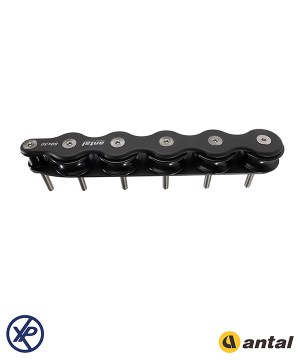

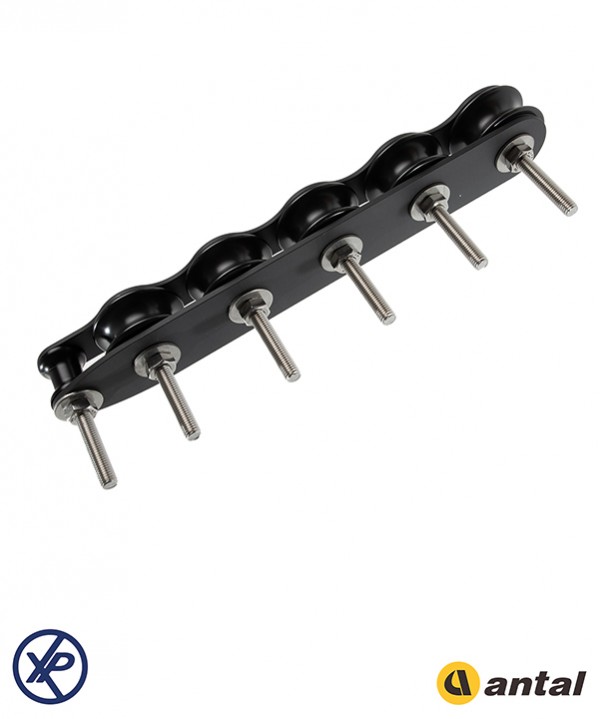

D650 - Organizer - 5 Sheaves Ø60 - SWL=2200Kg/Sheave - 6 screws M10- SWL BOÎTE 5500Kg
Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm. The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing.
The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main Composite Fibre bearing and 2 side ball bearings.
Mounting screws, nuts and washers are included.
These new organizers do not disassemble after tacking off the screws.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.
Data sheet
Specific References
D650 - Organizer - 5 Sheaves Ø60 - SWL=2200Kg/Sheave - 6 screws M10- SWL BOÎTE 5500Kg
D550 - Organizer - 5 Sheaves Ø50 - SWL=1200Kg/Sheave - 6 screws M8- SWL BOÎTE 3000Kg
533.032 - Resin sheave box for V-grip - 3 sheaves - SWL=500Kg
D760 - Organizer - 6 Sheaves Ø70 - SWL=3 200Kg/Sheave - 7 screws M12- SWL BOÎTE 9600Kg
D740 - Organizer - 4 Sheaves Ø70 - SWL=3 200Kg/Sheave - 5 screws M12- SWL BOÎTE 6400Kg
D450 - Organizer - 5 Sheaves Ø40 - SWL=800Kg/Sheave - 6 screws M6- SWL BOÎTE 2000Kg
D430 - Organizer - 3 Sheaves Ø40 - SWL=800Kg/Sheave - 4 screws M6- SWL BOÎTE 1200Kg
D630 - Organizer - 3 Sheaves Ø60 - SWL=2200Kg/Sheave - 4 screws M10- SWL BOÎTE 3300Kg
D720 - Organizer - 2 Sheaves Ø70 - SWL=3 200Kg/Sheave - 3 screws M12- SWL BOÎTE 3200Kg
D640 - Organizer - 4 Sheaves Ø60 - SWL=2200Kg/Sheave - 5 screws M10- SWL BOÎTE 4400Kg
A2433 - Triple 30mm "Dynamic" deck organizer - black anodised aluminium
513.032 - Resin sheave box for V-cam 814 - 3 réas - SWL=500Kg
522.031- Boîte à réa en résine pour V-cam 611 double et triple
A2423P - Triple 20mm deck organizer - black anodised aluminium
D730 - Organizer - 3 Sheaves Ø70 - SWL=3 200Kg/Sheave - 4 screws M12- SWL BOÎTE 4800Kg
524.042 - Aluminium sheave box for V-grip plus - 4 sheaves - SWL=1000Kg
D530 - Organizer - 3 Sheaves Ø50 - SWL=1200Kg/Sheave - 4 screws M8- SWL BOÎTE 1800Kg
