Reference D730

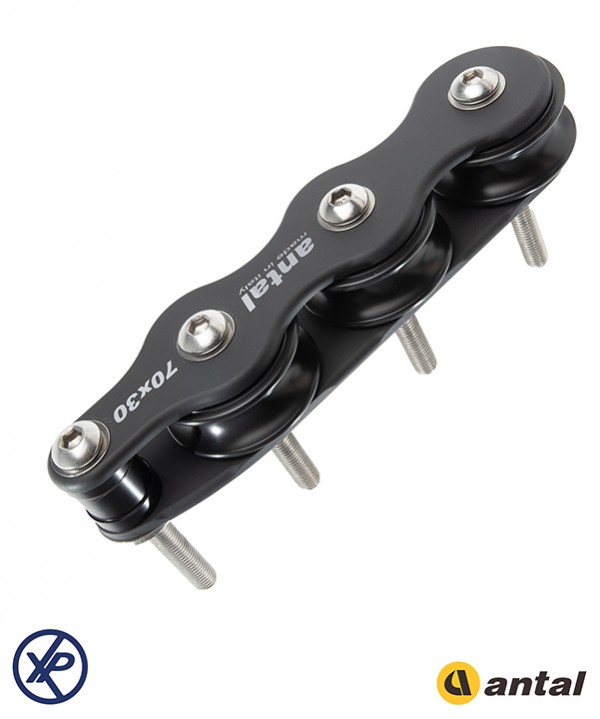

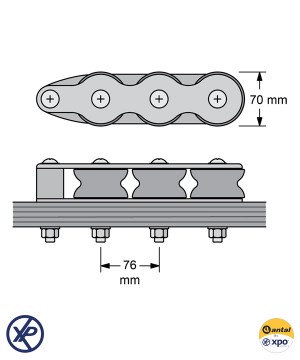

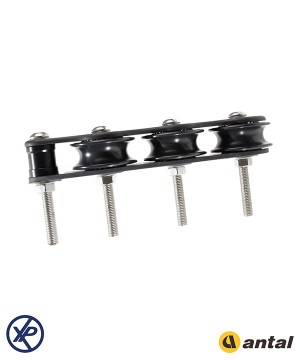

D730 - Organizer - 3 Sheaves Ø70 - SWL=3 200Kg/Sheave - 4 screws M12- SWL BOÎTE 4800Kg
Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm. The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing.
The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main Composite Fibre bearing and 2 side ball bearings.

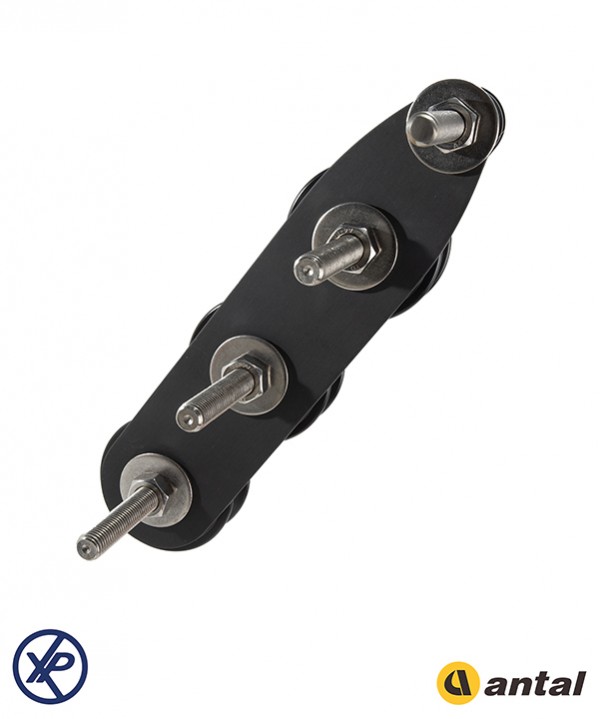

Mounting screws, nuts and washers are included.
These new organizers do not disassemble after tacking off the screws.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.
