Reference 10021_R

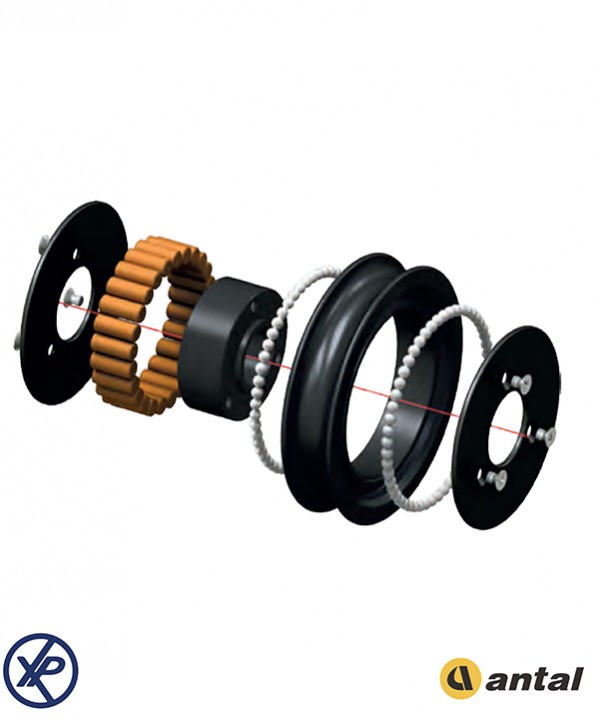

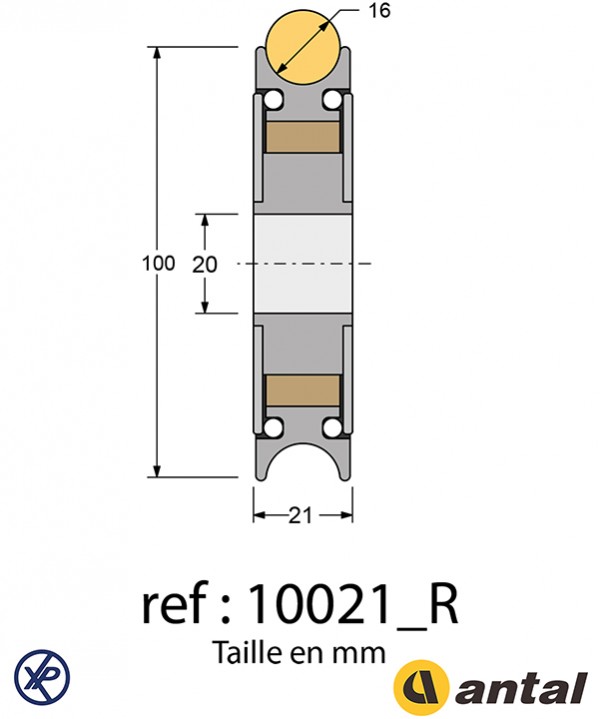

10021_R - Resin roller sheave Ø100 mm for OPF block - SWL = 2400 kg / MWL = 3200 kg
ROLLER BEARING SHEAVES

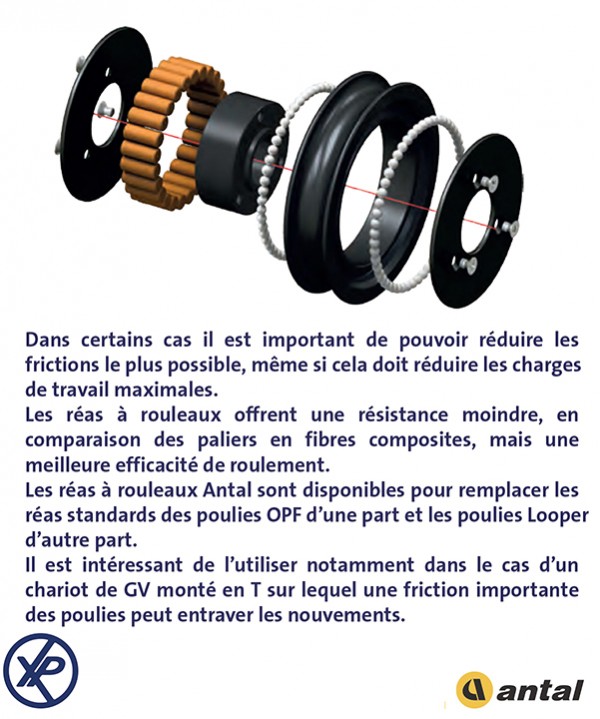

In some cases, it is important to reduce the friction of the blocks as much as possible, even if this leads to a reduction in the maximum loads. When compared with the Composite Fibre bushing version, the roller bearing shaves offer a lower resistance but a greater smoothness.
Antal offers a range of roller sheaves, which can replace the traditional sheaves on the OPF series blocks, and a range for the Looper series. The main characteristics of these sheaves are described in
the following tables.
Data sheet
10021_R - Resin roller sheave Ø100 mm for OPF block - SWL = 2400 kg / MWL = 3200 kg
010.01#SHKL - simple block - shackle on swivel - Ø100 - Rope Ø16mm - SWL=3500Kg
010.02#SSHK - simple block becket - snap hook on swivel - Ø100 - Rope Ø16mm - SWL=3500Kg
10121_R - Resin roller sheave Ø100 mm for LOOPER block - SWL = 2400 kg / MWL = 3200 kg
12025_A - Aluminium ball sheave Ø120 mm for OPF block - SWL = 5000 kg.
08019_F - Single resin ball sheave Ø80 mm for ANTAL OPF block - SWL 2200 kg
10021_A - Aluminium ball sheave Ø100 mm for OPF block - SWL = 3500 kg
