Reference 908.125#SHKL

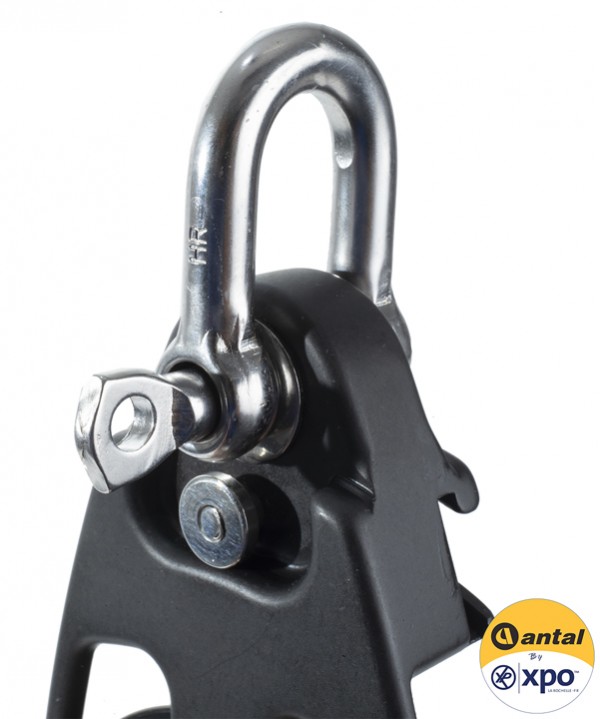

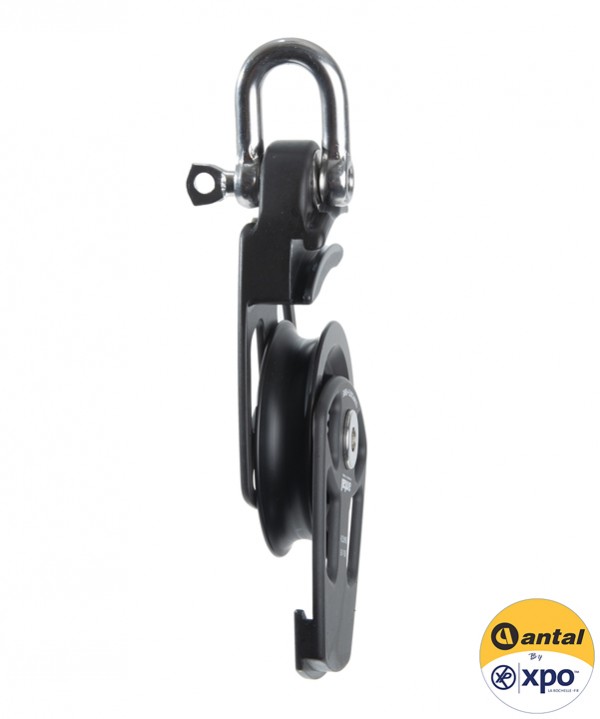

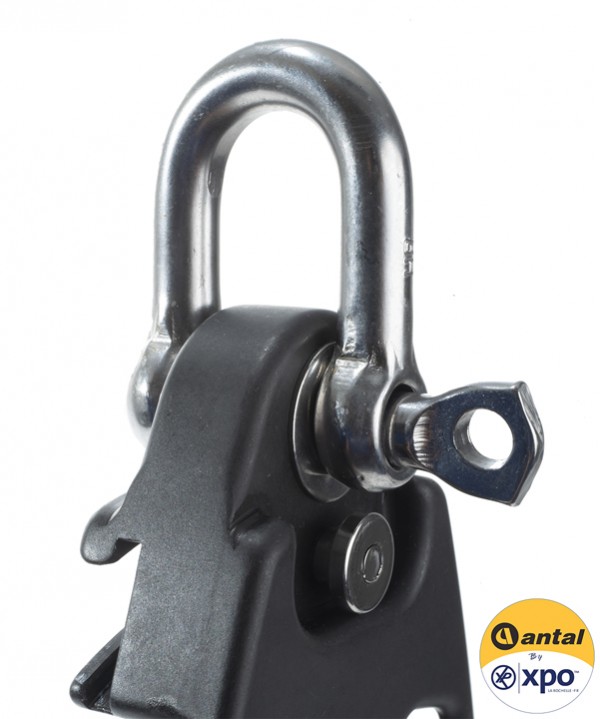

908.125#SHK - MAXI snatch block with shackle on fixed head - Ø120mm - SWL=4500 kg.
SNATCH BLOCKS (D = 90 AND 120 mm)
The cheekplate revolves around the sheave axle allowing the block to open; a safety pin, which engages automatically on closing, stops the block from opening accidentally.
MATERIALS – High-strength resin sheaves, hard anodized alloy cheekplates, high-strength stainless steel (17-4-PH) structural pins.
The block can be attached with webbing or better still with a fine highly resistant line made of material such as Kevlar or Spectra.
Model SN is supplied with a HR Wichard snap shackle.
Model SH is supplied with a shackle.
Data sheet
908.125#SHK - MAXI snatch block with shackle on fixed head - Ø120mm - SWL=4500 kg.
918.095 - MAXI snatch block - Ø90mm - Stand Up Block on Pad-eye Plate with 4 Fixing Points - SWL=2500kg.
9031 - Mini snatch block with shackle 5mm - Sheave Ø32mm - SWL= 250 kg - MAX rope 8mm
A1376 - snatch block - Sheave Ø40mm - With shackle on swivel - MWL=200 Kg
LS054 - Looper snatch block with loop - Ø54x16 mm - SWL=3500kg.
DBL44 - DYNABLOCK 44 snatch block - without anchoring system SWL=600kg - Rope Ø10mm.
908.095#WB - MAXI snatch block with strap head - Ø pulley 90mm - SWL=2500kg.
9060#WB - snatch block with strap head - Ø 60mm - SWL=1300kg.
LL046 - Looper snatch block without loop - Ø 46x14 mm - SWL=2200kg.
908.125#SSHK - MAXI snatch block with swivel - Ø120mm - SWL=4500 kg.
9030 - Mini snatch block For line connection - Sheave Ø32mm - SWL= 250 kg - MAX rope 8mm
918.125 - MAXI snatch block - Ø120 - Stand Up block on Pad-eye plate with 4 fixing points - SWL=4500kg.
