Reference 908.125#SSHK

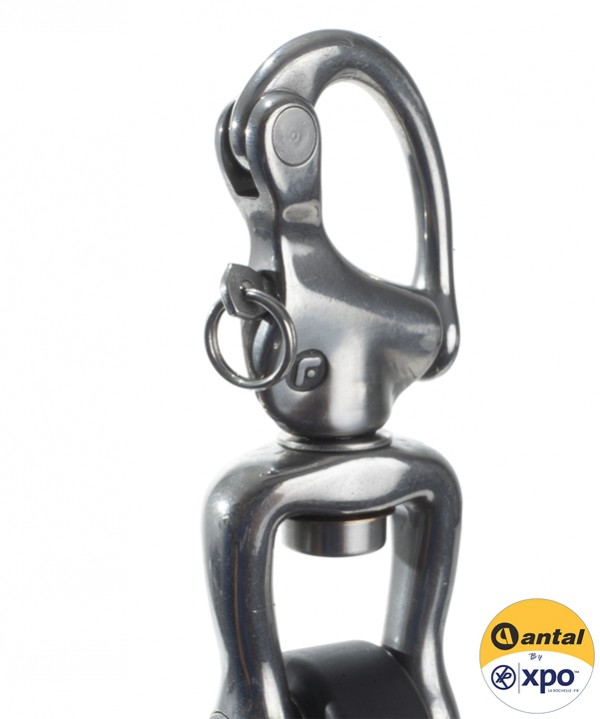

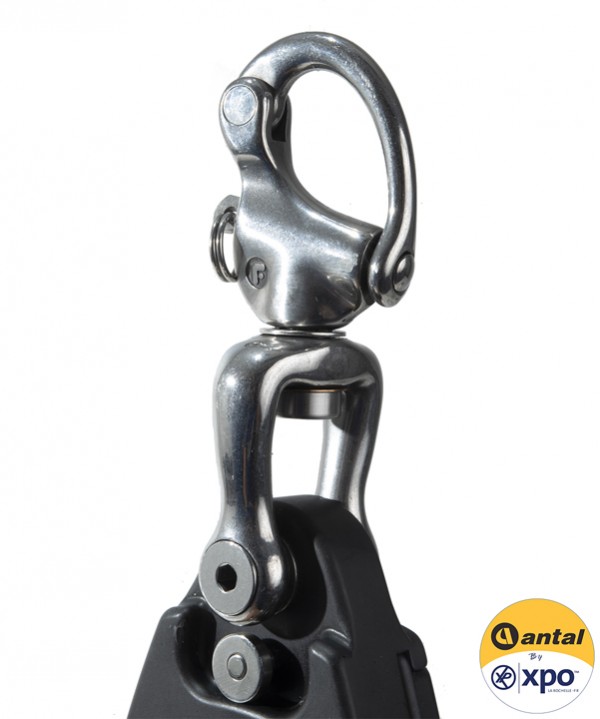

908.125#SSHK - MAXI snatch block with swivel - Ø120mm - SWL=4500 kg.
SNATCH BLOCKS (D = 90 AND 120 mm)
The cheekplate revolves around the sheave axle allowing the block to open; a safety pin, which engages automatically on closing, stops the block from opening accidentally.
MATERIALS – High-strength resin sheaves, hard anodized alloy cheekplates, high-strength stainless steel (17-4-PH) structural pins.
The block can be attached with webbing or better still with a fine highly resistant line made of material such as Kevlar or Spectra.
Model SN is supplied with a HR Wichard snap shackle.
Model SH is supplied with a shackle.
Data sheet
