SNATCH BLOCK ON PAD-EYE Ø90
Reference 928.095

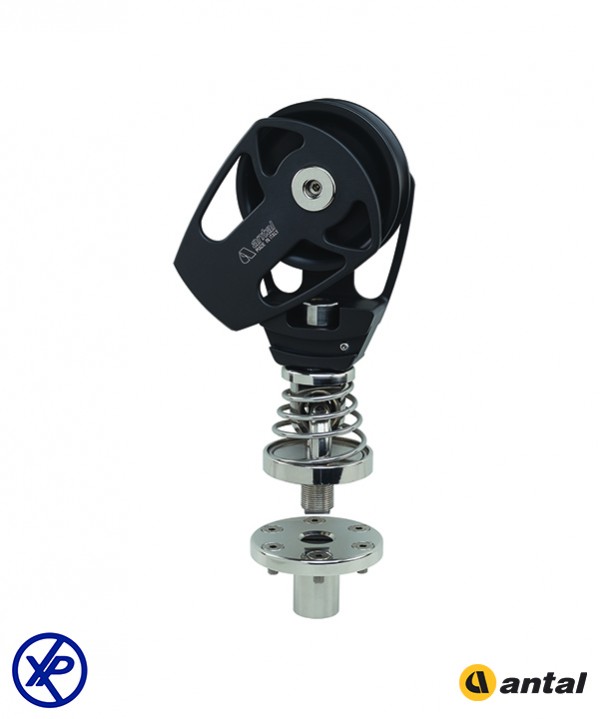

928.095 - MAXI snatch block - Ø90 - Stand Up block on screw-on Pad-eye plate - SWL=2500kg.
SNATCH BLOCK ON PAD-EYE (D = 90, 120 AND 150 mm)
Three snatch blocks 90, 120 and 150 mm diameter, on pad-eye and stand-up spring are available. The cheekplate revolves to open the block, a safety pin stops the block from opening.
Above blocks are available also on screwed pad-eye.
928.095
Data sheet
- Fitting type
- Snatch block
- Rope diameter ( mm )
- 18
- Nber of sheaves
- 1
- Weight ( g )
- 1140
- Sheave diameter ( mm )
- 90
- Block specificity
- Stand-up
- Block type
- Opening, Simple
- Bearing type
- Composite fibre
- Safe Working Load ( Kg )
- 2500
- Type and number of balls
- Delrin
- Sheave material
- Resin
- Block material
- Aluminium
- Ø Embase (mm)
- 80
928.095 - MAXI snatch block - Ø90 - Stand Up block on screw-on Pad-eye plate - SWL=2500kg.
