GV 4RACE MAXI 47 TRAVELER

Reference 614.214

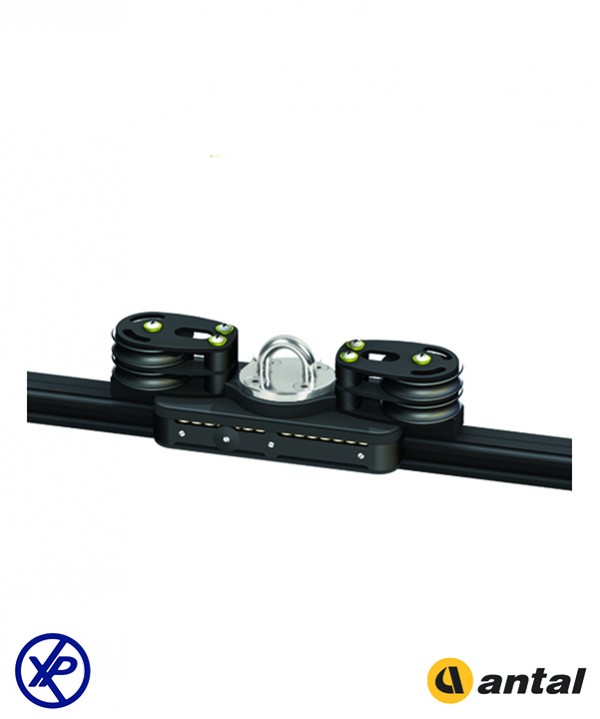

614.214 - 230mm traveller for mainsail sheet for 4RACE 47x32 track - 2 double return sheaves Ø75mm - With pad eye - Traveller control 4:1 - SWL=3.8T

€2,584.80
Prix public TTC conseillé

Tax included

Quantity

Add to wishlist

You must be logged

MAINSHEET SYSTEM, MAXI 47 TRACK – SIZE 230 TRAVELLER

One 120 mm block, OPF series, is fitted with a padeye and spring on the car for the mainsheet; one or two 75 mm sheaves for the car control. Car control 2:1, 3:1 and 4:1 are shown below.
SWL – 3800 kg

Reference 614.214

Data sheet

Fitting type: Mainsail car
Track type: 4RACE
Power cars control: 4:1
Specificity: 2 sheaves 75mm, Padeye
Track size: 47x31.5
Traveler Size ( mm ): 234
Largeur chariot ( mm ): 107
Control sheave diameter (mm): 75
Safe Working Load ( Kg ): 3800
Type and number of balls: 86 Delrin + 86 Torlon
Poulie ( mm ): Non fournie

Download

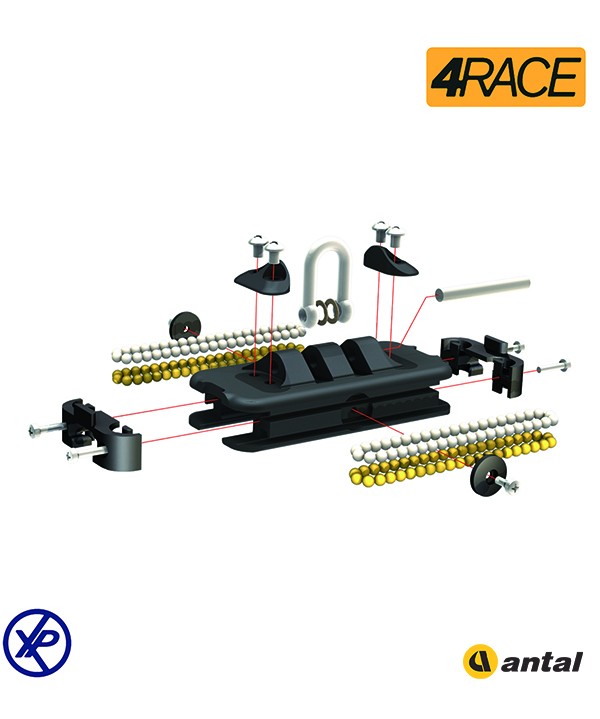

614.214_Exploded-View.pdf

Download (624.59KB)

Maxi-47-230-Exploded.pdf

Download (525.12KB)
