Reference 614.219

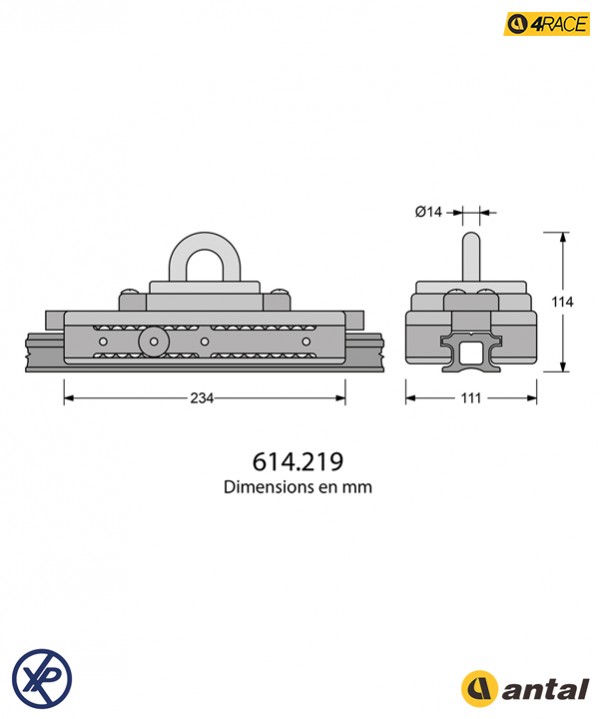

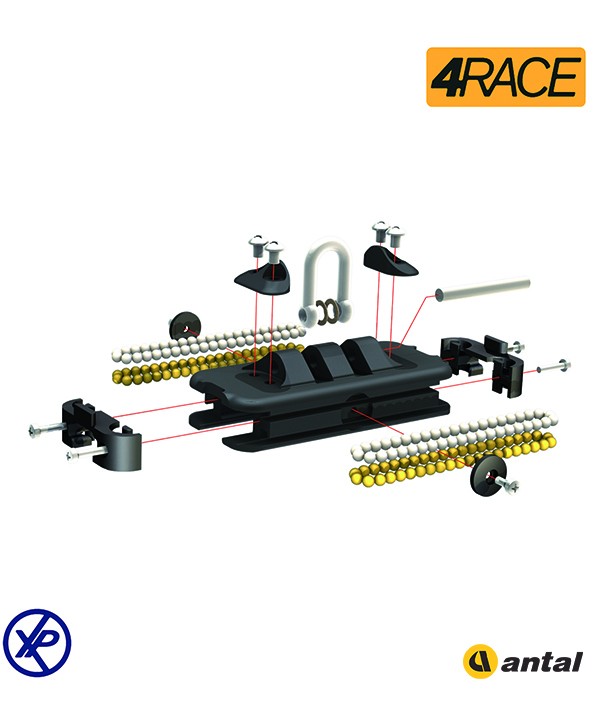

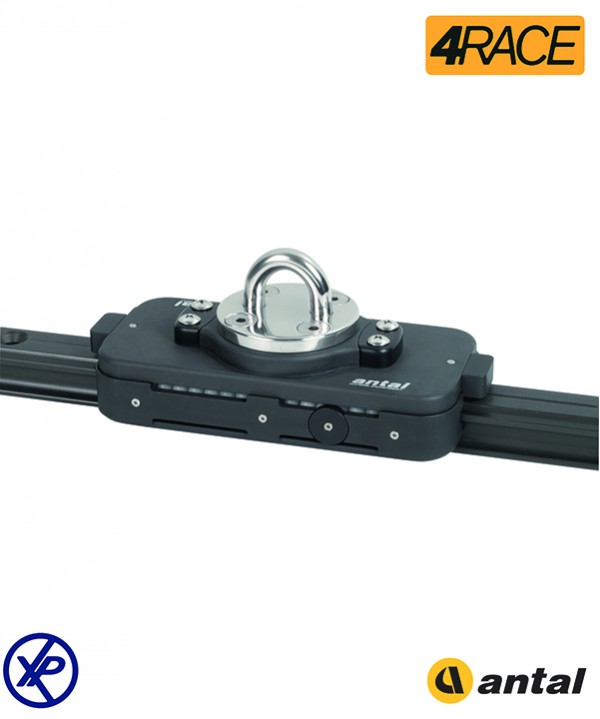

614.219 - 4Race traveller for 47x32 track - Length: 234mm - 86 Delrin balls + 86 Torlon balls - SWL=3800Kg
MAINSHEET SYSTEM, MAXI 47 TRACK – SIZE 230 TRAVELLER
One 120 mm block, OPF series, is fitted with a padeye and spring on the car for the mainsheet; one or two 75 mm sheaves for the car control. Car control 2:1, 3:1 and 4:1 are shown below.
SWL – 3800 kg
Data sheet
614.219 - 4Race traveller for 47x32 track - Length: 234mm - 86 Delrin balls + 86 Torlon balls - SWL=3800Kg
614.214 - 230mm traveller for mainsail sheet for 4RACE 47x32 track - 2 double return sheaves Ø75mm - With pad eye - Traveller control 4:1 - SWL=3.8T
614.210 - 230mm traveller for 4RACE 47x32 track with pad eye for mainsail sheet - SWL=3.8T
614.213 - 230mm traveller for mainsail sheet for 4RACE 47x32 track - 2 single return sheaves Ø75mm with fixed point - With pad eye - Traveller control 3:1 - SWL=3.8T
614.210_1024 - 230mm traveller for 4RACE 47x32 track for mainsail sheet - With 2 single OPF blocks Ø100mm - SWL=3.8T
614.212_1224 - 230 mm mainsail traveller for 4RACE 47x32 track - 2 single Ø75 mm return blocks + 1 single Ø120 mm OPF block - 2:1 traveller control - SWL=3.8T
614.214_1224 - 230mm traveller for mainsail sheet for 4RACE 47x32 track - 2 double return sheaves Ø75mm + 1 single OPF block Ø120mm - 4:1 traveller control - SWL=3.8T
614.212 - 230mm mainsail traveller for 4RACE 47x32 track - 2 single return blocks Ø75mm - With pad eye - 2:1 traveller control - SWL=3.8T
614.213_1224 - 230mm traveller for mainsail sheet for 4RACE 47x32 track - 2 single Ø75mm return sheaves + 1 single OPF Ø120mm block - Traveller control 4:1 - SWL=3.8T
