Reference CH0608_2

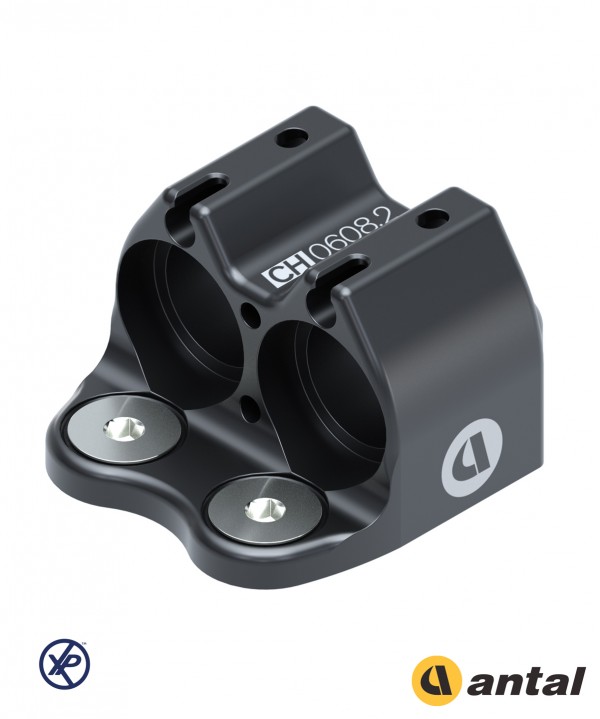

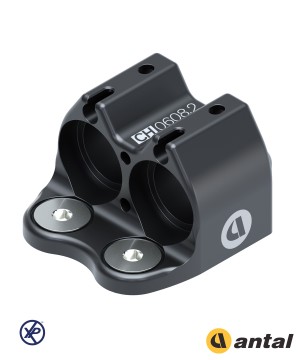

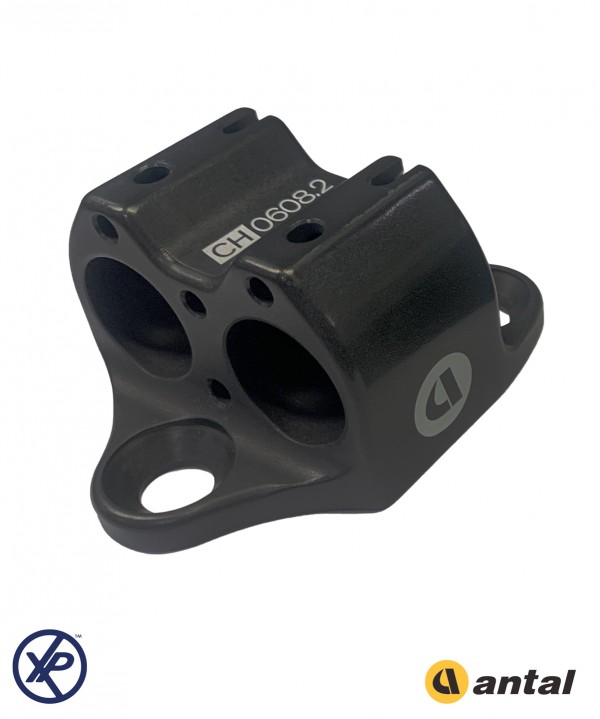

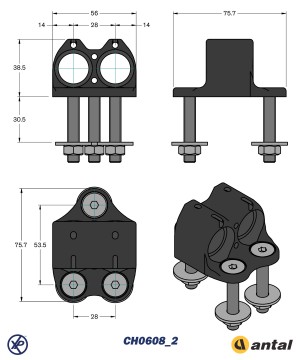

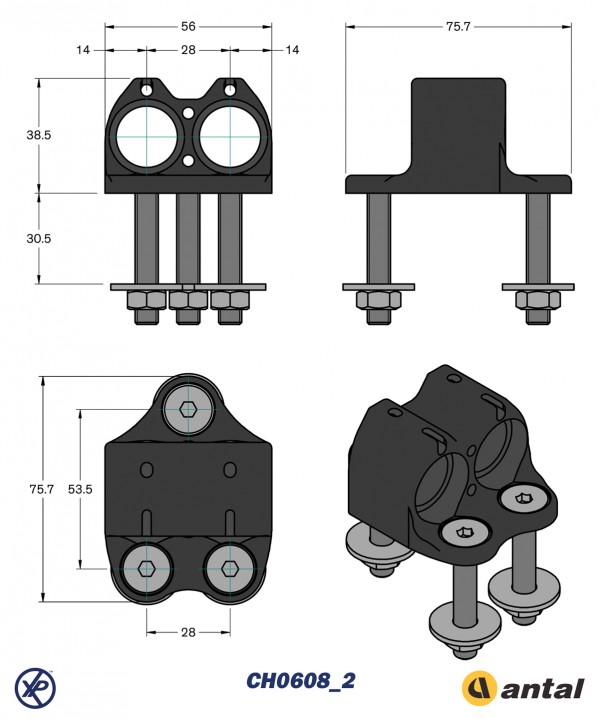

CH0608_2 - "Constrictor®" double mounting plate for 6–8 mm textile inserts – hard-anodised black aluminium
Load ratings by insert size:
Ø 6mm – Breaking load: 750 kg
Ø 8mm – Breaking load: 1,150 kg
Base specifically engineered for the integration of Constrictor® textile inserts. This technical solution optimises the lead and control adjustment system onboard.
Compatibility: Constrictor® textile inserts Ø6mm and Ø8mm
Optimised fastening: reduced number of fixing screws compared to standard bases, thereby decreasing:
- Overall system weight
- Deck drilling constraints
- Risk of water ingress
Ease of maintenance: insert removal and refitting simplified without full base disassembly
Control lead: passage drillings positioned at upper and lower sections for a straight-line run and rational load distribution

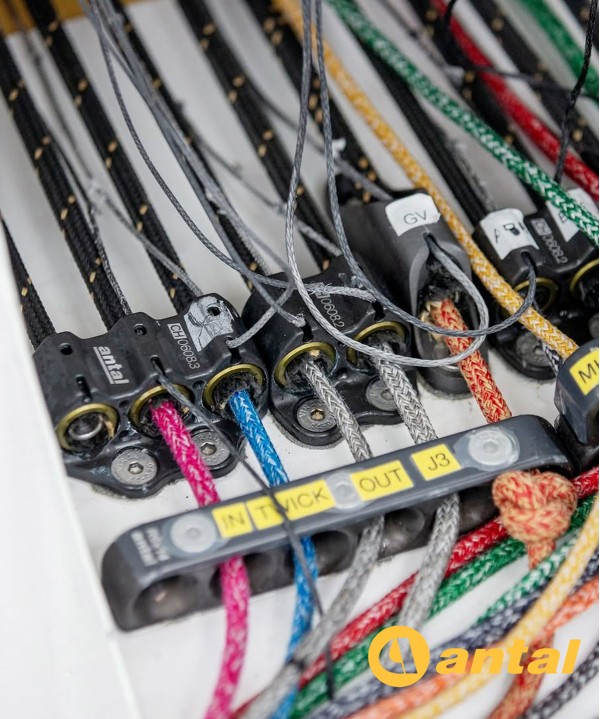

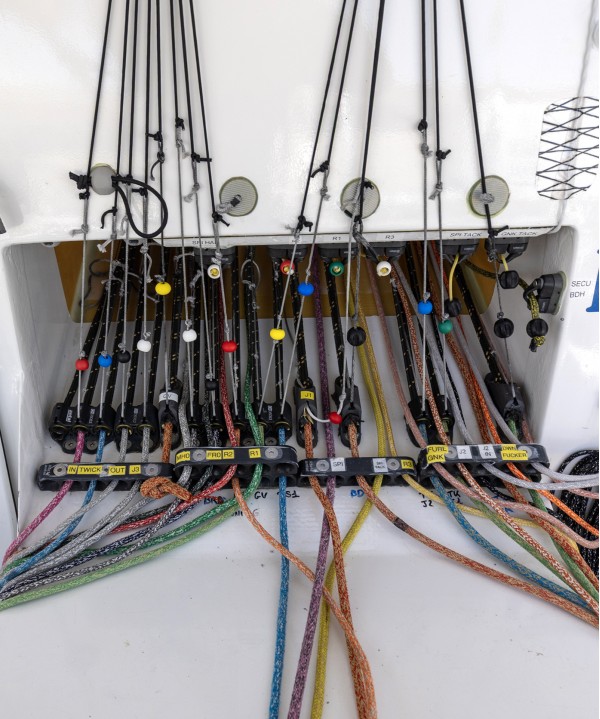

Sheet leads, control lines, return arms, kicker/vang circuits.

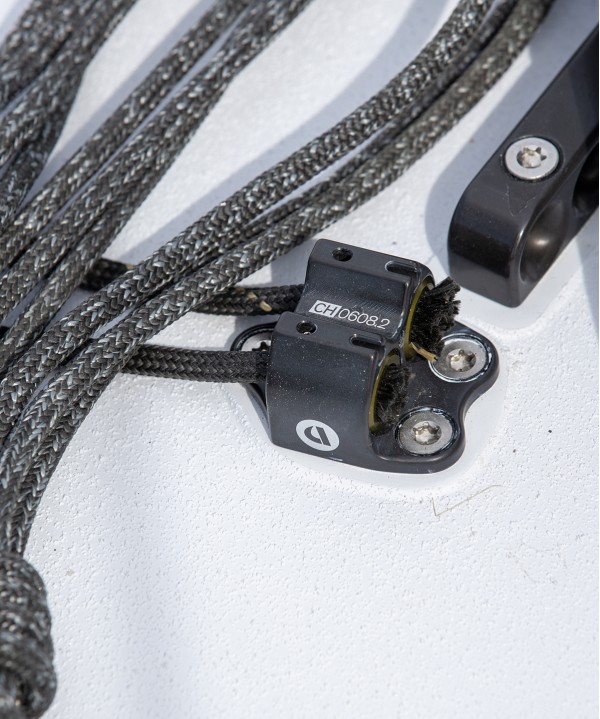

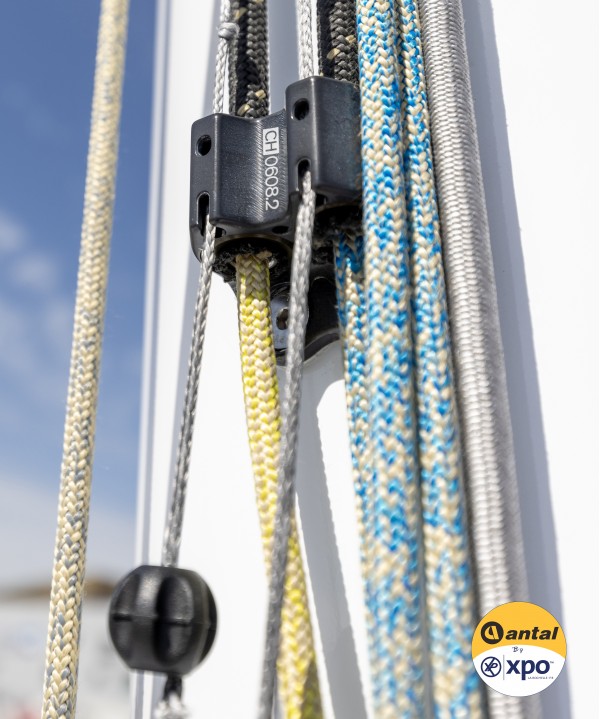

Mounting: On deck, coaming, coachroof or bulkhead depending on rigging configuration.
