TITANIUM THROUGH DECK BUSH - Ø12MM -...
A8539-9#Ti - TITANIUM threaded through-bolt - Internal diameter 12 mm - External diameter 16 mm - Depth 9-14 mm

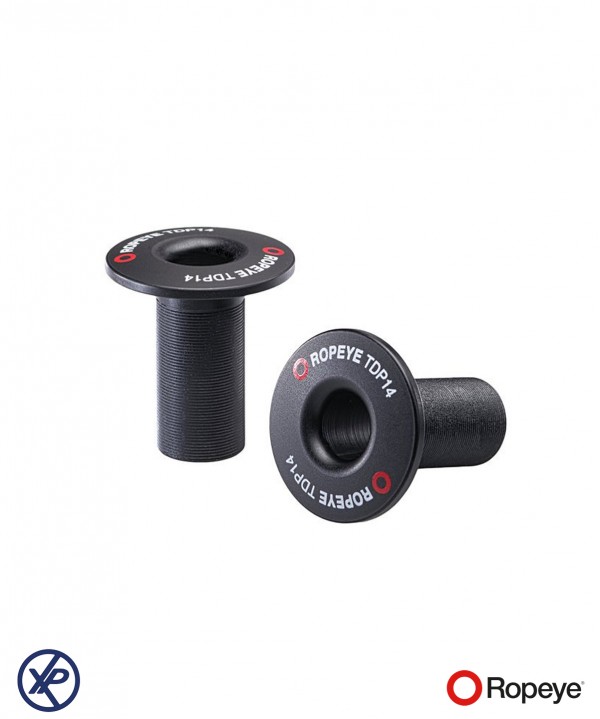

THROUGH DECK PUSHING 10MM
Reference ROTDB14
ROTDB14 - Anodised aluminium trough deck pushing - Ø10mm - Length 30mm - Ropeye
Ropeye Through Deck Pushing is designed to protect deck for sheaving using Ropeye Loop or any other through deck application.
TDP comes in a lenght of 30mm which needs to be cut according to deck thickness
TDP 12 – Inner diam 8mm / Outer diam 12mm
TDP 14 – Inner diam 10mm / Outer diam 14mm
TDP 16 – Inner diam 12mm / Outer diam 16mm
TDP 18 – Inner diam 14mm / Outer diam 18mm
ROTDB14

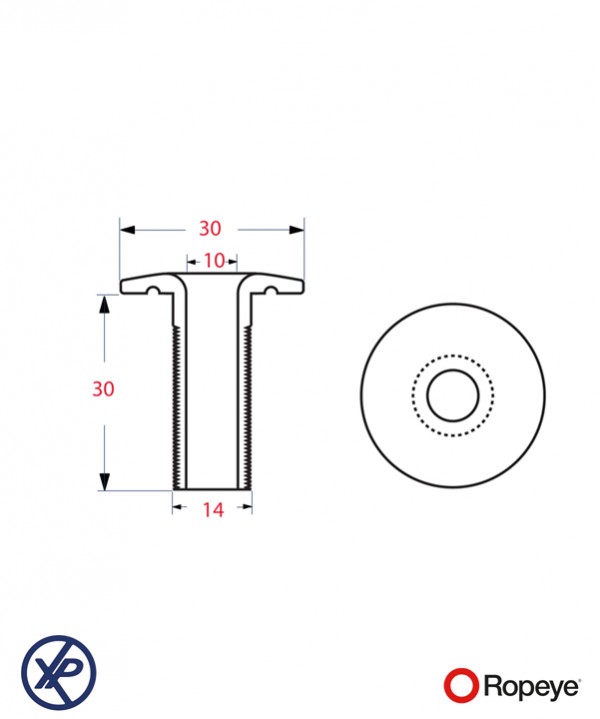

Data sheet
- Fitting type
- bulkhead penetration
- Length ( mm )
- Longueur ( mm )
- Materials
- Anodised aluminium
- Eye diameter (mm)
- 10
- External diameter (mm)
- 30
- Diamètre perçage pont ( mm )
- 14
- Poids ( g )
- 10
ROTDB14 - Anodised aluminium trough deck pushing - Ø10mm - Length 30mm - Ropeye
