Reference A8139

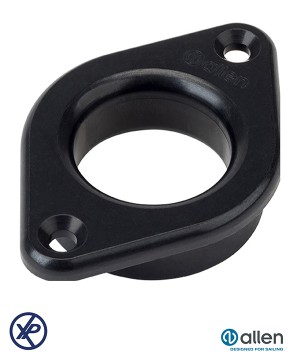

A8139 - Aluminium through deck bush - inner diameter 23mm - outer diameter 33mm - Depth 9mm - 2 external screws
Through Deck Bush With Flang
Flanged nylon deck bush.
Also known as a through deck fairlead or bush, rope guide and thru-deck bush.
Flanged deck bushes feature a wider surface area for more protection and two fixing holes. This style of bush allows for a simple installation which only requires two screws and no messy bonding agent or silicone.
Typically used to guide a rope or wire through a surface whilst protecting both the rope and the surface from wear.
To install, simply drill a hole to match the external diameter of the bush and then push the bush into the hole. Use two screws or bolts to hold this style of bush in place.
Injection moulded for a lightweight and economical product. However, we suggest using one of the other material options if you plan to have a fast-running control line as nylon is not as hard-wearing.
Data sheet
Specific References
A8139 - Aluminium through deck bush - inner diameter 23mm - outer diameter 33mm - Depth 9mm - 2 external screws
A8439-29#Ti - TITANIUM threaded through-bolt - Internal diameter 8 mm - External diameter 13 mm - Depth 35-40 mm
A8040-34-O - Aluminium through deck bush inner diameter 34x8mm - anodisé orange - Length 44mm
A8539-21#Ti - TITANIUM threaded through-bolt - Internal diameter 12mm - External diameter 16mm - Depth 21-26mm
A8539-9 - Passe-pont Fileté en aluminium - Øintérieur 12mm - Øextérieur 16mm - Profondeur 9-14mm
A8239 - Aluminium through deck bush - inner diameter 13mm - outer diameter 22mm - Depth 9mm - 2 external screws
A4539-14 - Acetal through deck bush to stick - inner diameter 13mm - outer diameter 16mm - Depth 14mm with reinforcement - Stainless steel eye
A0040 - Inox through deck bush - inner diameter 13x35mm - outer diameter 21X43mm - Depth 19mm
A8439-7#Ti - TITANIUM through deck bush - Internal diameter 8 mm - Depth 07-09 mm - External diameter 13 mm
SD10 - Low friction deflector fairlead S-DRIVE - For mast & deck - Thickness 10mm - SWL=1800 Kg
RODTDB18 - Double deck pass-through - Ø14mm - Available in 4 depths - Anodised aluminium
A8539-25#Ti - TITANIUM threaded through-bolt - Internal diameter 12 mm - External diameter 16 mm - Depth 25-30 mm
A4439 - Acetal through deck bush to stick - inner diameter 6mm - outer diameter 13mm - Depth 8mm with reinforcement - Stainless steel eye
RODTDB14 - Double deck pass-through - Ø12mm - Available in 4 depths - Anodised aluminium
A8439-25#Ti - TITANIUM threaded through-bolt - Internal diameter 8mm - External diameter 12mm - Depth 25-30mm
SD08 - Low friction deflector fairlead S-DRIVE - For mast & deck - Thickness 8mm - SWL=1000 Kg
