Reference ROTDB18

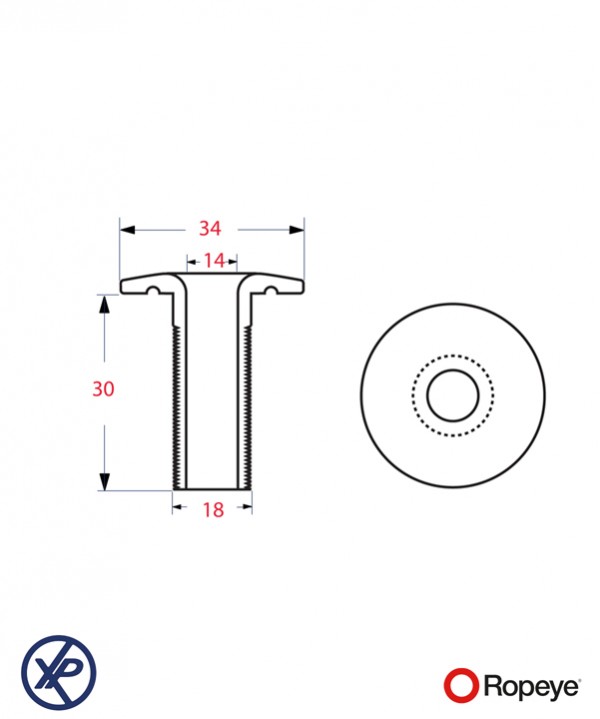

ROTDB18 - Anodised aluminium bulkhead fitting - Ø14mm - Length 30mm - Ropeye

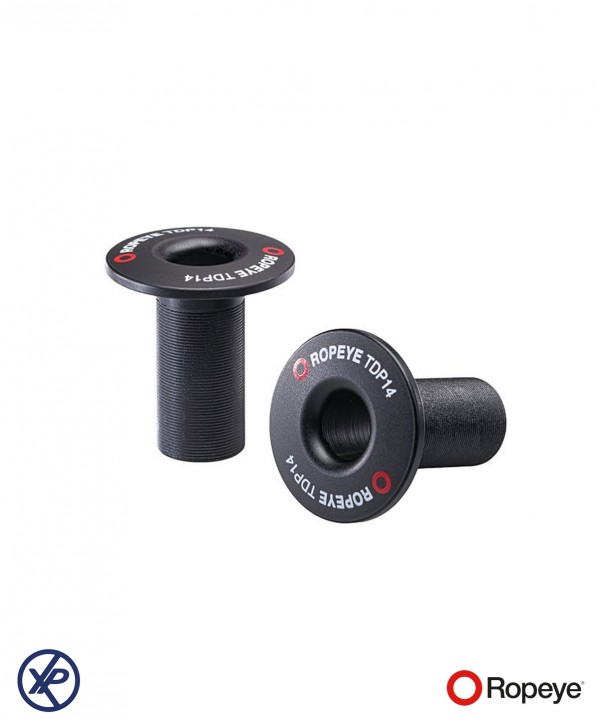

Ropeye Through Deck Pushing is designed to protect deck for sheaving using Ropeye Loop or any other through deck application.
TDP comes in a lenght of 30mm which needs to be cut according to deck thickness
TDP 12 – Inner diam 8mm / Outer diam 12mm
TDP 14 – Inner diam 10mm / Outer diam 14mm
TDP 16 – Inner diam 12mm / Outer diam 16mm
TDP 18 – Inner diam 14mm / Outer diam 18mm
Data sheet
