Reference A8439-17#Ti#Cx0

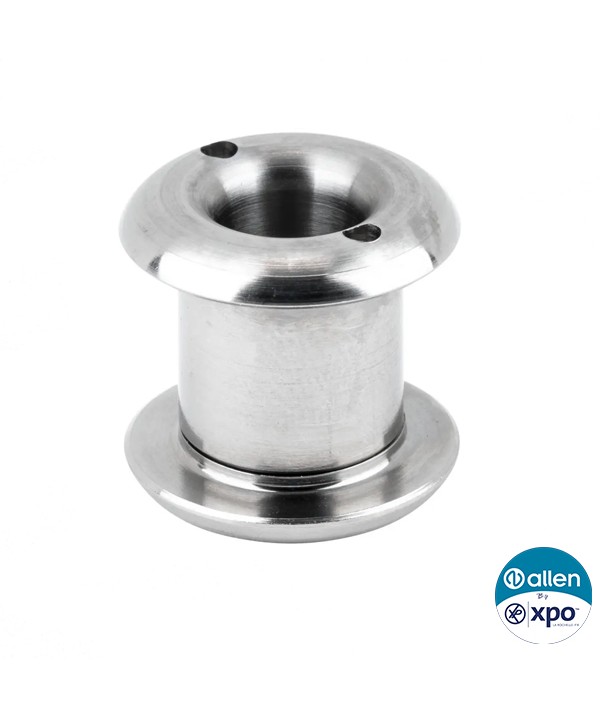

A8439-17#Ti - TITANIUM Threaded Through-Bolt - Depth 17-22 mm - Internal diameter 8 mm - External diameter 13 mm
Threaded titanium deck bush.
Also known as a through deck fairlead or bush, rope guide and thru-deck bush.
Threaded deck bushes feature two small holes to grip each part with circlip pliers, which then allow the bush to be screwed tight into the surface. This design protects both sides of the surface and accommodates for a range of thicknesses. For extra security, a bonding agent can be used to hold the bush in place.
Typically used to guide a rope or wire through a surface whilst protecting both the rope and the surface from wear.
To install, simply drill a hole to match the external diameter of the bush and then push the bush into the hole. Use a set of circlip pliers to tighten each part into itself.
Titanium deck bushes are strong and ideal for carbon surfaces. Titanium does not react with carbon in the same way Aluminium does. So allow for easy fitting to carbon surfaces without the need for an electrolysis-isolating sealant.
Data sheet
A8439-17#Ti - TITANIUM Threaded Through-Bolt - Depth 17-22 mm - Internal diameter 8 mm - External diameter 13 mm
A8439-13#Ti - TITANIUM Threaded Through-Bolt - Internal diameter 8 mm - Depth 13-18 mm - External diameter 13 mm
A0040 - Inox through deck bush - inner diameter 13x35mm - outer diameter 21X43mm - Depth 19mm
RODTDB18 - Double deck pass-through - Ø14mm - Available in 4 depths - Anodised aluminium
A8539-29#Ti - TITANIUM threaded through-bolt - Internal diameter 12 mm - External diameter 16 mm - Depth 29-34 mm
ROTDB14 - Anodised aluminium trough deck pushing - Ø10mm - Length 30mm - Ropeye
A8539-25#Ti - TITANIUM threaded through-bolt - Internal diameter 12 mm - External diameter 16 mm - Depth 25-30 mm
A0439 - Acetal through deck bush to stick - inner diameter 13mm - Depth 8mm
A4539-14 - Acetal through deck bush to stick - inner diameter 13mm - outer diameter 16mm - Depth 14mm with reinforcement - Stainless steel eye
A8539-21#Ti - TITANIUM threaded through-bolt - Internal diameter 12mm - External diameter 16mm - Depth 21-26mm
A8439-13 - Passe-pont Fileté en aluminium - Øintérieur 8mm - Profondeur 13-18mm - Øextérieur13mm
A8439-7 - Aluminium threated through desck bush - inner diameter 8mm - Depth 07-09mm - outer diameter 13 mm
A8539-7#Ti - TITANIUM threaded through-bolt - Internal diameter 12 mm - External diameter 16 mm - Depth 07-09 mm
A8339 - Aluminium through deck bush - inner diameter 15mm - outer diameter 25mm - Depth 9mm - 2 external screws
A8539-35 - Aluminium threated through desck bush - inner diameter 12mm - outer diameter 16mm - Depth 35-40mm
A8439-29#Ti - TITANIUM threaded through-bolt - Internal diameter 8 mm - External diameter 13 mm - Depth 35-40 mm
