Reference 540.120

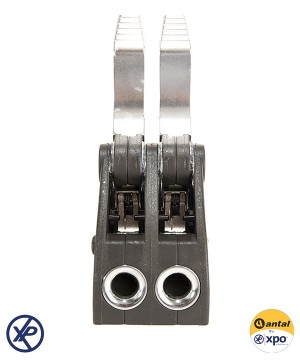

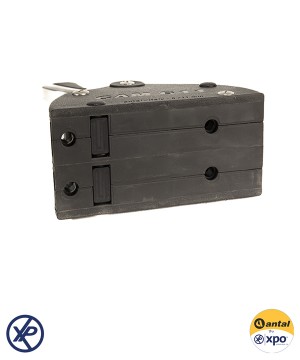

540.120 - V-CAM 611 Clutche Silver double - Rope Ø6mm - Clutche with V-shaped CAM and ergonomic handle in polished and silver anodised aluminium - MWL=400Kg
V-GRIP SYSTEM CLUTCHES
Cam 611 for line 6 to 10 mm is available in single, double and triple, as well as horizontal.
Cam 611 has a box structure in UV-resistant resin with steel reinforcements, an extruded aluminium base, wear-resistant bronze cam mechanism, and stainless steel aligning bushing.
The clutch can be completely dismantled for simple maintenance. Line retrieval can be achieved with the lever closed, and the cam mechanism guarantees easy opening even under heavy load.
V-CAM 611 WITH V-CAM
V-Cam 611 is a new model with a V-Cam, for lines from 6 to 8 mm.
This new version supports much higher loads: 400 kg on the 6 mm line and 600 kg on the 8 mm.
V-CAM 611 SILVER
Both Cam 611 and V-Cam 611 clutches are now available in the silver series: with a new ergonomic, polished and silver anodized aluminium lever
Data sheet
540.120 - V-CAM 611 Clutche Silver double - Rope Ø6mm - Clutche with V-shaped CAM and ergonomic handle in polished and silver anodised aluminium - MWL=400Kg
500.130 - V-CAM 611 Clutche triple - Rope Ø6mm - Clutche with V-shaped CAM- MWL=400Kg
541.130 - V-CAM 611 Clutche Silver triple - Rope Ø8mm - Clutche with V-shaped CAM and ergonomic handle in polished and silver anodised aluminium - MWL=600Kg
541.110 - V-CAM 611 Clutche Silver simple - Rope Ø8mm - Clutche with V-shaped CAM and ergonomic handle in polished and silver anodised aluminium - MWL=600Kg
501.120 - V-CAM 611 Clutche double - Rope Ø8mm - Clutche with V-shaped CAM- MWL=600Kg
540.130 - V-CAM 611 Clutche Silver triple - Rope Ø6mm - Clutche with V-shaped CAM and ergonomic handle in polished and silver anodised aluminium - MWL=400Kg
501.210 - V-CAM 611 Clutche simple horizontal - Rope Ø8mm - Clutche with V-shaped CAM- MWL=600Kg
501.110 - V-CAM 611 Clutche simple - Rope Ø8mm - Clutche with V-shaped CAM- MWL=600Kg
500.120 - V-CAM 611 Clutche double - Rope Ø6mm - Clutche with V-shaped CAM- MWL=400Kg
500.110 - V-CAM 611 Clutche simple - Rope Ø6mm - Clutche with V-shaped CAM- MWL=400Kg
541.210 - V-CAM 611 Clutche Silver simple horizontal - Rope Ø8mm - Clutche with V-shaped CAM and ergonomic handle in polished and silver anodised aluminium - MWL=600Kg
500.210 - V-CAM 611 Clutche simple horizontal - Rope Ø6mm - Clutche with V-shaped CAM- MWL=400Kg
541.120 - V-CAM 611 Clutche Silver double - Rope Ø8mm - Clutche with V-shaped CAM and ergonomic handle in polished and silver anodised aluminium - MWL=600Kg
540.210 - V-CAM 611 Clutche Silver simple horizontal- CAM en V - Rope Ø6mm - Clutche with V-shaped CAM and ergonomic handle in polished and silver anodised aluminium - MWL=400Kg
501.130 - V-CAM 611 Clutche triple - Rope Ø8mm - Clutche with V-shaped CAM- MWL=600Kg
