Reference D460

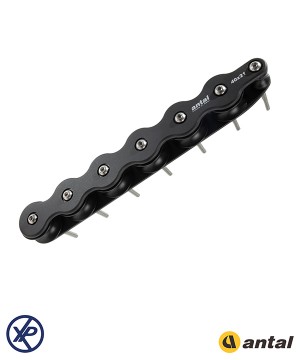

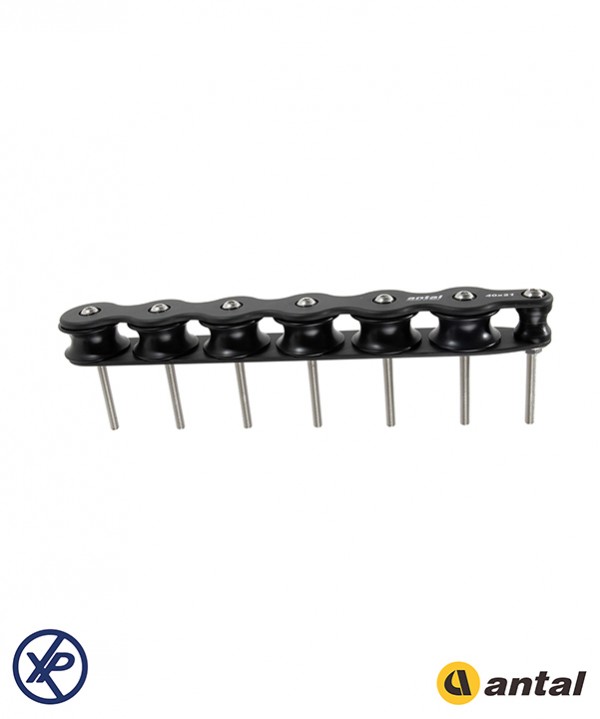

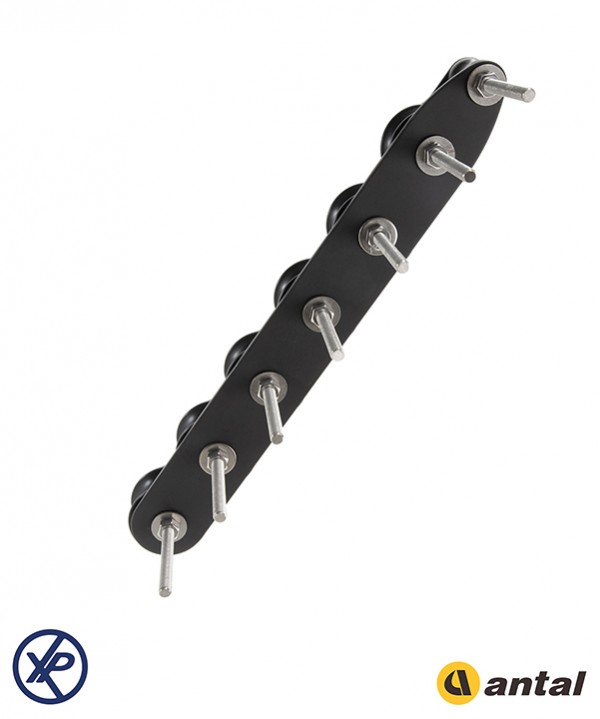

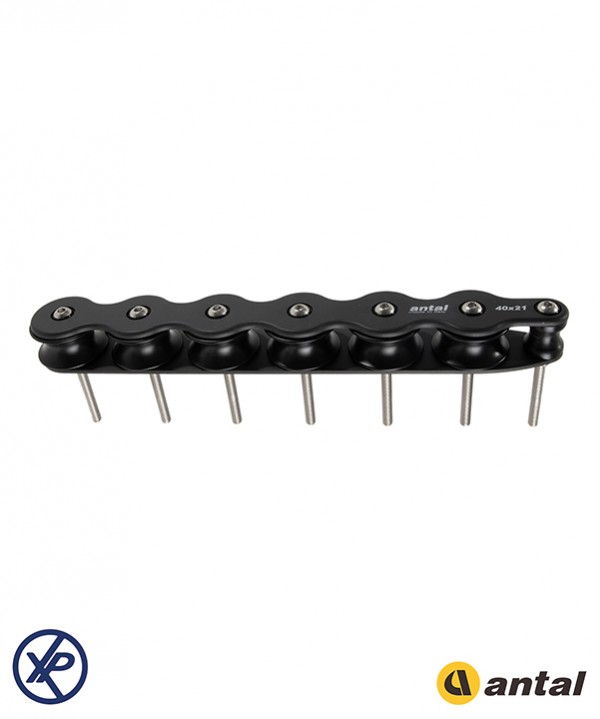

D460 - Organizer - 6 Sheaves Ø40 - SWL=800Kg/Sheave - 7 screws M6- SWL BOÎTE 2400Kg

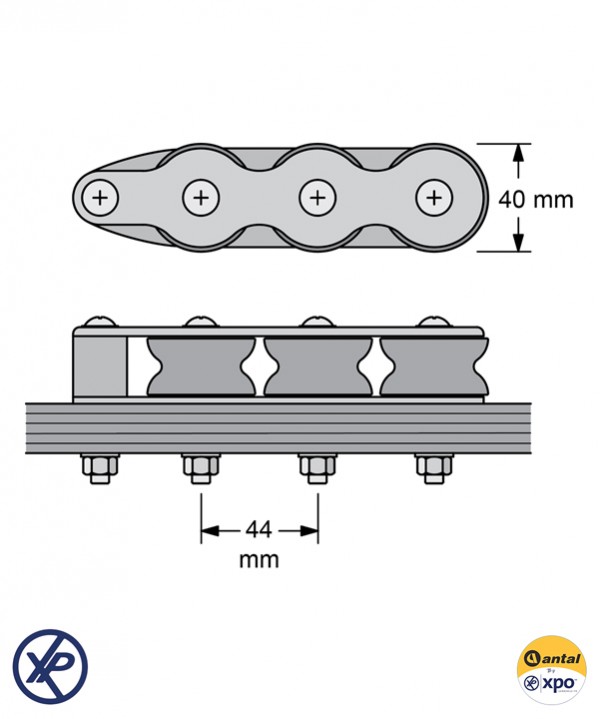

Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm. The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing.
The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main Composite Fibre bearing and 2 side ball bearings.
Mounting screws, nuts and washers are included.
These new organizers do not disassemble after tacking off the screws.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.
Data sheet
Specific References
D460 - Organizer - 6 Sheaves Ø40 - SWL=800Kg/Sheave - 7 screws M6- SWL BOÎTE 2400Kg
D760 - Organizer - 6 Sheaves Ø70 - SWL=3 200Kg/Sheave - 7 screws M12- SWL BOÎTE 9600Kg
D430 - Organizer - 3 Sheaves Ø40 - SWL=800Kg/Sheave - 4 screws M6- SWL BOÎTE 1200Kg
525.042 - Aluminium sheave box for V-grip plus - 5 sheaves - SWL=1000Kg
516.032 - Resin sheave box for V-cam 814 - 6 réas - SWL=500Kg
A2433P - 30mm triple deck organizer - black anodised aluminium
T630 - Organizer 3 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
A2423 - "Dynamic" triple 20mm deck organizer - black anodised aluminium
D420 - Organizer - 2 Sheaves Ø40 - SWL=800Kg/Sheave - 3 screws M6- SWL BOÎTE 800Kg
D550 - Organizer - 5 Sheaves Ø50 - SWL=1200Kg/Sheave - 6 screws M8- SWL BOÎTE 3000Kg
D520 - Organizer - 2 Sheaves Ø50 - SWL=1200Kg/Sheave - 3 screws M8- SWL BOÎTE 1200Kg
534.032 - Resin sheave box for V-grip - 4 sheaves - SWL=500Kg
D640 - Organizer - 4 Sheaves Ø60 - SWL=2200Kg/Sheave - 5 screws M10- SWL BOÎTE 4400Kg
D720 - Organizer - 2 Sheaves Ø70 - SWL=3 200Kg/Sheave - 3 screws M12- SWL BOÎTE 3200Kg
A2443P - 40mm triple deck organizer - black anodised aluminium
D630 - Organizer - 3 Sheaves Ø60 - SWL=2200Kg/Sheave - 4 screws M10- SWL BOÎTE 3300Kg
513.032 - Resin sheave box for V-cam 814 - 3 réas - SWL=500Kg
