Reference T630

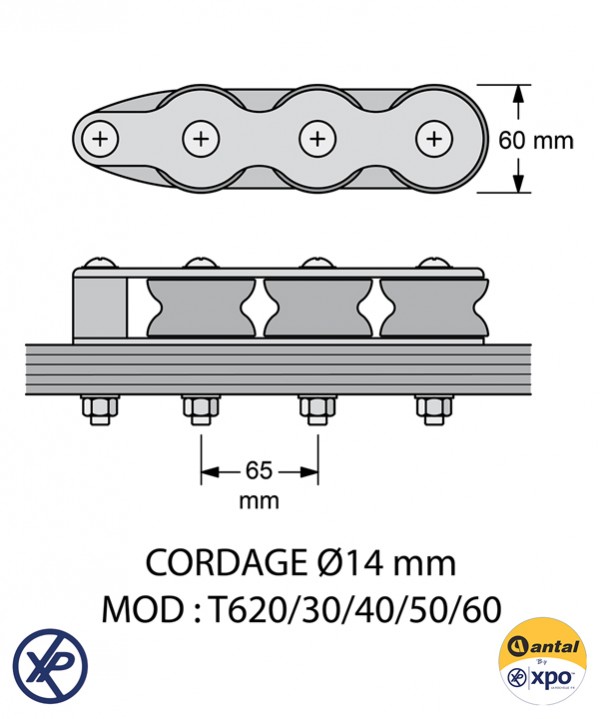

T630 - Organizer 3 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
With Tulip sheaves organizers can also be made.
Batteries from 2 to 6 sheaves are available, with diameters 45 and 60 mm. The 45 mm sheaves are in high resistance resin, with a "self-captive" double side ball bearing.
The 60 mm sheave, with an axial bearing in Composite Fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized
and Teflon-coated aluminium and can handle very high loads.
Mounting screws, nuts and washers are included.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.
Data sheet
T630 - Organizer 3 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
535.032 - Resin sheave box for V-grip - 5 sheaves - SWL=500Kg
533.032 - Resin sheave box for V-grip - 3 sheaves - SWL=500Kg
D640 - Organizer - 4 Sheaves Ø60 - SWL=2200Kg/Sheave - 5 screws M10- SWL BOÎTE 4400Kg
A2424P - Quadruple 20mm deck organizer - black anodised aluminium
D530 - Organizer - 3 Sheaves Ø50 - SWL=1200Kg/Sheave - 4 screws M8- SWL BOÎTE 1800Kg
D440 - Organizer - 4 Sheaves Ø40 - SWL=800Kg/Sheave - 5 screws M6- SWL BOÎTE 1600Kg
D550 - Organizer - 5 Sheaves Ø50 - SWL=1200Kg/Sheave - 6 screws M8- SWL BOÎTE 3000Kg
D740 - Organizer - 4 Sheaves Ø70 - SWL=3 200Kg/Sheave - 5 screws M12- SWL BOÎTE 6400Kg
526.052 - Aluminium sheave box for V-grip maxi - 6 sheaves - SWL=1000Kg
T620 - Organizer 2 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
T640 - Organizer 4 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
D430 - Organizer - 3 Sheaves Ø40 - SWL=800Kg/Sheave - 4 screws M6- SWL BOÎTE 1200Kg
A2424 - "Dynamic" quadruple 20mm deck organizer - black anodised aluminium

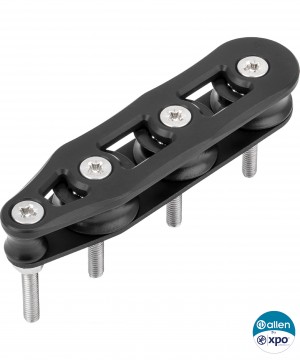

A2423 - "Dynamic" triple 20mm deck organizer - black anodised aluminium
