Reference T650

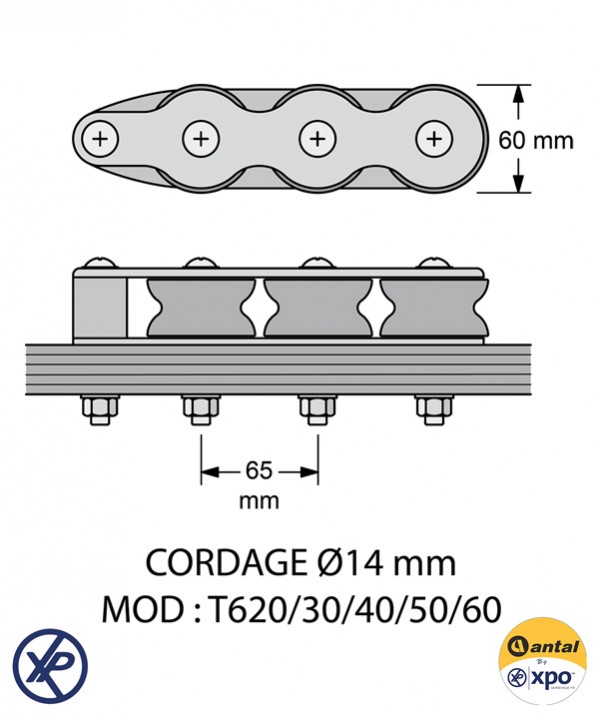

T650 - Organizer 5 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
With Tulip sheaves organizers can also be made.
Batteries from 2 to 6 sheaves are available, with diameters 45 and 60 mm. The 45 mm sheaves are in high resistance resin, with a "self-captive" double side ball bearing.
The 60 mm sheave, with an axial bearing in Composite Fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized
and Teflon-coated aluminium and can handle very high loads.
Mounting screws, nuts and washers are included.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.
Data sheet
T650 - Organizer 5 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
D550 - Organizer - 5 Sheaves Ø50 - SWL=1200Kg/Sheave - 6 screws M8- SWL BOÎTE 3000Kg
A2443P - 40mm triple deck organizer - black anodised aluminium
D450 - Organizer - 5 Sheaves Ø40 - SWL=800Kg/Sheave - 6 screws M6- SWL BOÎTE 2000Kg
515.032 - Resin sheave box for V-cam 814 - 5 réas - SWL=500Kg
526.042 - Aluminium sheave box for V-grip plus - 6 sheaves - SWL=1000Kg
523.042 - Aluminium sheave box for V-grip plus - 3 sheaves - SWL=1000Kg
D760 - Organizer - 6 Sheaves Ø70 - SWL=3 200Kg/Sheave - 7 screws M12- SWL BOÎTE 9600Kg
T560 - Organizer 6 Sheaves "Tulip" Ø45 - SWL=1000Kg - Rope Ø12mm
A2433 - Triple 30mm "Dynamic" deck organizer - black anodised aluminium
D640 - Organizer - 4 Sheaves Ø60 - SWL=2200Kg/Sheave - 5 screws M10- SWL BOÎTE 4400Kg
525.052 - Aluminium sheave box for V-grip maxi - 5 sheaves - SWL=1000Kg
513.032 - Resin sheave box for V-cam 814 - 3 réas - SWL=500Kg
A2424 - "Dynamic" quadruple 20mm deck organizer - black anodised aluminium
D560 - Organizer - 6 Sheaves Ø50 - SWL=1200Kg/Sheave - 7 screws M8- SWL BOÎTE 3600Kg
D520 - Organizer - 2 Sheaves Ø50 - SWL=1200Kg/Sheave - 3 screws M8- SWL BOÎTE 1200Kg
D460 - Organizer - 6 Sheaves Ø40 - SWL=800Kg/Sheave - 7 screws M6- SWL BOÎTE 2400Kg
