Reference D560

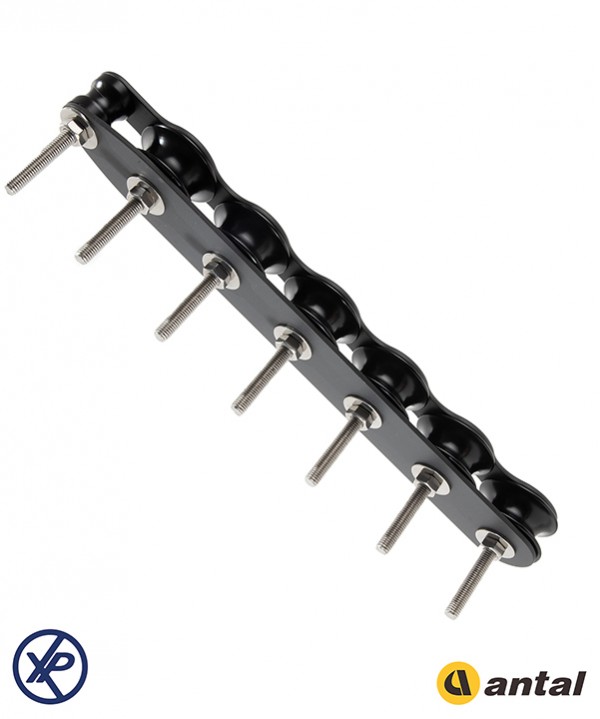

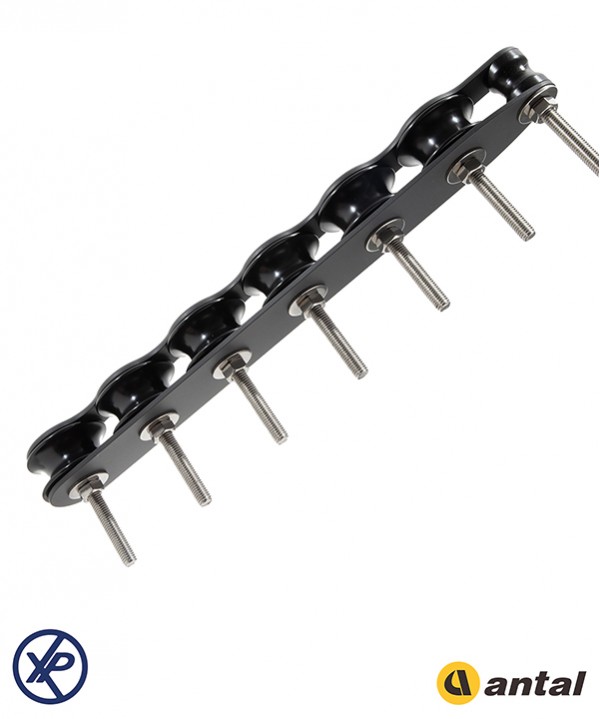

D560 - Organizer - 6 Sheaves Ø50 - SWL=1200Kg/Sheave - 7 screws M8- SWL BOÎTE 3600Kg

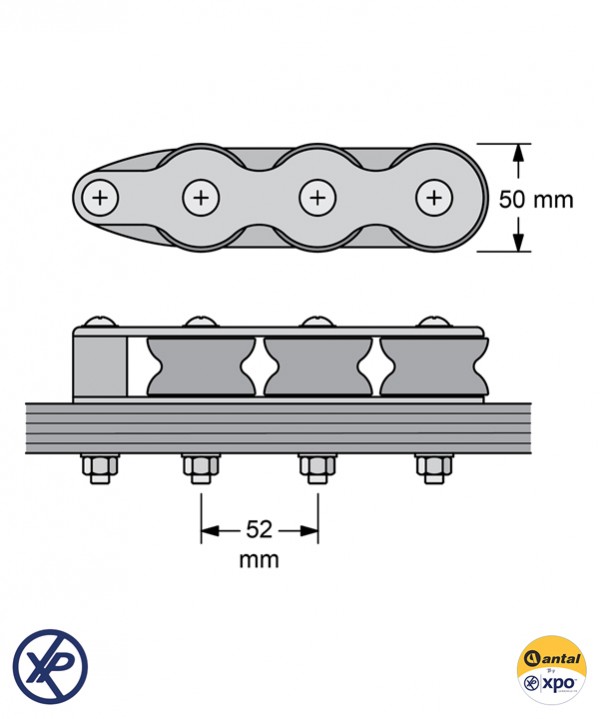

Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm. The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing.
The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main Composite Fibre bearing and 2 side ball bearings.
Mounting screws, nuts and washers are included.
These new organizers do not disassemble after tacking off the screws.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.
Data sheet
Specific References
D560 - Organizer - 6 Sheaves Ø50 - SWL=1200Kg/Sheave - 7 screws M8- SWL BOÎTE 3600Kg
525.042 - Aluminium sheave box for V-grip plus - 5 sheaves - SWL=1000Kg
517.032 - Resin sheave box for V-cam 814 - 7 réas - SWL=500Kg
T540 - Organizer 4 Sheaves "Tulip" Ø45 - SWL=1000Kg - Rope Ø12mm
514.032 - Resin sheave box for V-cam 814 - 4 réas - SWL=500Kg
D740 - Organizer - 4 Sheaves Ø70 - SWL=3 200Kg/Sheave - 5 screws M12- SWL BOÎTE 6400Kg
D730 - Organizer - 3 Sheaves Ø70 - SWL=3 200Kg/Sheave - 4 screws M12- SWL BOÎTE 4800Kg
A2443P - 40mm triple deck organizer - black anodised aluminium
D720 - Organizer - 2 Sheaves Ø70 - SWL=3 200Kg/Sheave - 3 screws M12- SWL BOÎTE 3200Kg

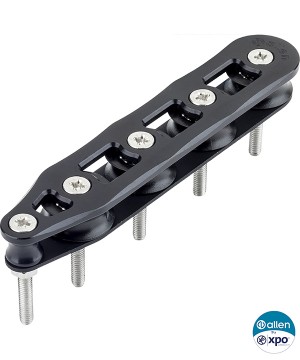

A2424 - "Dynamic" quadruple 20mm deck organizer - black anodised aluminium
