TULIP BLOCK Ø45X31MM

Reference 801.045

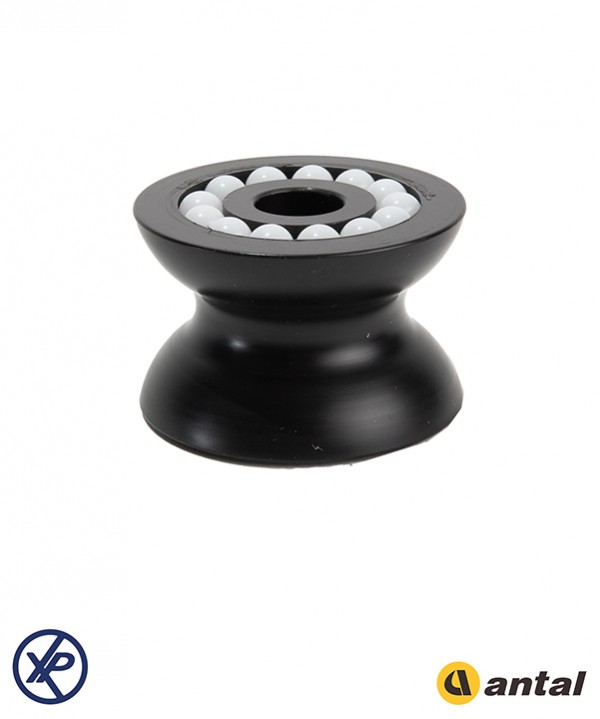

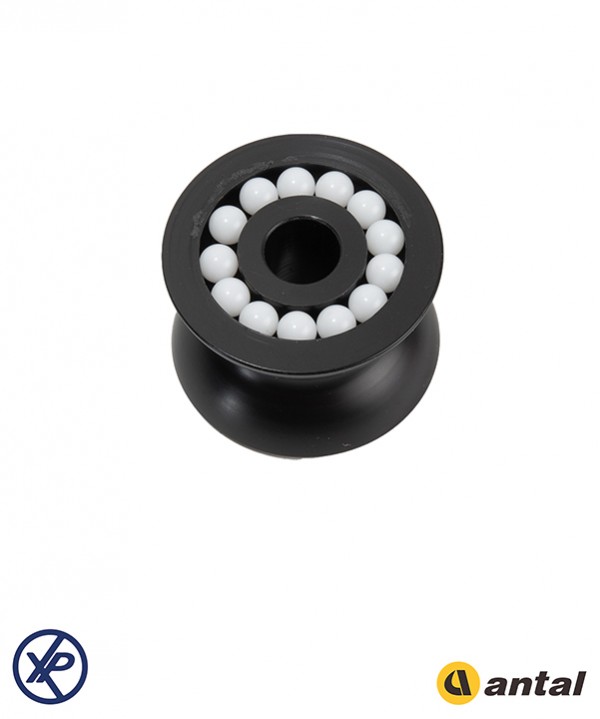

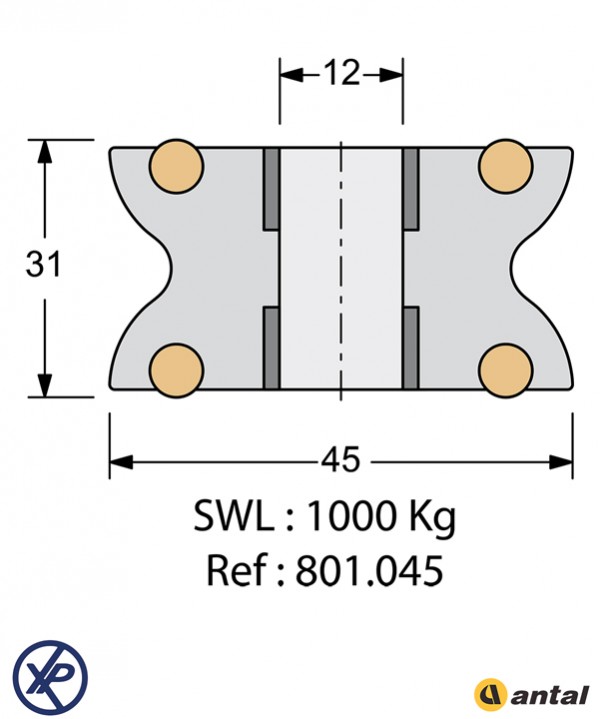

801.045 - "Tulip" composite fibre sheave - Ø45X31- High-strength resin SWL=1000Kg

€75.24
Prix public TTC conseillé
Tax included
Quantity

favorite Add to wishlist

You must be logged

TULIP SERIES SHEAVES
The Tulip sheaves are fixed sheaves that do not turn in the direction of manoeuvres since they accept quite different lead angles. The choice of a Tulip sheave instead of a revolving block comes from the need to reduce bulk and weight.
The sheave, with an axial bearing in Composite Fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon coated aluminium and can handle very high loads.

801.045

Data sheet

Fitting type
Réa tulip
Rope diameter ( mm )
12
Nber of sheaves
1
Weight ( g )
40
Sheave diameter ( mm )
45
Sheave Type
Tulip
Matière billes latérales
Delrin
Safe Working Load ( Kg )
1000
Sheave material
Resin
