TULIP BLOCK Ø110X60MM

Reference 801.110

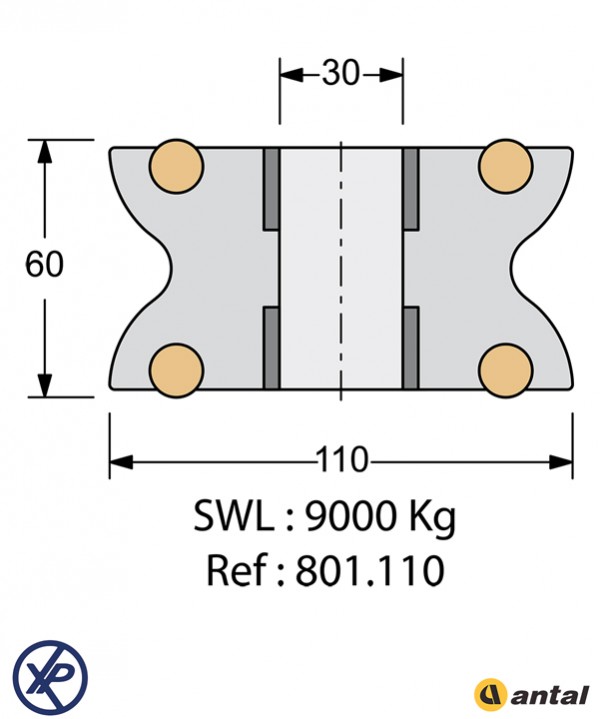

801.110 - "Tulip" composite fibre sheave - Ø110X60 - SWL=9000 kg

€451.68
Prix public TTC conseillé
Tax included
Quantity

favorite Add to wishlist

You must be logged

TULIP SERIES SHEAVES

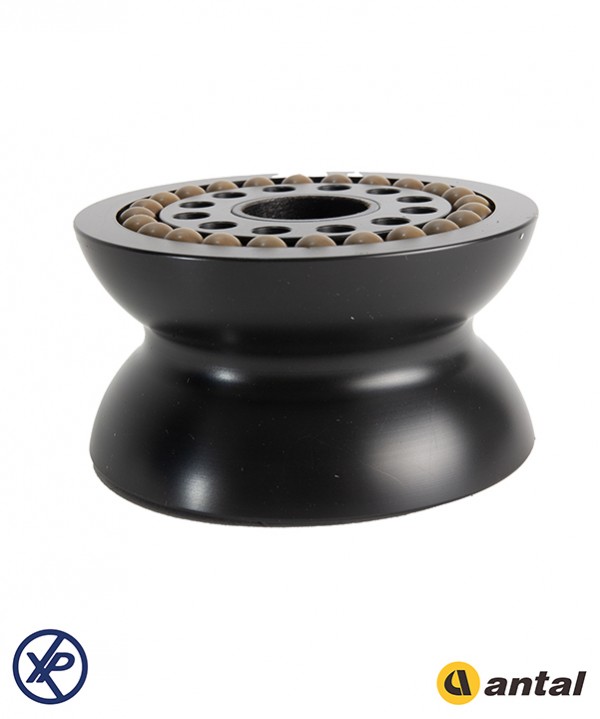

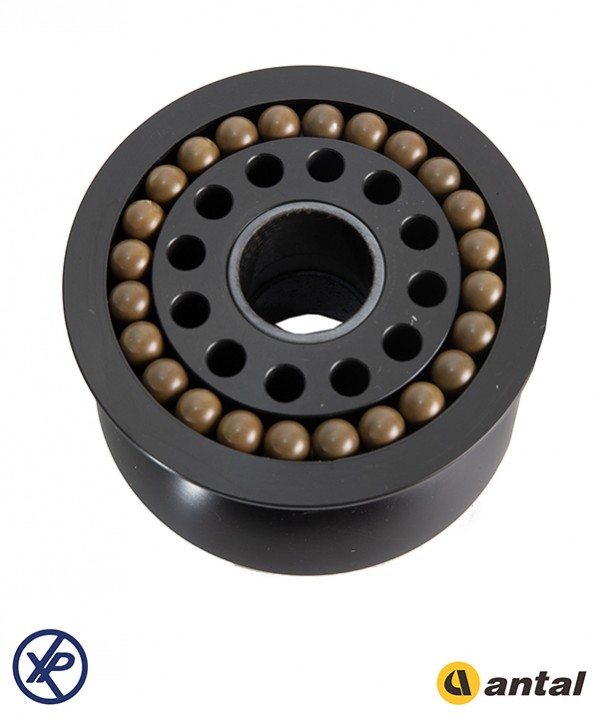

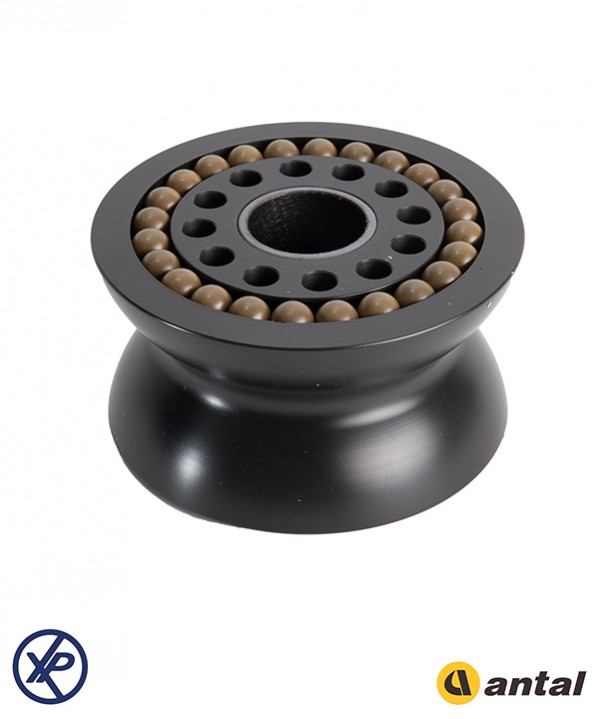

The Tulip sheaves are fixed sheaves that do not turn in the direction of manoeuvres since they accept quite different lead angles. The choice of a Tulip sheave instead of a revolving block comes from the need to reduce bulk and weight.
The sheave, with an axial bearing in Composite Fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon coated aluminium and can handle very high loads.

801.110

Data sheet

Fitting type
Réa tulip
Rope diameter ( mm )
16
Nber of sheaves
1
Weight ( g )
830
Sheave diameter ( mm )
110
Sheave Type
Tulip
Matière billes latérales
Torlon
Safe Working Load ( Kg )
9000
Sheave material
Resin
