TULIP BLOCK Ø70X38MM

Reference 801.071

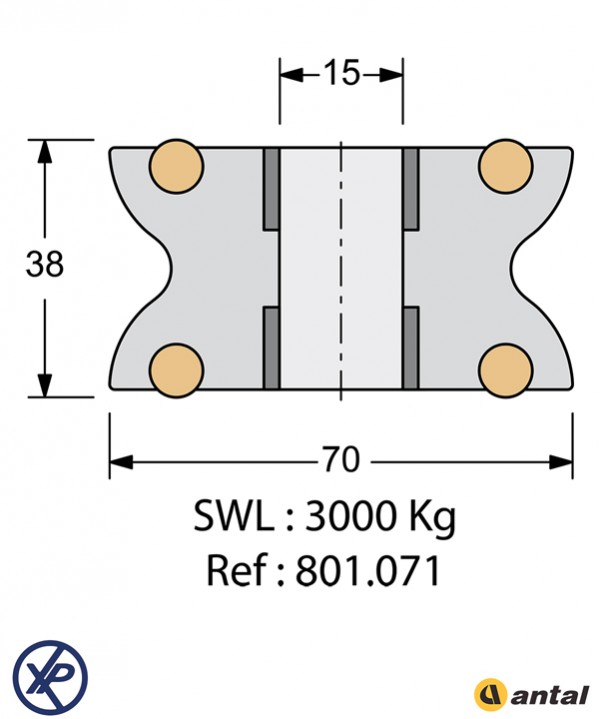

801.071- Reinforced composite fibre "Tulip" sheave - Ø70X38 - SWL=3000 kg

€226.80
Prix public TTC conseillé
Tax included
Quantity

favorite Add to wishlist

You must be logged

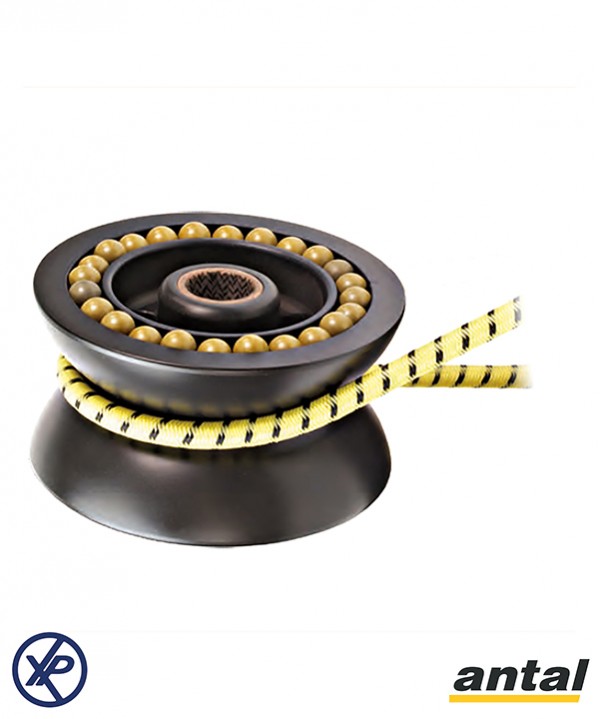

TULIP SERIES SHEAVES
The Tulip sheaves are fixed sheaves that do not turn in the direction of manoeuvres since they accept quite different lead angles. The choice of a Tulip sheave instead of a revolving block comes from the need to reduce bulk and weight.
The sheave, with an axial bearing in Composite Fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon coated aluminium and can handle very high loads.

801.071

Data sheet

Fitting type
Réa tulip
Rope diameter ( mm )
14
Nber of sheaves
1
Weight ( g )
190
Sheave diameter ( mm )
70
Sheave Type
Tulip
Matière billes latérales
Torlon
Safe Working Load ( Kg )
3000
Sheave material
Resin
