Reference T540

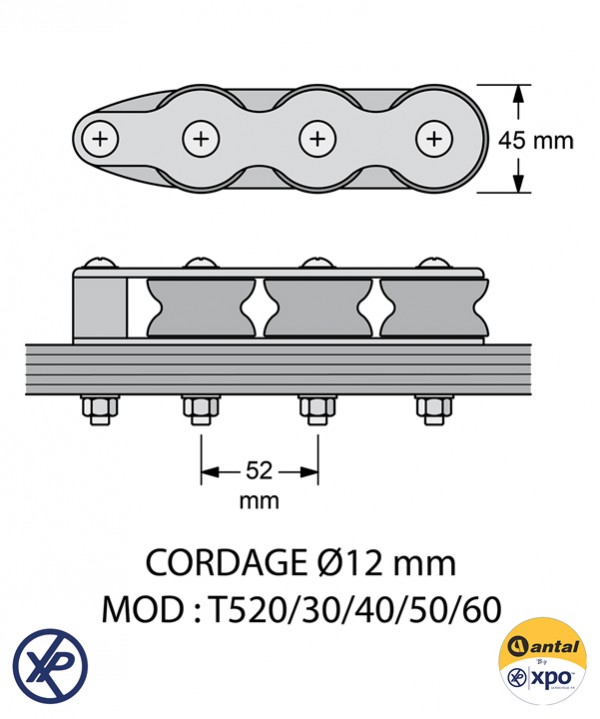

T540 - Organizer 4 Sheaves "Tulip" Ø45 - SWL=1000Kg - Rope Ø12mm
With Tulip sheaves organizers can also be made.
Batteries from 2 to 6 sheaves are available, with diameters 45 and 60 mm. The 45 mm sheaves are in high resistance resin, with a "self-captive" double side ball bearing.
The 60 mm sheave, with an axial bearing in Composite Fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized
and Teflon-coated aluminium and can handle very high loads.
Mounting screws, nuts and washers are included.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.
Data sheet
