20MM QUADRUPLE DECK ORGANIZER

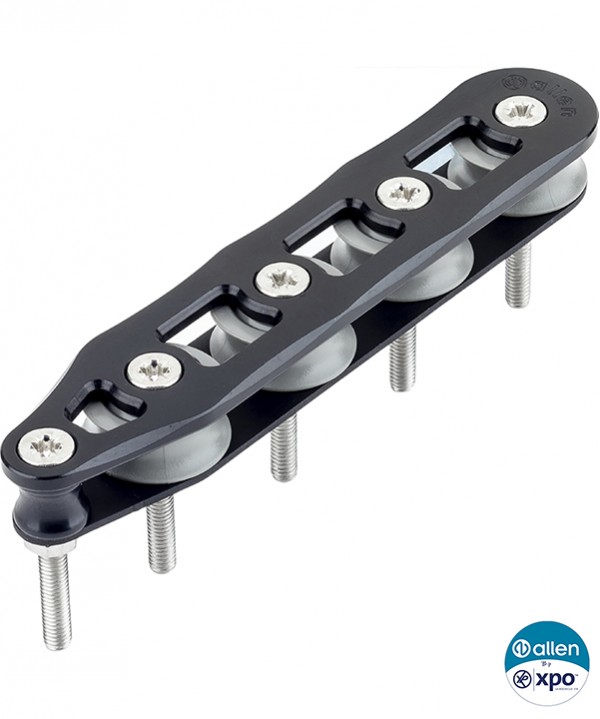

Plain Bearing 20mm quadruple Deck Organiser

The Plain Bearing 20mm quadruple Deck Organiser is designed to lead control lines and halyards efficiently along the deck or coachroof, ensuring clean and organised line runs on board.

Manufactured with black anodised, marine-grade aluminium cheeks, it provides strength, corrosion resistance, and long-term durability in demanding marine environments. Supplied complete with four bolts, nuts, and washers for straightforward installation.

The central non-sheave column can be used as a becket, adding further versatility. Units can be easily stacked to create a double-height deck organiser. When stacked, the upper organiser is rated to two-thirds of the maximum working and breaking load.

Plain Bearing Technology (PB)

PB stands for Plain Bearing. The plain bearing sheaves are designed to provide strong static load capability while remaining lightweight and cost-effective. They are the ideal solution for control systems that are not continuously adjusted or subject to high-speed running.

Manufactured using recycled materials, the PB version features a grey sheave for clear visual differentiation from the Dynamic Bearing models.

The PB deck organiser range is rated on the basis of a 30° deflection angle around the sheave. At 30°, the load factor represents 50% of the applied line load.

Key Features

Four plain bearing sheaves

Lightweight construction

Easy to install

Stackable configuration

Suitable for boats up to 28ft

Clean, modern design

Typical Applications

Leading halyards aft along the coachroof to clutches, cleats, and winches

Diverting control lines around corners, above or below deck

Under-deck take-up systems

Redirecting halyards, sheets, or control lines to achieve the correct lead angle into a winch or cleat

A practical and reliable deck organiser designed for efficient line management on cruising yachts, sportsboats, and dinghies.
