Reference D440

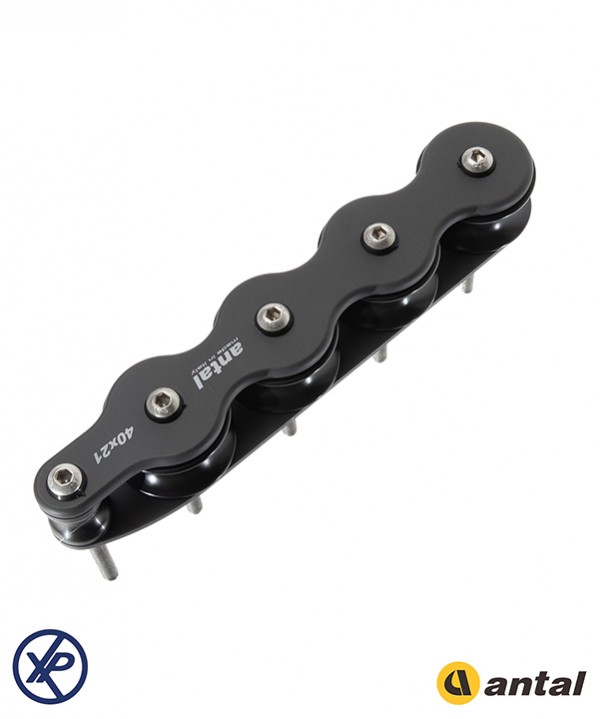

D440 - Organizer - 4 Sheaves Ø40 - SWL=800Kg/Sheave - 5 screws M6- SWL BOÎTE 1600Kg
Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm. The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing.
The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main Composite Fibre bearing and 2 side ball bearings.
Mounting screws, nuts and washers are included.
These new organizers do not disassemble after tacking off the screws.
SHEAVE SWL
The maximum Safe Working Load on the single sheave.
ORGANIZER SWL
The maximum Safe Working Load on the organizer.
Data sheet
Specific References
D440 - Organizer - 4 Sheaves Ø40 - SWL=800Kg/Sheave - 5 screws M6- SWL BOÎTE 1600Kg
D620 - Organizer - 2 Sheaves Ø60 - SWL=2200Kg/Sheave - 3 screws M10- SWL BOÎTE 2200Kg
A2433 - Triple 30mm "Dynamic" deck organizer - black anodised aluminium
T640 - Organizer 4 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
D640 - Organizer - 4 Sheaves Ø60 - SWL=2200Kg/Sheave - 5 screws M10- SWL BOÎTE 4400Kg
T540 - Organizer 4 Sheaves "Tulip" Ø45 - SWL=1000Kg - Rope Ø12mm
526.052 - Aluminium sheave box for V-grip maxi - 6 sheaves - SWL=1000Kg
D530 - Organizer - 3 Sheaves Ø50 - SWL=1200Kg/Sheave - 4 screws M8- SWL BOÎTE 1800Kg
T650 - Organizer 5 Sheaves "Tulip" Ø60 - SWL=2200Kg - Rope Ø14mm
T550 - Organizer 5 Sheaves "Tulip" Ø45 - SWL=1000Kg - Rope Ø12mm
522.031- Boîte à réa en résine pour V-cam 611 double et triple
D560 - Organizer - 6 Sheaves Ø50 - SWL=1200Kg/Sheave - 7 screws M8- SWL BOÎTE 3600Kg
A2424P - Quadruple 20mm deck organizer - black anodised aluminium
536.032 - Resin sheave box for V-grip - 6 sheaves - SWL=500Kg
516.032 - Resin sheave box for V-cam 814 - 6 réas - SWL=500Kg
D730 - Organizer - 3 Sheaves Ø70 - SWL=3 200Kg/Sheave - 4 screws M12- SWL BOÎTE 4800Kg
D550 - Organizer - 5 Sheaves Ø50 - SWL=1200Kg/Sheave - 6 screws M8- SWL BOÎTE 3000Kg
