Reference 08019_R

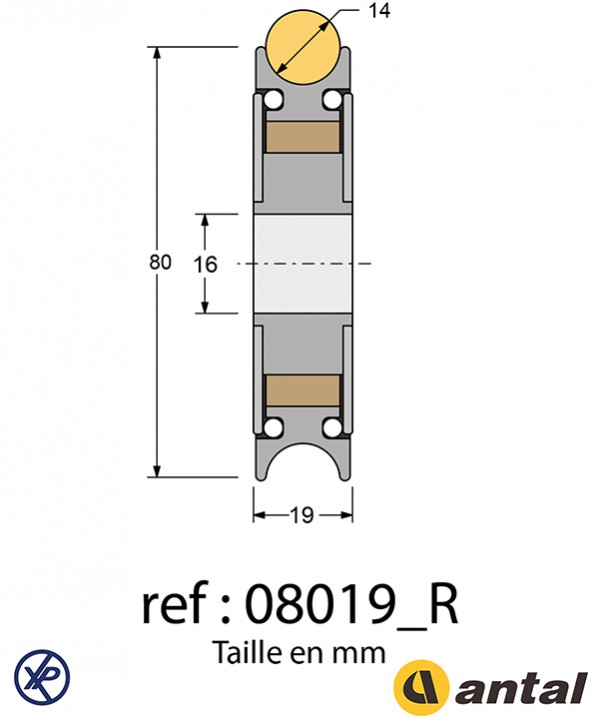

08019_R - Ø80 mm resin roller sheave for LOOPER block - SWL = 1600 kg / MWL = 2000 kg

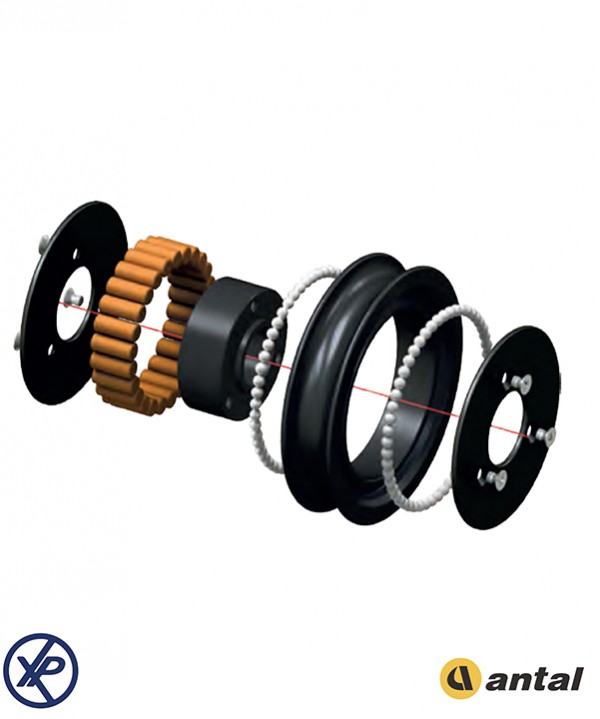

ROLLER BEARING SHEAVES

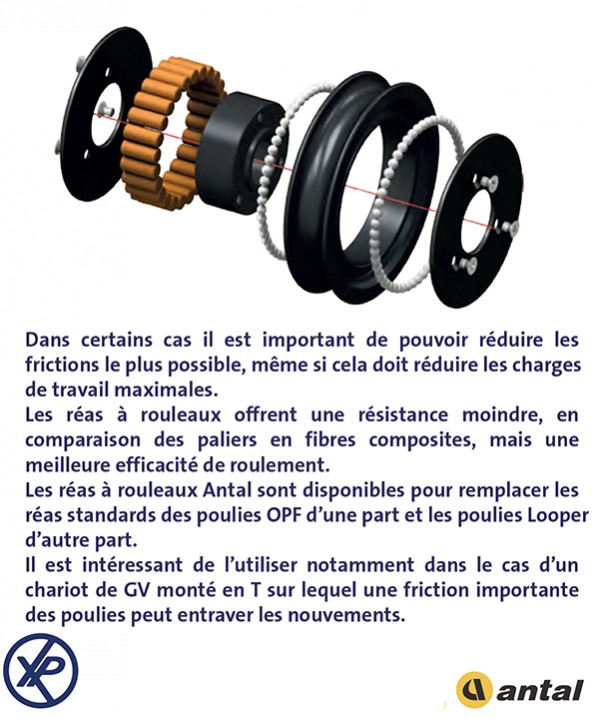

In some cases, it is important to reduce the friction of the blocks as much as possible, even if this leads to a reduction in the maximum loads. When compared with the Composite Fibre bushing version, the roller bearing shaves offer a lower resistance but a greater smoothness.
Antal offers a range of roller sheaves, which can replace the traditional sheaves on the OPF series blocks, and a range for the Looper series. The main characteristics of these sheaves are described in
the following tables.
Data sheet
08019_R - Ø80 mm resin roller sheave for LOOPER block - SWL = 1600 kg / MWL = 2000 kg
LS1080 - Simple LOOPER block with loop - Type OPF Ø80x14mm - SWL=2200Kg.
LS1081 - Simple LOOPER block with becket and loop - Type OPF Ø80x14mm - SWL=2200Kg.
LS1082 - Poulie LOOPER double avec loop - Type OPF Ø80x14mm - SWL=2200Kg.
LS1083 - Double LOOPER block with becket and loop - Type OPF Ø80x14mm - SWL=2200Kg.
10121_R - Resin roller sheave Ø100 mm for LOOPER block - SWL = 2400 kg / MWL = 3200 kg
801.045 - "Tulip" composite fibre sheave - Ø45X31- High-strength resin SWL=1000Kg
10021_R - Resin roller sheave Ø100 mm for OPF block - SWL = 2400 kg / MWL = 3200 kg
07016_F - Resin ball sheave Ø70 mm for OPF block - SWL = 1300 kg
